| Horsepower: | 120 |
|---|---|
| Tank Volume: | 7cubic |
| Fuel Type: | Diesel |
| Condition: | New |
| Transmission Type: | Manual |
| Gross Vehicle Weight: | 4505 |
| Model Number: | JDF5090GXW |
| Brand Name: | Jiangte |
| Place of Origin: | China (Mainland) |
| Dimension (L x W x H): | 6700x2320x2550 |
| Emission Standard: | Euro 3 |
| chassis model: | EQ1090T9ADJ3AC |
Quick Details
Specifications

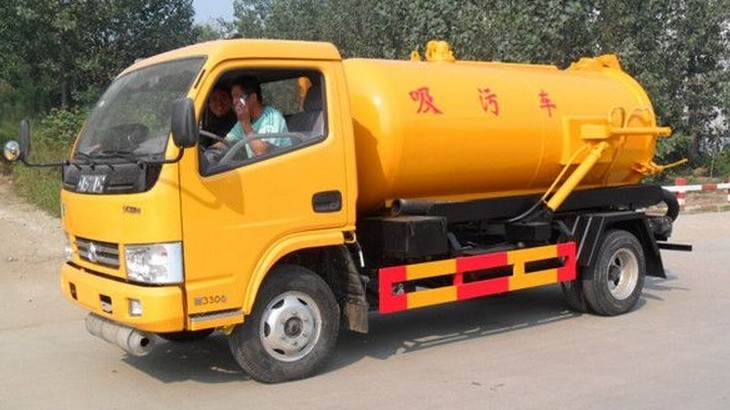

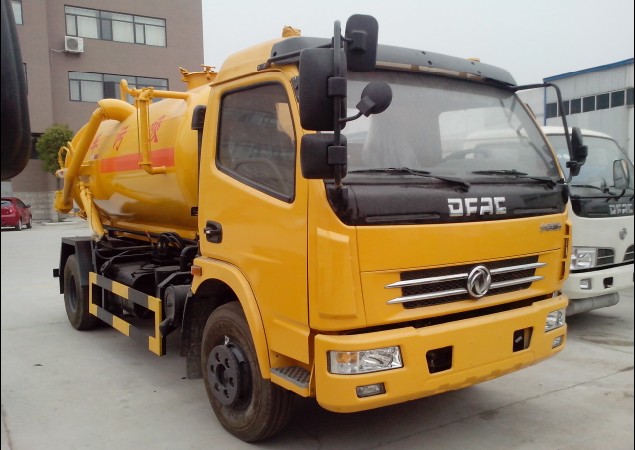

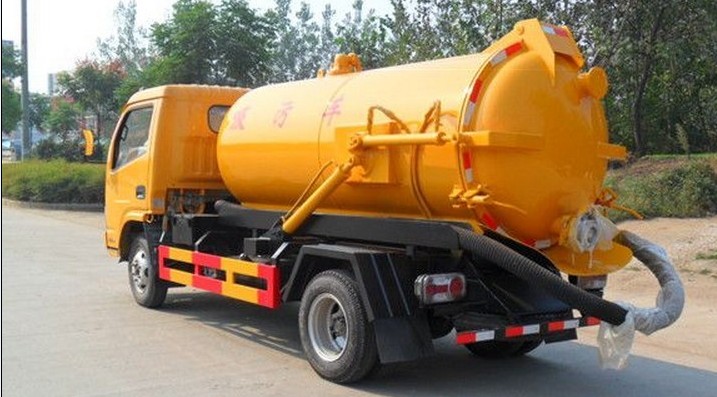

2017 new JDF5090GXW vacuum suction washer truck with 7cbm sewage tank
Vacuum Sewage Suction Truck Main Parameters(7CBM)
Vehicle Model
JDF5090GXW
Chassis Model
EQ1090T9ADJ3AC
Weight(kg)Rated Weight4700
Overall Size(mm)6700x2320x2550
Curb Weight4505
Van Size(mm)
/
GVW9400
Wheelbase (mm)
3800
EngineModel:CY4102-E3C
Fuel Type:Diesel
Power/Displacement(KW/ML):91/3856
Manufactory:Dongfeng Chaoyang Diesel Co.,Ltd
Performance Parameters
Max Speed(km/h):90
Wheel Trace(mm)
Front1831
Max Gradeability(%)30
Rear1640
Fuel Consumption(100km/L)13
Wheel Suspension (mm)
Front1180
Empty in slope(%)20
Rear1720
Min Turning Radius(m)14
Angle(°)Approach Angle22
Min ground clearance(mm)176
Departure Angle
12
Special Function
Tank Capacity(L)
6000L
Tank Size(mm)
/
Vacuum Pump Model
XD-30
Rotation Speed
500-600r/min
Max Vacuum Degree
93-96KPa
Suction Height
≥7-20m
Suction time
≤3min
Lifting Time
≤10s
Alarm mode: electronic alarm. Enough sludge vacuum; 2. Vacuum pump set two protection to prevent dirt infiltration pump body; 3. Vacuum pump driven by manual operation, convenient clutch; hydraulic oil pump and vacuum pump synchronized action, reliable work; 5. Use hydraulic turning cans and open the door dumping; beautiful appearance, easy operation, good performance.
Others
Cabin with air-conditioner, color as customer required. Mainly yellow, white;
Free part
4 x sets brakes pads;1x sets brake shoes;3x Oil Filter;3 x air filter;3xdiesel filter,1 x shocks; one set of hydraulic pipes.
30% TT for down payment,70% TT balance before delivering toChinaport
about 15 working days after order(delivery time according the latest sail schedule )
