| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Voltage: | 380v |
| Brand Name: | Satle |
| Condition: | New |
| Certification: | ISO9001 |
| Weight: | 953kg/set |
| Dimension(L*W*H): | 1.3m*1.82*1.26m |
| Power(W): | 22kw |
| Model Number: | LZ550 |
| Place of Origin: | China (Mainland) |
| Outlet Diameter: | 2.0mm |
| Inlet Diameter: | 6.5mm |
| Drawing material: | Steel wire,copper wire,aluminum wire |
| Material of the capstan: | Steel coated tungsten carbide |
| Warranty of the capstan: | 2years |
| Switch: | Foot switch |
| Operator needed: | One |
| Quality: | Top grade |
| Motor: | Inverted motor |
| Control systerm: | PLC |
| Drive mode: | Gear box |
| Cooling systerm: | Narrow slit water cooling |
Quick Details
Specifications
Factory Supply Copper Wire Steel Wire Straight Line Wire Drawing Machine
Framework:14# B style U steel

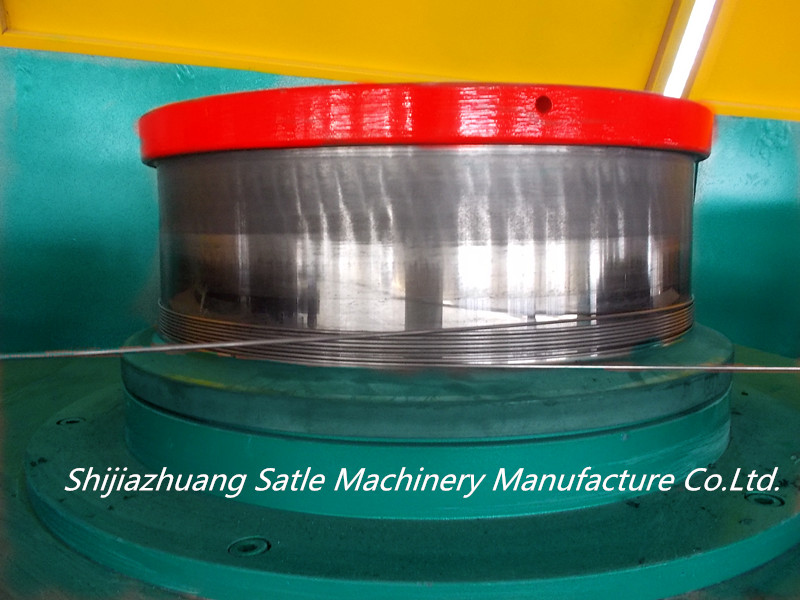

Capstan: ZG45# steel, coated tungsten carbide, HRC60. Capstan running time
More than 26000 hours. the height of the capstan is 280mm. the height of
Spraying tungsten carbide is 80mm and the thickness is 2mm. the temperature of
the capstan< 80. Roughness <0.8mm.There are operation buttons in
Front of each capstan.
Cooling type: narrow slit water cooling. Water proof and anticorrosive
Treatment.
Die box:Welding part is adopted for the die box. the guide roller is in front of
Die box and coated with tungsten carbide. the die box is divided into
Lubrication cavity and cooling cavity. Ball valve adjusts water feeding flow.
the position of die box can be adjusted to adapt the position of wire for
Drawing. the dancer arm wheel is in the entry of die box to adjust the drawing
Speed of every drawing block. It is driven by pneumatic cylinder. Tension
Roller is made of special steel alloy and heat treated to have long working
Life.
the wire tension is detected by the TE sensor(none touch type) dynamically and
Feedback signal to the motor driver.

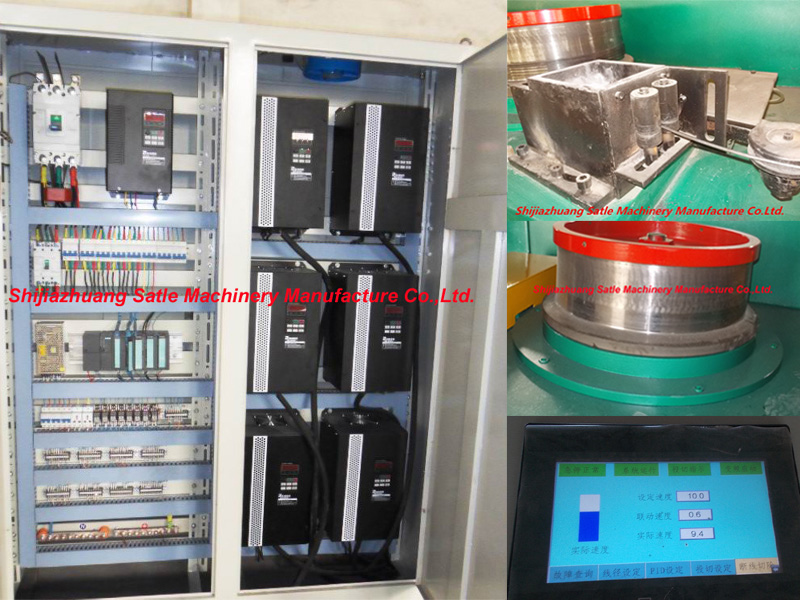

PLC:SIEMENS S7-300 made in Germany
Operation:Including touch screen, emergency button ready button, stop button, Accelerate button, decelerate button, fault button and reset button. Touch Screen is colorful and the brand is Weinview. the yield can be presented on the screen by the meter-counter or weight-counter. the drawing speed can be Adjusted on the screen.
Model |
350 |
400 |
550 |
600 |
Inlet Wire Dia.(mm) |
3.5 |
4.2 |
6.5 |
8 |
Outlet Wire Dia. (mm) |
0.6 |
0.8 |
1.4 |
1.6 |
Motor Power(KW) |
5.5-11 |
7.5-15 |
18.5-22 |
22-37 |
No. of drafts |
8-12 |
8-12 |
8-12 |
6-10 |
