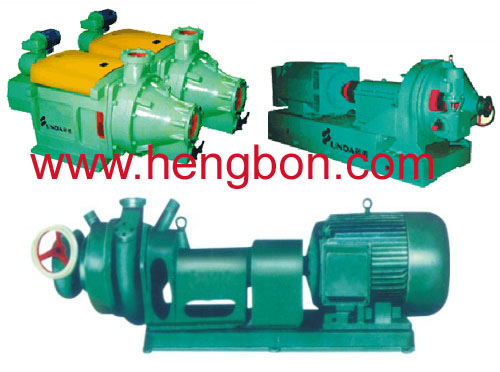

ZDP-380 DD Refiner

1.Continuously pulp beating

2.Widely used

3. Suitable for various pulp bearing requirement

Technical parameters:

1.Model: ZDP-380

2.Diameter of disc plate: φ380

3.Rotary speed of disc plate:980 rpm

4.Capacity:6-25 T/D

5.Inflow pressure:0.15-0.25Mpa

6.Pulp consistency:2-4%

7.Diameter of inlet: 65*2

8.Diameter of outlet: 80

9.Motor power:37KW KAIYUAN

10.Type of pulp inflow: Pumping

11.Pressure type: Manual

12.Qty. of disc plate: 4 pcs

Material description:

1.Material of main body is CI or carbon steel.

2.Material of blade is low nickel alloy.

3.Main shaft:40Cr quenching and tempering.

4.Bearing: ZWZ, HRB, LYC
