| After-sales Service Provided: | No overseas service provided |
|---|---|
| Warranty: | one year |
| Voltage: | 380V/50HZ |
| Brand Name: | FOMACHI |
| Condition: | New |
| Certification: | CE |
| Dimension(L*W*H): | 1660*2600*2400 MM |
| Weight: | 2080 KG |
| Power(W): | 3.5 KW |
| Power Source: | Gas |
| Type: | Deck Baking Oven |
| Usage: | Bread |
| Model Number: | FMX-RF32G |
| Place of Origin: | China (Mainland) |
| Energy: | LPG gas |
| Gas pressure: | 2800 PA |
| Capacity: | 32 trays |
| Tray size: | 400*600 mm |
| Material: | all stainless steel |
| Gas burner: | Olympia burner or RIELLO burner |
| Feature: | Steam generating system |
| Function: | Bakery Pastry |
| Certification: | CE |
Quick Details
Specifications
Commercial Rotary Rack Oven 32 Trays Gas Rotary RackSpray Function Bread Bakery Oven FMX-RF32G Made in FOMACHI COMPANY.

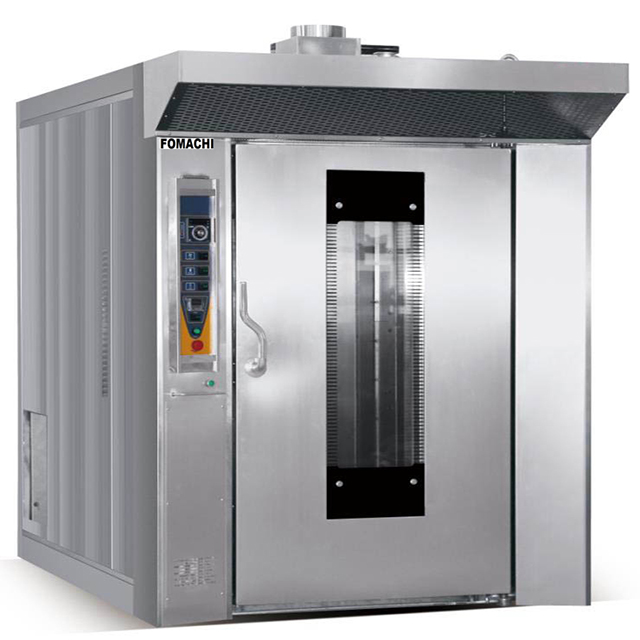

32 Trays Gas Rotary Rack Oven
Model Number: FMX-RF32G
Energy: LPG or Natural Gas
Power: 3.5 KW
Voltage: 380V/50HZ
Tray Size: 400*600 MM
Size: 1660*2600*2400 MM
Net Weight: 2080 KG
Feature of rotary rack oven:
1. Large baking capacity, one time can baking 32 trays.
2. All stainless steel, the adjustable air exit using the 2mm thickness stainless steel to sure the air exit hardness and baking more even.
3. Using the 30 years brand motor, quality assurance, imported Japan burner(gas or diesel),burn more fully, low burnup.
4. the air exit have 3 ways 7 segment to adjust, more easy to adjust the baking effect.
5. Only a humanized design in China, with lights alarm system, especially when there are many rotary oven, more clearly distinguish which one is baking finish.
6. Wide baking range: pie, mooncake, normal bread, toast, hamburger,cake, biscuit, frech baguette, etc.
Specification of rotary rack oven:

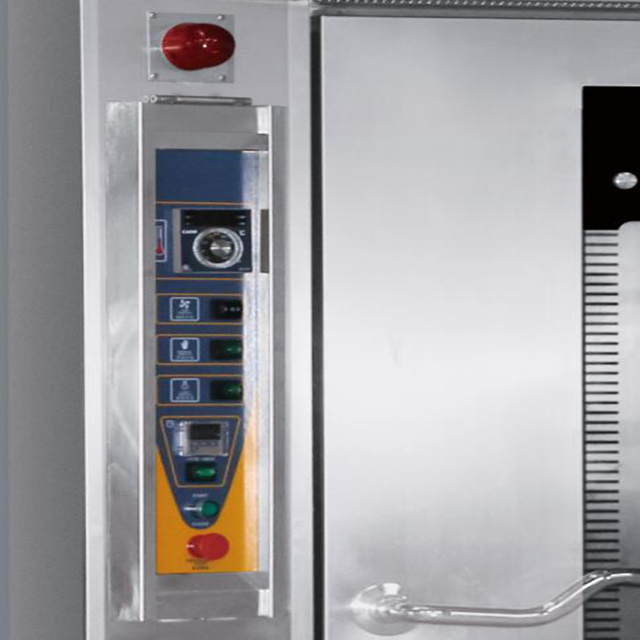

the mechanical control panel of gas rotary rack oven:

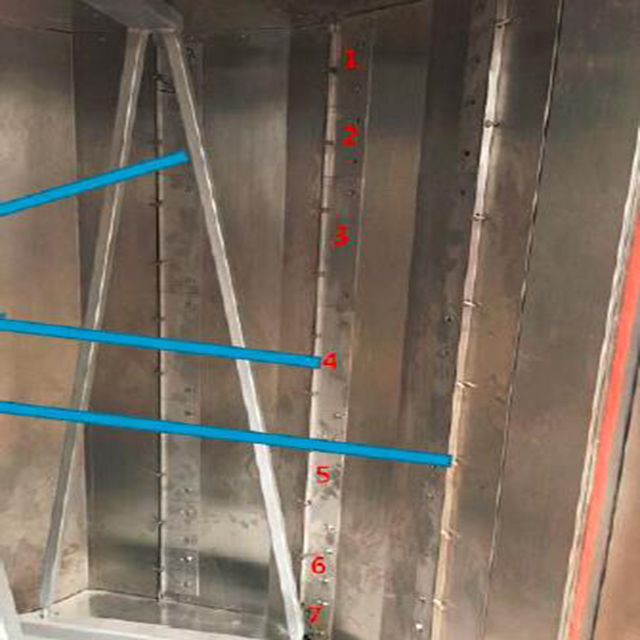

the hot air outlet in the chamber side of gas rotary rack oven, it would keep the heat evenly when bakery food.

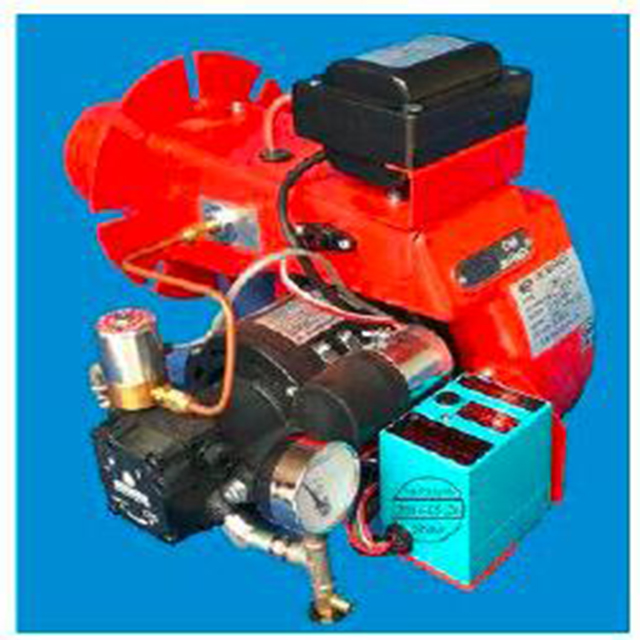

the Riello Burner imported from Italy for gas rotary rack oven:

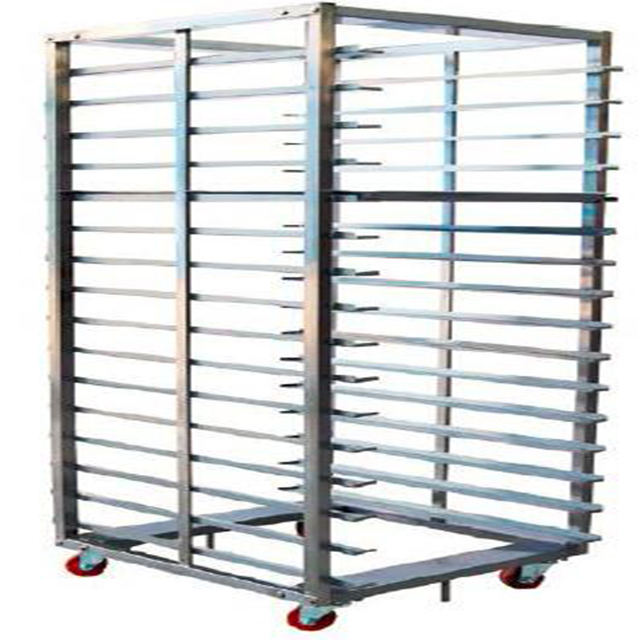

High temperature resistance trolley carts for gas rotary rack oven:

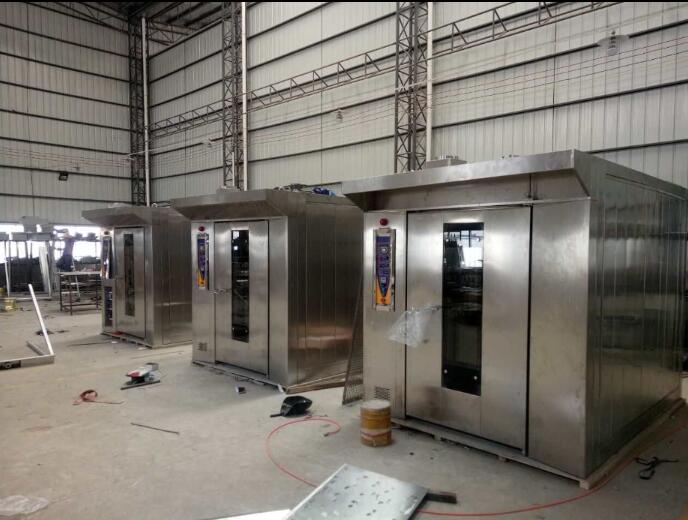

the assemble line for rotary rack oven:
32 Trays Gas Rotary Rack Oven
Model Number: FMX-RF32G
Energy: LPG or Natural Gas
Power: 3.5 KW
Voltage: 380V/50HZ
Tray Size: 400*600 MM
Size: 1660*2600*2400 MM
Net Weight: 2080 KG
Feature of rotary rack oven:
1. Large baking capacity, one time can baking 32 trays.
2. All stainless steel, the adjustable air exit using the 2mm thickness stainless steel to sure the air exit hardness and baking more even.
3. Using the 30 years brand motor, quality assurance, imported Japan burner(gas or diesel),burn more fully, low burnup.
4. the air exit have 3 ways 7 segment to adjust, more easy to adjust the baking effect.
5. Only a humanized design in China, with lights alarm system, especially when there are many rotary oven, more clearly distinguish which one is baking finish.
6. Wide baking range: pie, mooncake, normal bread, toast, hamburger,cake, biscuit, frech baguette, etc.
Specification of rotary rack oven:
Model |
FMX-RF16E |
FMX-RF16G |
FMX-RF16O |
FMX-RF32G |
FMX-RF32O |
Energy |
Electric |
Gas |
Diesel |
Gas |
Diesel |
Power |
27 KW |
2 KW |
2 KW |
3.5 KW |
3.5 KW |
Tray Size |
400x600MM |
400x600MM |
400x600MM |
400x600MM |
400x600MM |
Size |
1400x2285x2400MM |
1400x2285x2400MM |
1400x2285x2400MM |
1660x2600x2400MM |
1660x2600x2400MM |
the mechanical control panel of gas rotary rack oven:
the hot air outlet in the chamber side of gas rotary rack oven, it would keep the heat evenly when bakery food.
the Riello Burner imported from Italy for gas rotary rack oven:
High temperature resistance trolley carts for gas rotary rack oven:
the assemble line for rotary rack oven:
Fomachi Co.'s Main Advantage:
1. Our professional experienced Team would offer the perfect solution to help you solve your problem.
2. Quality certificated kitchen Equipment bring the top secure and high quality to you in your kitchen.
3. Customization kitchen project Is available, please contact us and offer the details, our professional Engineers would offer the suitable solution to you.
4. We have professional shipping Team to arrange the international shipment and express for the goods.
Fomachi Co.'s Service:
FAQ:
1. Which payment terms are Acceptable?
30% deposit before production and 70% balance before Shipment by T/T(Telegraphic Transfer)/Western Union.
2. What is the delivery time?
It depends on the quantity of the order and our stock. If the product in stock, it would take 5~7 days to preparation. Normally, there is Not stock, it would take around 15~35 days to preparation.
3. how about is the warranty?
We guarantee all of our goods the warranty for one year.
