the following example is for you reference.

Characteristics:

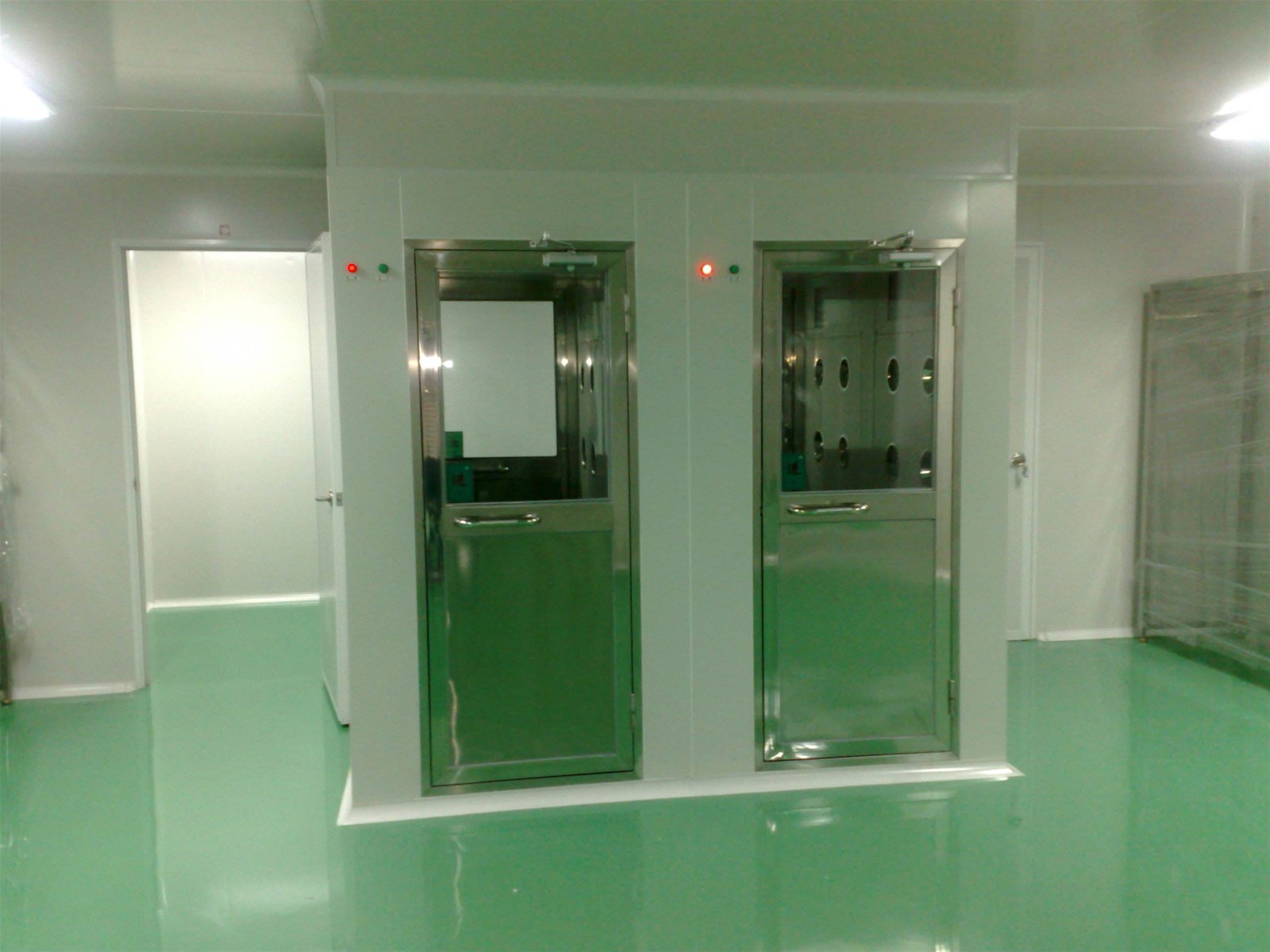

this is a kind of local purifying equipment, fixed on the partition between clean room and unclean room. It is used for shower and removing dust when personnel or objects entering into clean area. Effectively reduce dust source from entering into clean area after used, and keep clean area in normal working state. Shower way: single-side shower, double-side shower, three-side shower, top shower



Main characters:

Photoelectric control, automatic shower.

Circulated air design keeps shower area clean in non-shower state.

Double doors adopt electric interlocking to force shower; double doors may be made as automatic movable door.

Made as negative pressure and anti-exploding air shower according to users' requirement.

Equipped with the device to remove static

Carry on air brake, cushion type and other particular design, manufacturing.



Parameter:

Parameter/model	as-800-1/1	as-800-2/1	as-800-3/I
Filter efficiency	≥99.99%@0.3μm
Spraying wind speed	≥25
Shower time	0-99 adjustable
Number of nozzles	12 pieces	16 pieces	18 pieces
Dimension of shower area	800x900x2000	800x1200x2000	800x1900x2000
Overall dimension	1300x1000x2150	1300x1300x2150	1300x2000x2250
Chassis	Stainless steel plate
Power supply	AC, 3N, 380V ±10%, 50Hz±2Hz
Rated power consumption (W)	1500	2000	3000
Weight (kg)	500	700	1000
Specification and number of low effective filter (mm)	650x400x15x2 piece
Specification and number of high effective filter (mm)	610x610x69x2 piece	760x610x69x2 piece	915x610x69x2 piece
