| Brand Name: | No brand |
|---|---|
| After-sales Service Provided: | YES |
| Dimension(L*W*H): | customized |
| Condition: | New |
| desiccant,dry: | NO |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

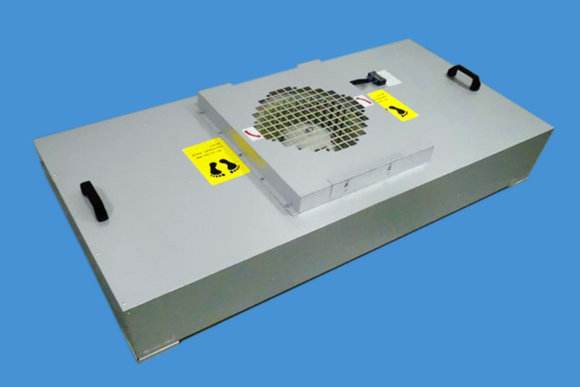

Cleanroom HEPA ceiling ffu & fan filter unit
Product Information
FFU is generation set with motor inside which is used in the turbulent layer and laminar flow clean room. It has characteristic of continuous use. the air flow can reach 0.45mm/s±20%.
Product Feature
Long-lift span, low noise, maintenance-free, small vibration, and adjustable speed, It can control thousand unit together.
Strict monitoring
It is tested according to the standard of ISO14644-1 before package.
Applications
Semiconductor, electronics, flat-panel displays, disc-drive, manufacturers and optics, bio-engineering, clean lines, clean bench, clean room,laminar flow hood,etc.
OEM
Customized design is available.
Technology Parameter
Model |
AL-FFU920/1 |
AL-FFU1175/1 |
AL-FFU1225/1 |
AL-FFU875/1 | ||
Module size(W x L x Hmm) |
920*615*250 |
1175*575*250 |
1225*615*250 |
875*575*250 | ||
Plenum chamber material |
Cold rolled steel with epoxy powder/ galvanized steel/ stainless steel | |||||
Air flow(m3/h) |
900 |
1000 |
1200 |
800 | ||
Average velocity(m/s) |
0.3-0.5 |
0.3-0.5 |
0.3-0.5 |
0.3-0.5 | ||
Pressure(PA) |
97(10mmAq) |
97(10mmAq) |
97(10mmAq) |
97(10mmAq) | ||
Power(W) |
100 |
100 |
100 |
100 | ||
Weight(kg) |
27.5 |
34 |
37.5 |
25 | ||
Noise dB |
52 |
52 |
52 |
52 | ||
HEPA Filter |
Size(W x H x Dmm) |
915*610*69 |
1170*570*69 |
1220*610*69 |
870*570*69 | |
Efficiency |
99.99% 0.3μm |
99.99% 0.3μm |
99.99% 0.3μm |
99.99% 0.3μm | ||
Frame |
High-quality aluminum |
High-quality aluminum |
High-quality aluminum |
High-quality aluminum | ||
Pressure |
180pa 0.45m/s |
180pa 0.45m/s |
180pa 0.45m/s |
180pa 0.45m/s | ||
Characteristics |
Choose patent no-gap technology to make PU gasket | |||||
Motor Parameter |
Power supply(V/Hz) |
220/50 |
220/50 |
220/50 |
220/50 | |
Type |
Aluminum turbine motor |
Aluminum turbine motor |
Aluminum turbine motor |
Aluminum turbine motor | ||
Vibration quotients(mm/s |
0.2-0.5 |
0.2-0.5 |
0.2-0.5 |
0.2-0.5 | ||
