Plate Type: | Screen Printer |
---|---|
Automatic Grade: | Automatic |
Usage: | Label Printer,Paper Printer |
Brand Name: | LINX |
Condition: | New |
Plate Type: | creen |
After-sales Service Provided: | No overseas service provided |
Weight: | 15 |
Dimensions(L*W*H): | 53*43*27cm |
Color & Page: | Multicolor |
Type: | Digital Printer |
Brand Name:: | Linx |
Model Number: | Linx TT3 |
Usage: | food and medical plastic packing bags |
Weight:: | 13kg |
Printhead width and resolution: | 35mm, 300dpi, 12 dots/min |
Ribbon Widths: | Min: 22 mm;Max: 33mm |
Print Speed-Intermittent motion mode: | 50mm/sec-400mm/sec |
Print speed-continuous motion code: | 40mm/sec-500mm/sec |
Maximum ribbon length: | 600meters |
Quick Details
Specifications

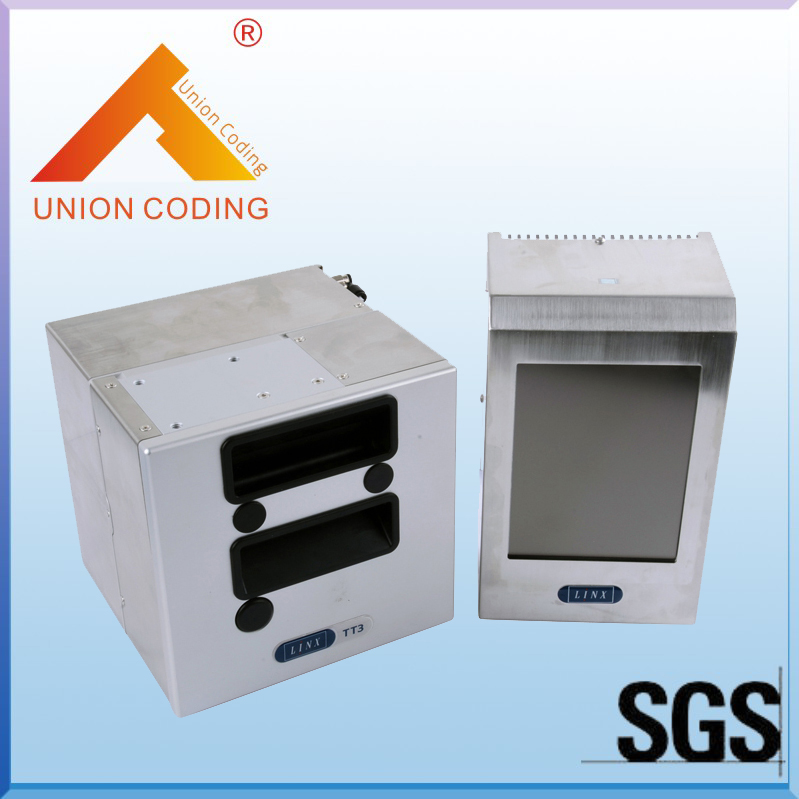

the Linx TT3 Smartdate Thermal Transfer OverPrinter gives you the perfect coding solution for flexible packaging materials. Printing high quality codes time after time, the Linx TT3 is easy to use and can even save you money.
the Linx TT3 Smartdate Thermal Transfer OverPrinter sets a new standard for simple date and batch coding-ideal for printing variable informationonto bags, pouches and flow wrap.
Printer complete forthe Linx TT3 Smartdate Thermal Transfer OverPrinter:

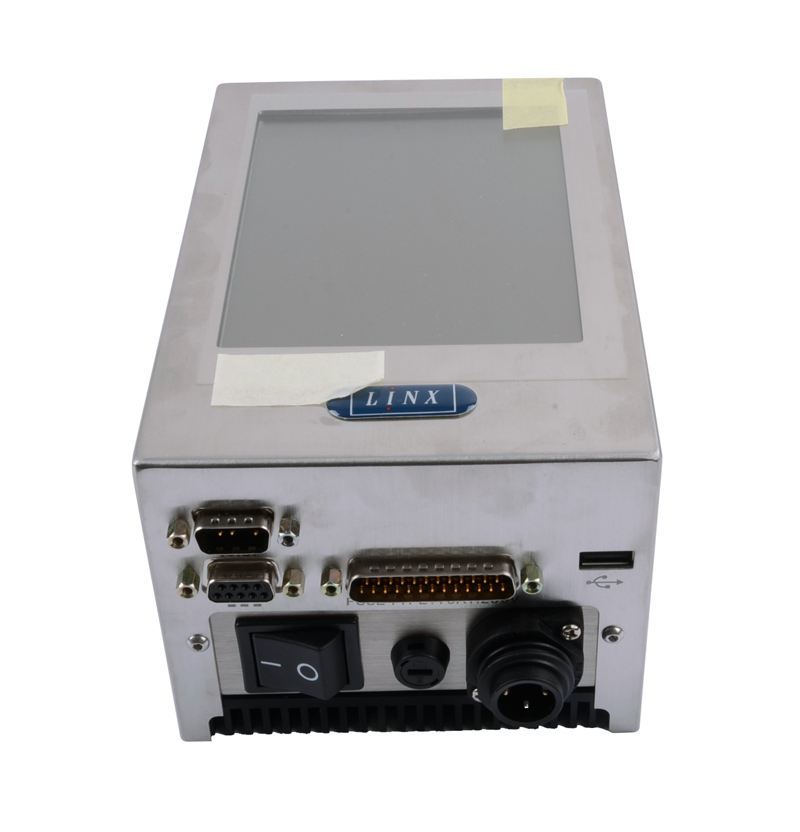

Clarity unit:
Linx Lead Assy(same to Videojet 6210):
Specification of Linx TT3 Smartdate Thermal Transfer OverPrinter in printhead 32mm:
the Linx TT3 - Easy to use, maximum ribbon economy, minimum fuss.
Optimized ribbon economy for lowest running costs
Simple ribbon changeover with cassette system saves time
Clear, simple operator interface including standard code formats reduces operator error and allows basic coding out of the box without a PC
High resolution 300dpi printhead for optimum legibility of even the smallest characters
Technical Specification:
Printing Capability:
Ribbon width of 22mm or 33mm
Message area – 32mm (w) x 30mm (l)
Maximum ribbon length – 600m
Print speed: intermittent motion mode - 50mm/sec to 200mm/sec
Print speed: continuous motion mode - 40mm/sec to 500mm/sec
Ribbon colors – black, metallic white (other colors on request)
Programming:
Coder supplied with a range of standard code templates
CLARiSOFT for TT3 code design software
Auto best before date calculations
Flexible date/time formats
Scaleable text including rotation, mirror and inverse printing
WYSIWYG print preview
3 levels of password protection
Physical characteristics:
Clutchless bi-directional ribbon drive – makes efficient use of the ribbon.
Full color touch screen operator interface.
Standard bracket systems for integrating coder into intermittent and continuous motion packaging machinery.
Packed in carton for Smartdate Thermal Transfer OverPrinter:
Our company is Henan Union Coding Tech Co., Ltd. for our factory, We have the Self-operate Import and Export License, and have SGS, ISO9001 and 14001 International Standards.
Our factory has 80 employees and 20 coating production lines, producing 380 million squaremeters hot stamping foils every year, engaging in coding solutions for Food, Pharmaceutical, Chemical and other Packaging Industrial.
We have the self-operate Import and Export Lincense, and already established business with many regions, including Asia, Africa, North America, South America, Europe, ect.
We also produce the TTO ribbon used on Linx TT3 and TT5 printer, Videojet printer, Domino printer, Markem printer, ect.
Packaging
Selling Units: | Single item |
Single package size: | 53X43X28 cm |
Single gross weight: | 14.0 KG |
Package Type: | Packed in carton; with the foam to protect the machine. |
