| Brand Name: | Yarmax |
|---|---|
| Cold Style: | Air-cooled |
| Cylinder: | Single Cylinder |
| Fuel: | Diesel |
| Condition: | New |
| Certification: | CE & ISO 9000 |
| Weight: | 27~32kg |
| Dimension(L*W*H): | 335*380*415 (mm) |
| Model Number: | 170F |
| Place of Origin: | China (Mainland) |
| Start: | Electric Start |
| Usage: | |
| Product Name: | 170F Air Cooled Diesel Engine |
| Type: | Single-cylinder,Vertical, Air-cooled, 4-Stroke, Direct Injection |
| Bore*Stroke: | 70*55 (mm) |
| Rated Power: | 2.5KW |
| Rated Speed: | 3000/3600 (rpm) |
| Lubricating System: | Pressure Splashed |
| Starting System: | Recoil / Electric Starter |
| Fuel Type: | 0#, -10#, -20# Diesel |
| Battery Capacity: | 12V24Ah-36Ah |
| Rotation Direction (face to the output axle): | Anticlockwise |
Quick Details
Specifications

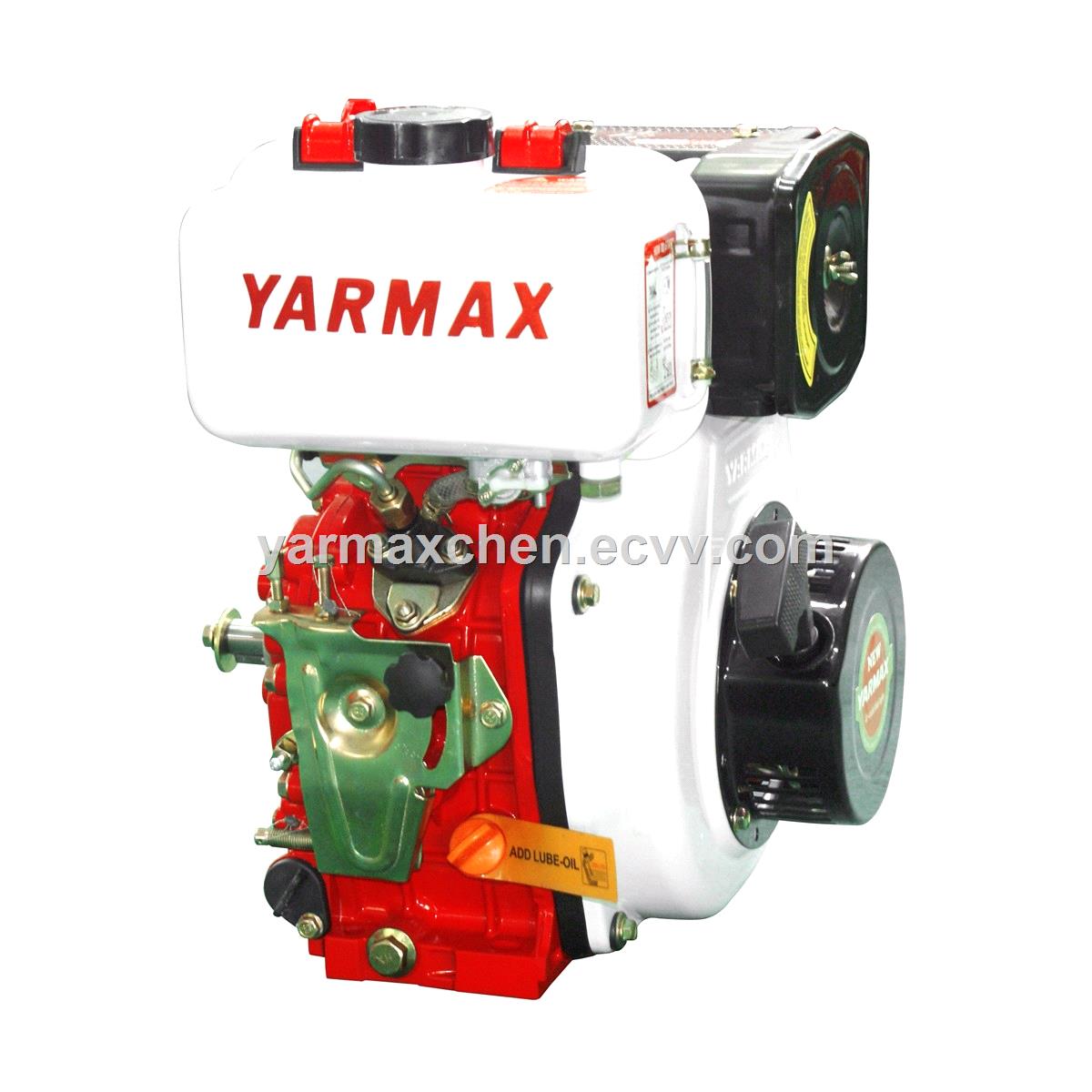

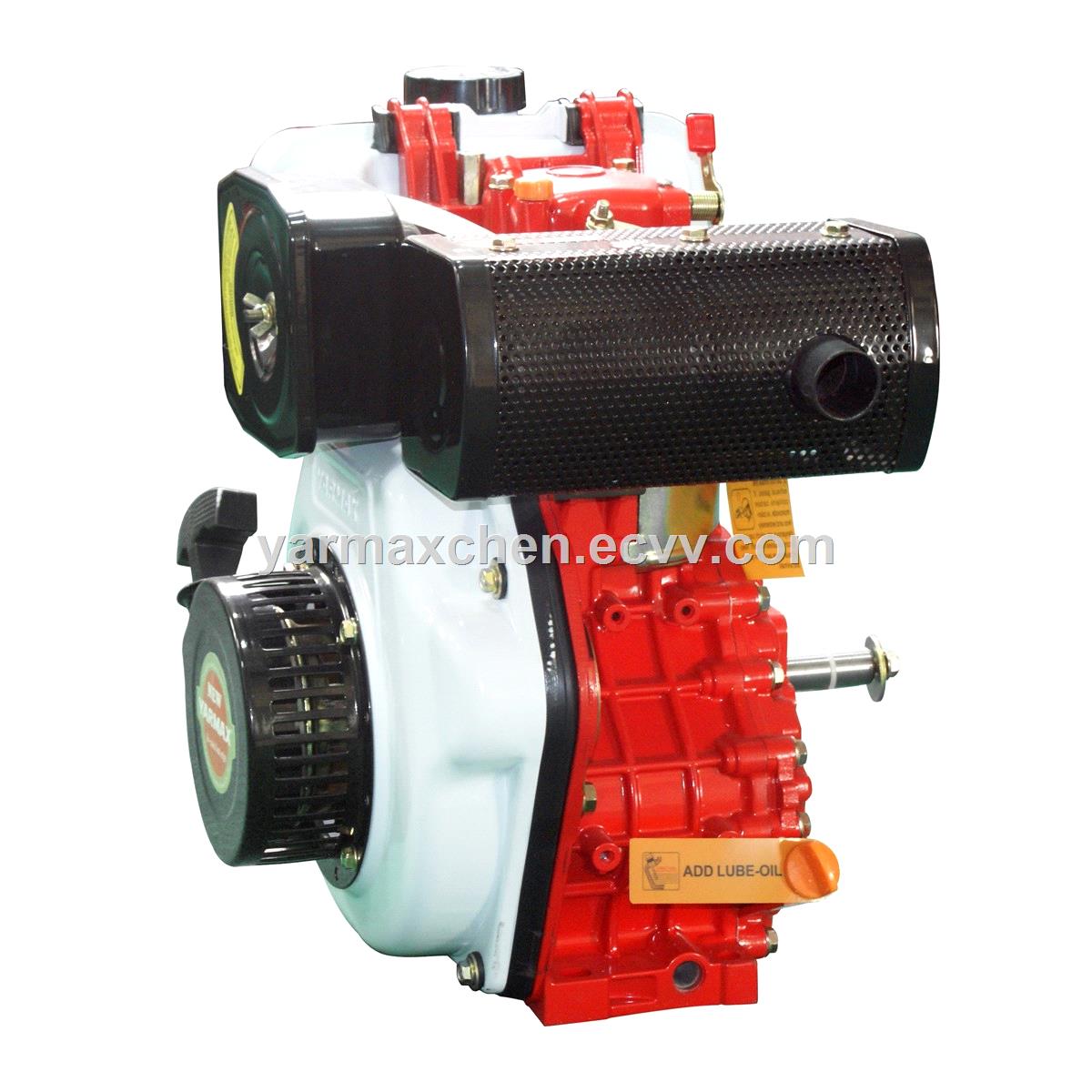

170F Air Cooled Diesel Engine
1. Product Details:
*. the miniaturized fuel injection system
*. Low fuel consumption
*. Lightweight & compact design
*. Easy and quick start
*. Stand up the hard work
*. Recoil or electric starting
*. Customize your logo is available
*. ISO9001 & CE
Air Cooled Diesel Engine | ||
Mode |
|
YM170F |
Type |
|
Single-cylinder,Vertical,Air-cooled,4-stroke,Direct injection |
BorexStroke |
mm |
70×55 |
Displacement |
L |
0.211 |
Compression Ratio |
|
20 |
Rated Power |
KW/rpm |
2.5/3000 2.8/3600 |
Rated Power |
HP/rpm |
3.4/3000 3.8/3600 |
Rated Speed |
rpm |
3000 3600 |
Lowest rotation speed at zero load |
r/min |
≤1300 |
Lubricating system |
|
Pressure splashed |
Starting system |
|
Recoil starter/Electric starter |
Rotation direction (face to the output axle) |
|
Anticlockwise |
Fuel type |
|
0#,-10#,-20# diesel |
Fuel tank capacity |
L |
2.5 |
Fuel consumption/related rotation speed (g/kW.H/r/min) |
|
280.2/3000 288.3/3600 |
Lube oil type |
|
CD grade or SAE 10W-30, 15W-40 |
Lube oil capacity |
L |
0.75 |
Starting motor capacity |
V,kW |
12V 0.8kW |
Charging generator capacity |
V,A |
12V 3A |
Battery capacity |
V,Ah |
12V24Ah-36Ah |
Overall dimension(L×W×H) |
mm |
335X380X415 |
Dry weight |
kg |
≤27(Recoil starter) |
2. Product advantages:
*. Reliable Performance:
Reliable Performance is the major advantage of Yarmax products, and this reliability is based on the outstanding design in every aspect and strict Q.C. System.
*. Customer First:
We devote ourselves to develop products to meet customers' requirements .Our engineer develop and design new products for customers.
*. Strict test process before ex-factory:
Every product will be tested twice before ex-factory,and our products are 100% ex factory pass rate.
*. Low fuel consumption, easy maintenance
*. Certification: CE,ISO,GS,SONCAP etc.
*. Our logo or OEM
3. PackagIng & Shipping
Packaging: Carton
Shipping: Usually within 15 workdays
4. Company Information:
YARMAX Power. Power the World!
Changzhou Yarmax Power Co,. Ltd, established in 2007, mainly supply
*. Air Cooled Diesel Engine
*. Air Cooled Diesel Generators
*. Welding Generators
*. Water Pumps
*. Water Cooled Diesel Generator
from power range of 10KVA-2000KVA with very strong capability, advanced production lines and quality inspections.
If anything interests you, please feel free to contact me. I am willing to send more details for your reference.
