Introduction







     the weighting room is one kind of clean equipment which used in pharmacy, micro-organism research and scientific experiment, it can supply the single way airflow, and part of the clean air will be circulated in the working area, the other part will be exhaust outside, it can make the working area negative pressure to prohibit cross population, it can guarantee the working area with high clean grade.

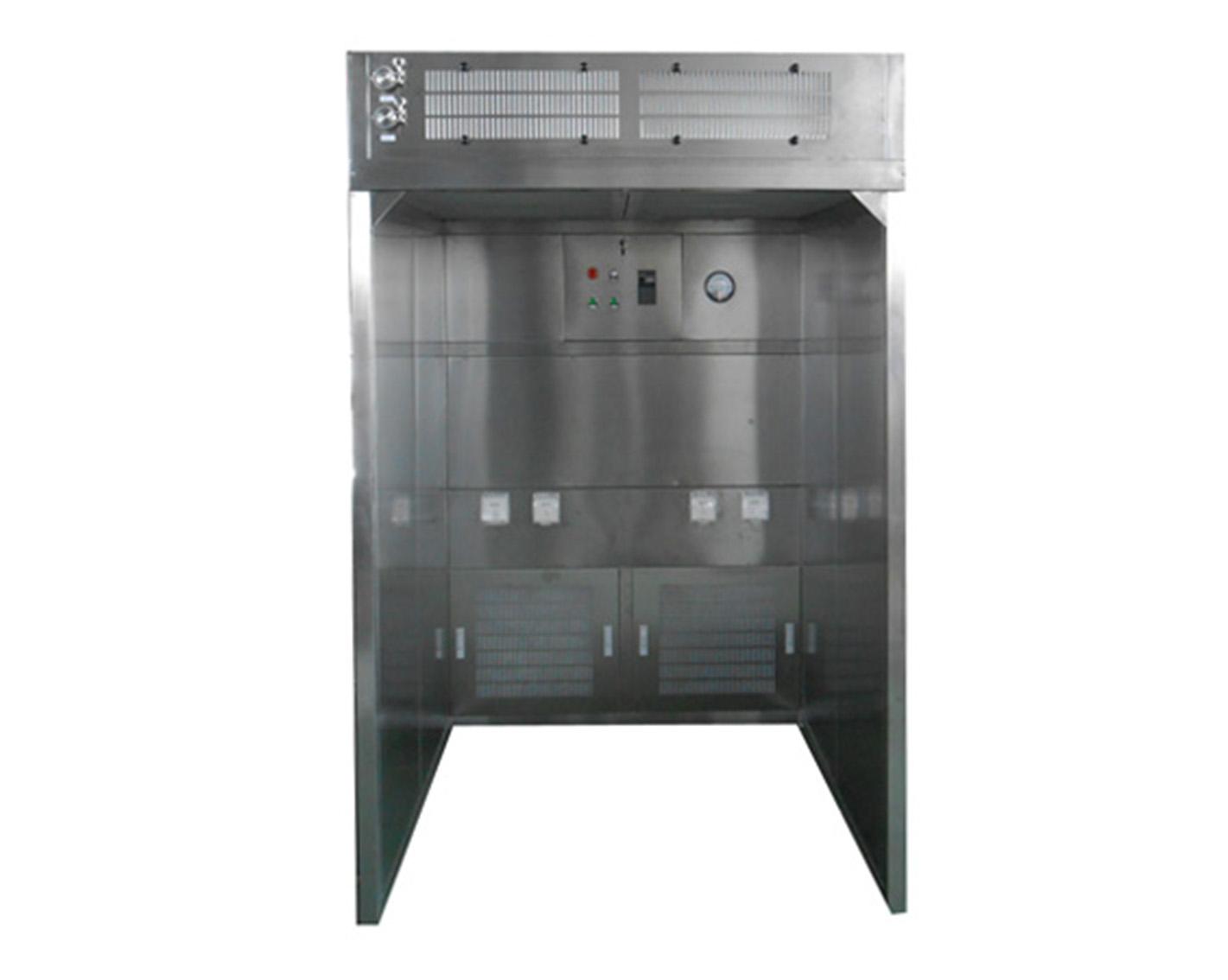

      the center weight room is one kind of professional working room which specially used in sampling, weighting and analysis industry, it can control the working area powder to prohibit them off the working room, and it is special equipment to control the powder floating, protect operators not breathe the operated powder.

      the air in the work shop will pass though primary filter, medium efficiency filter and was pressed into static pressure box by centrifugal fan, after that, it will pass though the high efficiency filter and blow through FFU, the clean air will flow by average speed over the working area, then it forms the high clean grade working environment. The center weight room's operating area will be keep at negative pressure condition, exhaust 10% circulated air. The small chamber air in center weighting room will pass through three grade filter system (high efficiency filter will remove 99.99% granules ≥0.3um) to make own circulated, its design meet cGMP request.

      It can control the powder floating, reagent overflow during process of powder examination, and reagent filling. It can protect the environment and staff safety.

Parameters

NAME	Model
Material	SUS304#*1.2mm
Outer size	W2500*D2000*H2450
Inner size	2400*1500*2000
Blower	High pressure  blower *4set
Controler	LED Digital display
HEPA	99.995%0.3μm
Pre-filter	G4
MID-filter	F8
