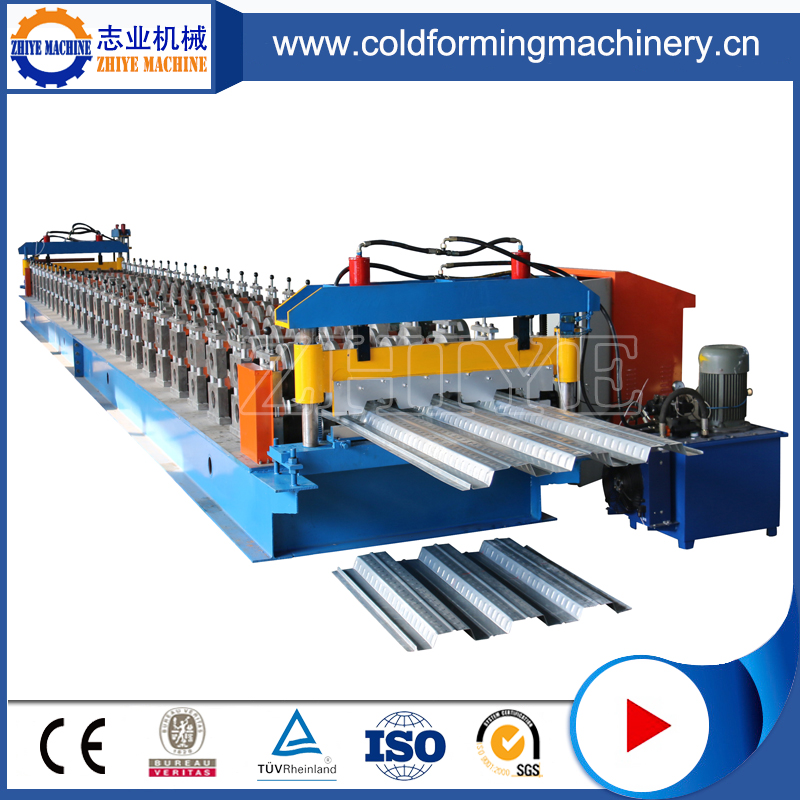

Panels produced by this machine are mainly used as the Floor decking in Russia. It has features of high wave, high strength, high Degree automatically producing, lower cost and so on.
   this panel is set up with concrete, which has good Adhesiveness. this not only can save steel moulding plate, but also can Decrease the load capacity of floor decking. Therefore, steel quantity of the Whole project is decreased and can save money surely.

 Technical Pararmeter of product line:

1.Suitable process material: colored steel sheet, aluminium steel sheet, and galvanized steel
2.Applied slab thickness:0.3-1.0mm

3 Charge in width:1000mm

4. Line speed:16m--18m/min

5. Rolling Rows:16rows

6. Rolling Diameter:70mm

7. Dimensions15M*1.9m*1.4m

8. Weight:5t

9. Power:11kw+4kw

Processing Technique and deployment:

Uncoiler

Feeding Platform
Molding core

Molding Shearing mechanism

Hydraulic Station

Computer Control cabinet

Counter

Optional equipment:

Manual Uncoiler frame in different tons

Hydraulic automatic uncoiler

Working Flow:

Decoiling the sheet--sheet guiding---roll forming---measure length---cutting the Panel---panels to the supporter
