Product Main

Quick Details

Brand Name: Huawei
Wavelength: ***
Data Rate: ***
warranty: 1 year
Connector: ***
Model Number: OSN 9500
Place of Origin: China (Mainland)

Specifications



Huawei MSTP OptiX OSN 9500 (SDH OSN9500)

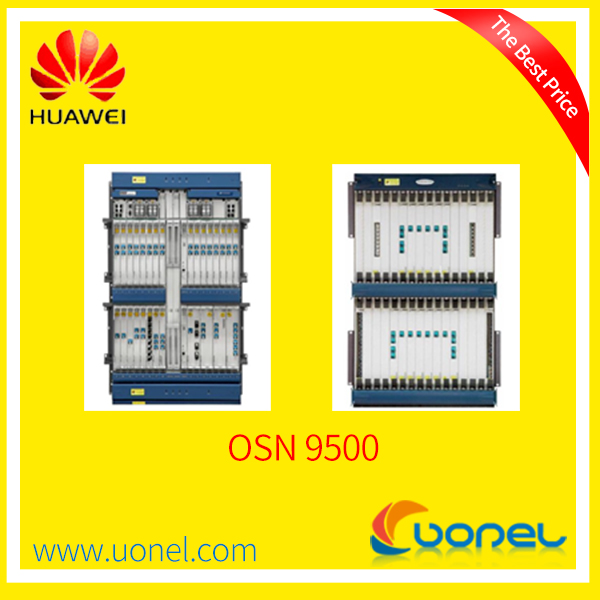

Huawei MSTP Equipment OSN 9500
the key functions of the OptiX OSN 9500 are as follows.


  • the OptiX OSN 9500 features large switching capacity and flexible networking mode. the OptiX OSN 9500 provides a maximum of 4608 x 4608 VC-4 higher order cross-connect capacity, and a maximum of 32256 x 32256 VC-12 (or 1536 x 1536 VC-3) lower order cross-connect capacity. the OptiX OSN 9500 supports networking schemes, such as the chain, ring and mesh. the OptiX OSN 9500 grooms services in VC-4, VC-3, or VC-12 granularities to meet different network application requirements.
  • the OptiX OSN 9500 can access multiple services, such as STM-1(E), STM-1(O), STM-4, STM-16, STM-64, GE and 10xGE services.
  • the OptiX OSN 9500 has ASON features, such as automatic end-to-end service configuration, service level agreement (SLA), traffic engineering, mesh networking, and protection.
  • the OptiX OSN 9500 can be used alone or together with other Huawei optical transmission equipment for networking. In addition, the OptiX OSN 9500 can be interconnected with the SDH and DWDM equipment of the other vendors, which complies with ITU-T Recommendations.





    the OptiX OSN 9500 consists of the following parts:

    • Cabinet, which contains the DC power distribution unit (PDU), front door, rear door and side panel. the DC PDU mainly access and distributes power.
    • Subrack, which contains the fan tray assemblies, boards, air filter and cabling troughs. the fan tray assemblies are used to dissipate head generated by the equipment. Each subrack should be configured with two fan tray assemblies.
    • Cables, which contain fibers, packages of internal cables and external cables.
    • Other optional components, which contain the orderwire phone, hub accessories, and bracket for cabinet installation.
