Specifications

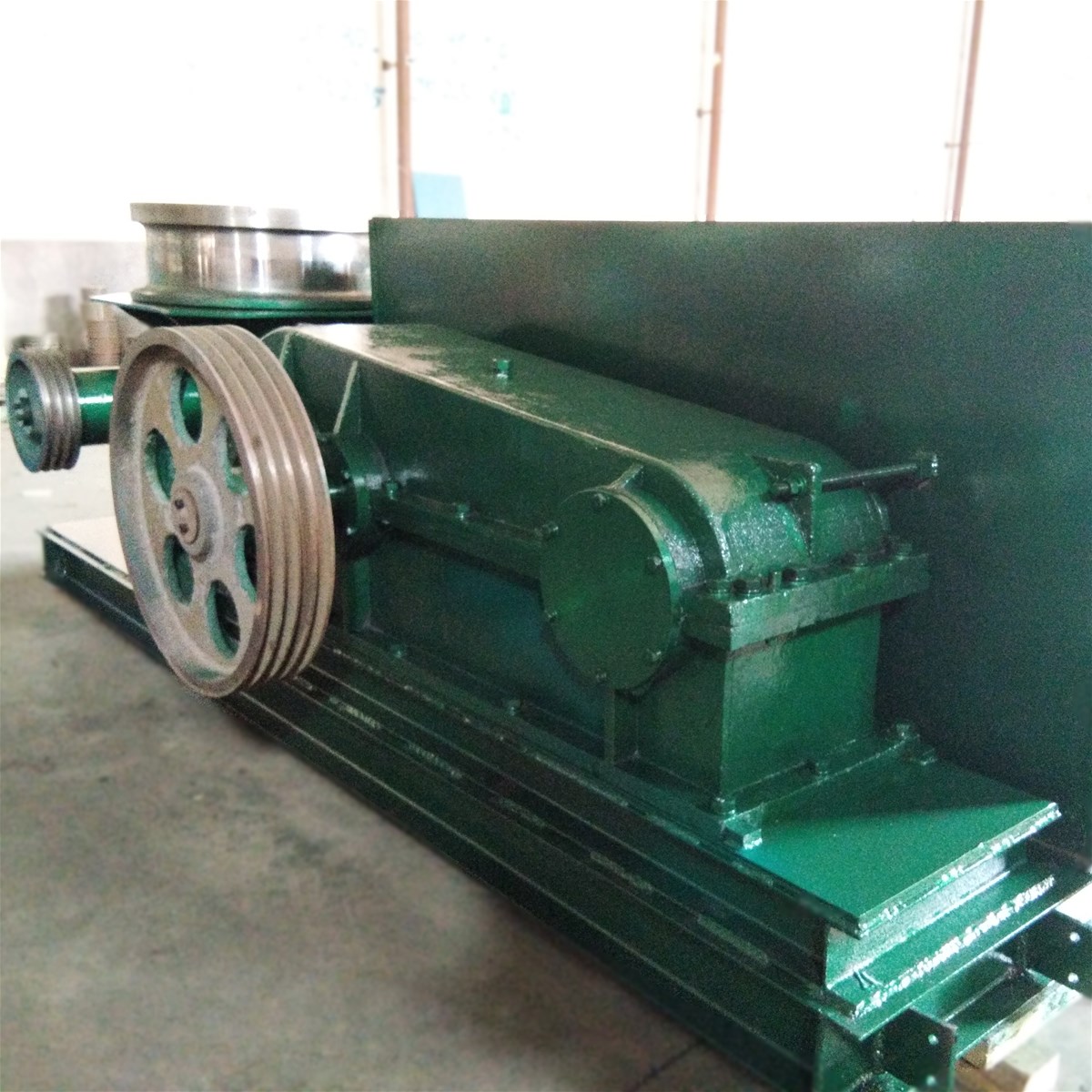

Water Tank Metal Wire Drawing Machine
High speed,well developed ,low noise

		LT600-8
Inlet Wire  Dia.	mm	4.0
Outlet Wire Dia.	mm	2.0
Speed	m/s	8
Draw die	pcs	9
Motor		Inverted motor
Motor Power	kw	75
Dia.of capstan	mm	600
Material of stepped pulley		Steel coated tungsten Carbide/Alloy steel/Cast iron/Ceramic
Warranty of capstan	month	24
Steel plate thickness	mm	16
Size dimension (L*W*H)	m	3.38*1.9*1.2
Weight	Kg/set	3500
Warranty	month	12
Total compression ratio	%	80-90
Drive mode		Deduction gear
Control system		Inverter
Inverter		SINEE
Low voltage electric appliances		Chint Brand
Take-up type		Spooler takeup800
Motor of coiler	kw	11
MOQ	set	1

Different price against different configurations.



Usage:

the set of the machines is an ideal equipment for drawing wire stock of high,medium and carbon steel,as well as coper,alumium and alloy.the machine are Applied for drawing wire in the factories,such as wire-steel factor,metal mesh Factory and nail making factory etc.

in order to lower residual heat on the surface of the block, the cooling means is installed in inter-wall of the block,the wortle is soaked in cooling Water to reduce its working temperature.

Control System: 18.5kw sine brand inverter
