| Application: | Laser Cutting |
|---|---|
| Certification: | CE,SGS |
| Brand Name: | DWIN |
| Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Applicable Material: | Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood |
| Laser Type: | CO2 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Model Number: | DW1390 |
| Place of Origin: | China (Mainland) |
| Control Software: | laser engraving machine |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Cutting Speed: | 0-10000mm/min |
| Cutting Area: | 1300cm*90cm |
| Cutting Thickness: | 0-25mm(depond on material) |
| Condition: | New |
| product: | CO2 laser cutting machine |
| laser power: | 40W/60W/80W |
| control system: | Leetro or RDcam |
| warranty: | 24 months |
| Water chiller: | CW3000 water pump CW5000 etc |
| Machine name: | laser engraving machine |
| Brand name: | DWIN |
| Voltage: | 220V/50Hz 60Hz |
| Laser tube: | RECI/EFR etc |
Quick Details
Specifications

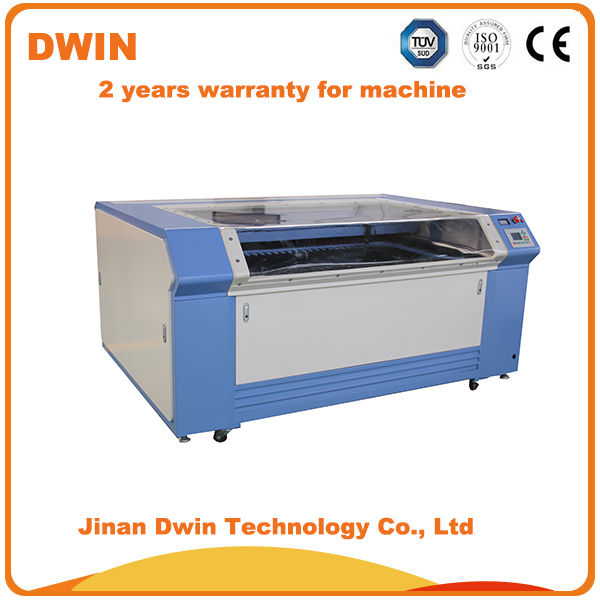

Acrylic Co2 Laser engraving and cutting machine price DW1390
Features:
DW640 laser engraving and cutting machine can engraving perfect pictures, portrait on the surface of all kinds and all shapes of materials, make all kinds of craftworks, also make diversified marks and brands. this is a machine with good performance and reasonable price.
Applicable material:
Nonmetal material such as organic glass, leather rubber, plastic, granite, cloth, glass, wood plank, paper
Applicable industry:
Billboard, craftwork, advertisement and decoration, bamboo and wooden product, garment and leather,mould produce
Specifications:
Model DW640
Working area: 60cm*40cm / 24in*16in (L*W)
Laser power: 40W/60W
Laser type: CO2 sealed laser tube,water-cooled
Engraving speed:0-60000mm/min
Cutting speed: 0-10000mm/min
Power supply : 220V±10% /50HZ, 110V±10%//60HZ
Min. Shaping character: Letter 1.0 x 1.0mm
Graphic format supported: BMP, PLT, DST, DXF, AI,CDR
Software supported: CorelDraw, PhotoShop, AutoCAD
Laser Output Control: 1-100% software setting
Highest Scanning Precision: 3000DPI
Resolution ratio : <0.01mm
Location precision: <0.01mm
Working temperature: 5℃－40℃
Operating humidity: 5%-95%(without condensed water)
Equipment Dimension: 1050mm*750mm*970mm/41in*30in*38in (L*W*H)
Packing Dimension: 1150mm*850mm*1050mm /45in*33in*41in (L*W*H)
Net Weight 150kg
Optional parts: up-down worktable, Red light pointer, Auto focus, Rotary device
Samples made by machine
Samples made by machine
