| After-sales Service Provided: | No overseas service provided |
|---|---|
| Brand Name: | SH |
| Style: | Vertical |
| Type: | Circular Saw |
| Condition: | New |
| Warranty: | 12 months |
| Certification: | ISO |
| Weight: | subject to saw model |
| Dimension(L*W*H): | subject to saw model |
| Power(W): | subject to saw model or as customer needs |
| Voltage: | 380v,50hz,3phase or else |
| Usage: | woodcutting |
| Model Number: | SHYM200, SHYM300, SHYM400, etc |
| Place of Origin: | China (Mainland) |
| Use: | Woodworking |
Quick Details
Specifications

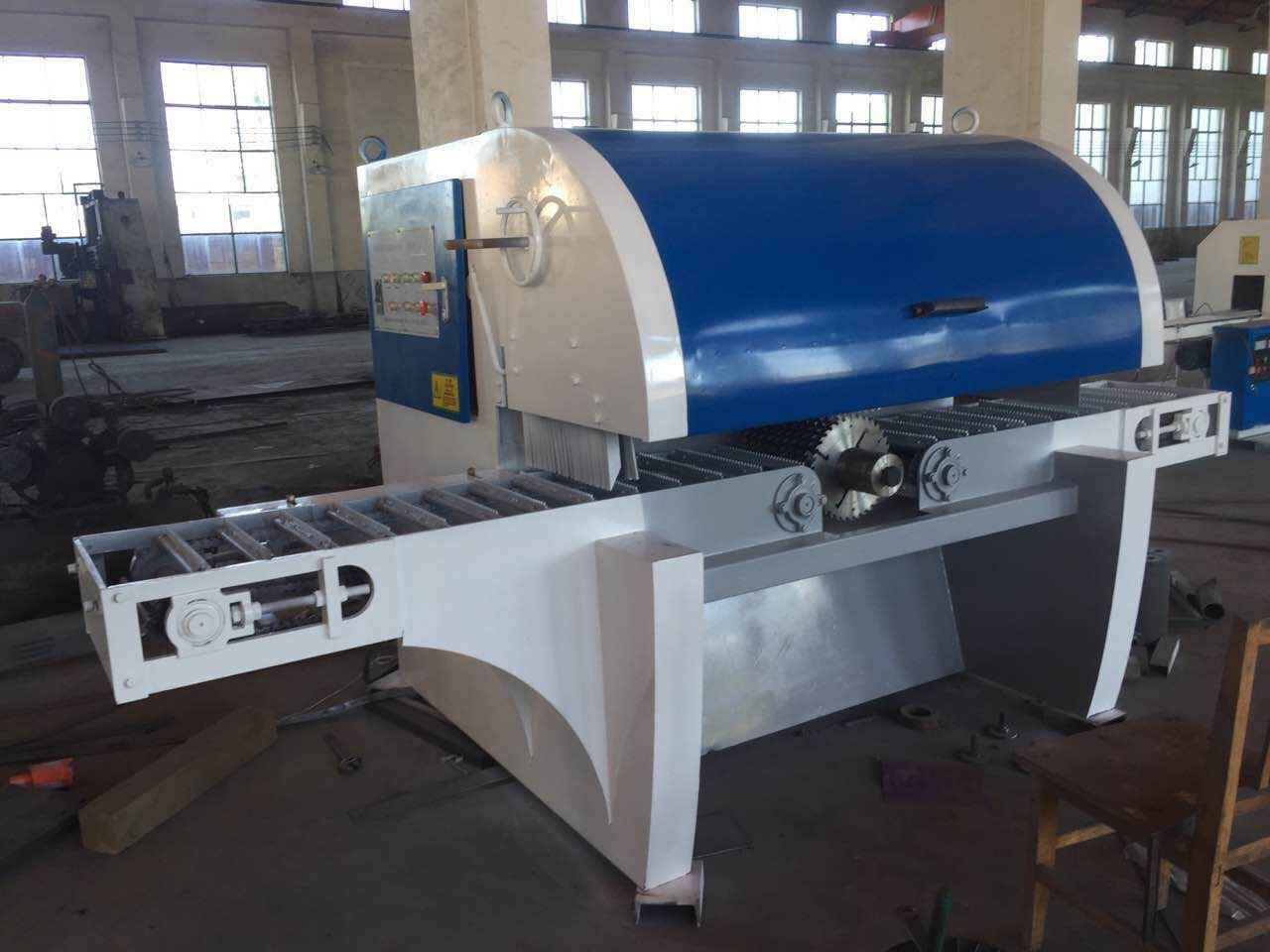

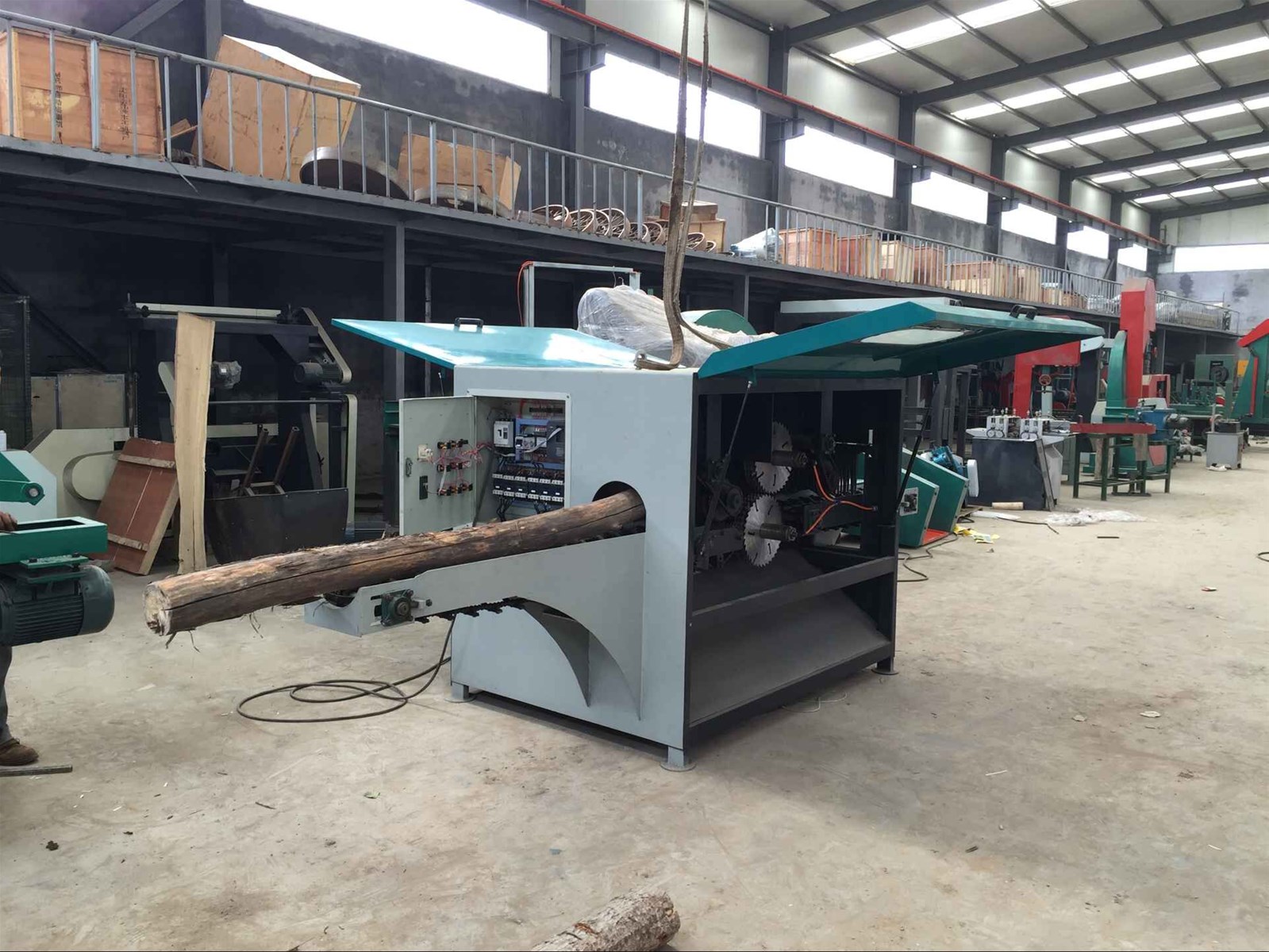

1. Multi blade saw for round log
Parameter |
SHYM200 |
SHYM250 |
SHYM300 |
SHYM350 |
Sawing wood diameter |
200mm |
250mm |
300mm |
350mm |
Sawing wood length |
above 600mm |
above 600mm |
above 600mm |
above 600mm |
speed |
2800r/min |
2800 r/min |
2800 r/min |
2800 r/min |
Motor power |
22KW*2 |
22KW*2 |
30KW*2 |
37KW*2 |
Feed motor power |
1.5KW |
1.5KW |
2.2KW |
2.2KW |
Diameter of saw blade |
305mm |
366mm |
405mm |
480mm |
Quantity of saw blades |
2-10pieces |
2-10 pieces |
2-10 pieces |
2-10 pieces |
Saw blade arrangement |
Upper and down |
Upper and down |
Upper and down |
Upper and down |
Feed speed |
Frequency control |
Frequency control |
Frequency control |
Frequency control |
Cooling water pressure |
0.3-0.6PA |
0.3-0.6PA |
0.3-0.6PA |
0.3-0.6PA |
Type of cooling |
the axis of hydraulic |
the axis of hydraulic |
the axis of hydraulic |
the axis of hydraulic |
Multi blade saw for square wood
Parameter |
SHBC120-250 |
SHBC160-250 |
SHBC200-250 |
SHBC160-350 |
Max. Sawing wood width |
250mm |
250mm |
350mm |
350mm |
Max. Sawing wood thickness |
120mm |
160mm |
200mm |
160mm |
Sawing wood length |
above 500mm |
above 500mm |
above 500mm |
above 600mm |
Speed of mainshaft |
2800 r/min |
2800 r/min |
2800 r/min |
2800 r/min |
Main motor power |
15KW*2 |
18.5KW*2 |
22KW*2 |
22KW*2 |
Feed motor power |
1.5KW |
1.5KW |
2.2KW |
2.2KW |
Diameter of saw blade |
212mm |
255mm |
305mm |
255mm |
Quantity of saw blade |
2-10 pieces |
2-10 pieces |
2-10 pieces |
2-10 pieces |
Arrangement of saw blade |
Upper and down |
Upper and down |
Upper and down |
Upper and down |
Feed speed |
Frequency control |
Frequency control |
Frequency control |
Frequency control |
Cooling water pressure |
0.3-0.6PA |
0.3-0.6PA |
0.3-0.6PA |
0.3-0.6PA |
Cooling method |
Axis spray water |
Axis spray water |
Axis spray water |
Axis spray water |
