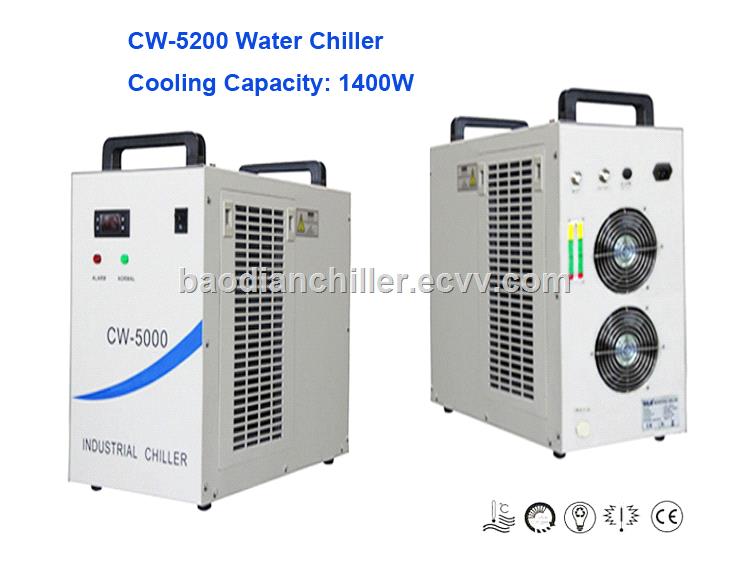

Introduction of Small Water Chiller

Main parts:  Imports brand compressor and high Flow high head pumps, safety and environmental protection, energy saving and Durable.

Chiller Parts: the vast majority of the use of "book" the original product, model configuration and diverse, stable Performance, long service life.

Electric Chiller Applications

One-stop automatic intelligent temperature Control of : in different environment, user does not Need to change setting due

to it will automatically switch to Appropriate operating temperature.

CW-5200AG chiller air cooled: applied to Cool a single 150W CO2 laser tube or dual 100W CO2 laser tubes;

CW-5200AH refrigeration chillers: applied to a cool a Single 8KW CNC spindle or welding equipment;

CW-5200AI cold water chiller: applied to a Cool single 50W-75W laser diode, a single 30W solid-state laser or a single 50W RF laser tube;

Optional: CW-5202 dual water inlet and outlet series; Heat booster; water filter.



CW 5200 Chiller Working Specification

Model	CW-5200AG	CW-5200BG	CW-5200DG	CW-5200AI	CW-5200BI	CW-5200DI
Voltage	220V	220V	110V	220V	220V	110V
Frequency	50Hz	60Hz	60Hz	50Hz	60Hz	60Hz
Current	2.4~3.1A	2.6~3.3A	4.5~6.5A	2.4~3.1A	2.6~3.3A	4.5~6.5A
Compressor Power	0.52KW	0.5KW	0.68KW	0.52KW	0.5KW	0.68KW
Refrigeration Capacity	1.49KW	1.46KW	1.56KW	1.49KW	1.46KW	1.56KW
Refrigerant	R-22 / R-134a / R-410a
Refrigerant Charge	360g	380g	350g	360g	380g	350g
Precision	±0.3℃
Reducer	Capillary
Protection	over current Protection for compressor, flow alarm, over temperature alarm
Pump power	43.2W
Tank capacity	9L
Inlet and Outlet of chiller Working	External Φ10mm Brass connector			Φ10mm speedy Connector
Max. Lift	10 M			25M
Max. Flow	16 L/min			16 L/min
N.W	29Kgs
G.W	31Kgs
Dimension	56 X 28 X 47 Cm (L X W X H)
Package Dimension	72 X 44 X 57 Cm (L X W X H)



Note: other electric sources can be Customized; heating and higher temperature control precision functions are Optional.
