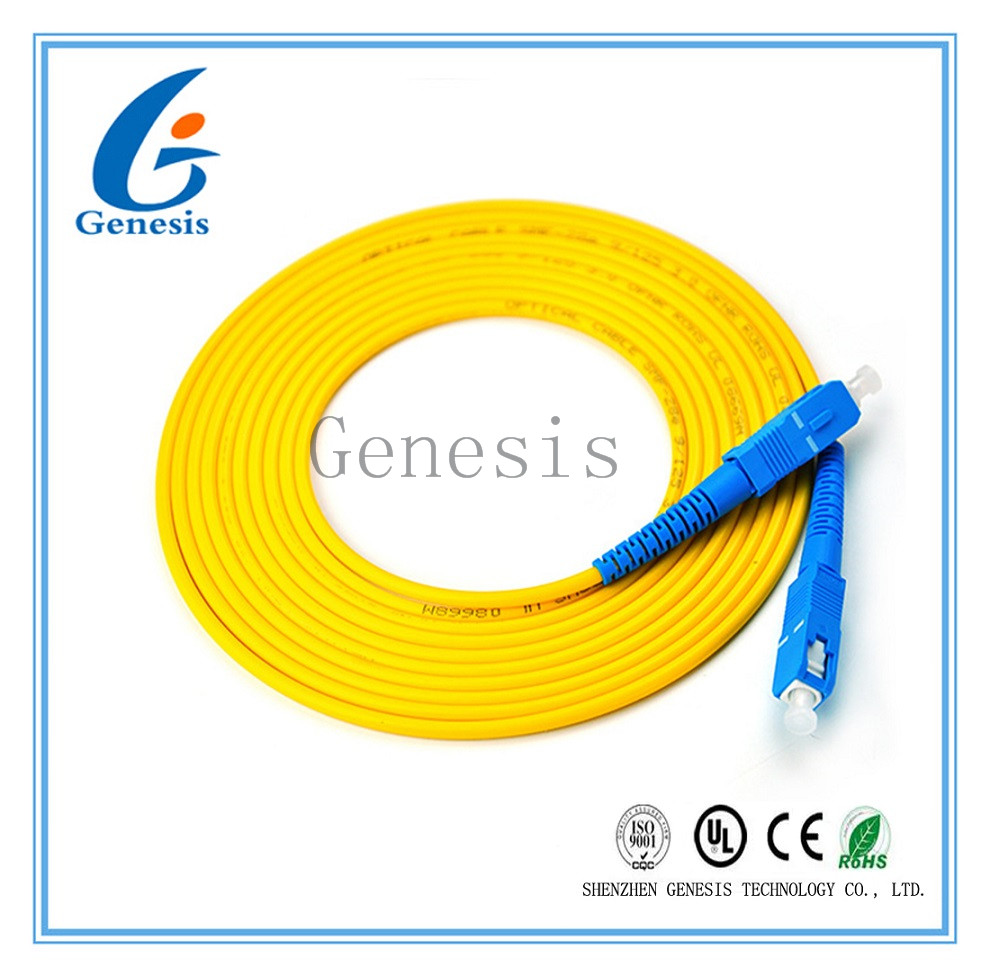

Factory manufactured optic fiber patch cord,used in connecting receiver and terminal box.with many interfaces optional LC,SC,ST,SC

1. Application:

1. Optic-fiber Communication Systems
2. Optic-fiber Data Communications
3. Optic-fiber Access Networks
4. Optic-fiber CATV
5. LAN
6. Test Equipment
7. Telecommunication networks
8. Local Area Networks(LANs)
9. Test Equipment
10. FTTH

2. Features:

1. Ompliance with the Standard of IEC and YD/T1272
2. High Return Loss and Low Insertion Loss
3. Good Repeatability and Interchangeability
4. PC,UPC,APC Polishing
5. Single mode,Multi-Mode Versions
6. Various Types of Connectors:FC,SC,ST,MU,LC,MTRJ,MPO,E2000,etc
7. Ribbon Pigtail Cable,Bunchy Pigtail Cable,Waterproof Pigtail Cable
8. Multiple option of Optic Cable Core,Simplex,Twin cores,4 Cores,6 Cores,12 Cores,24 Cores, 48 Cores

3. Specification:

1. Insertion Loss ----Single mode:PC≤0.3dB, UPC≤0.2dB, APC≤0.2dB, MTRJ≤0.5dB; Multi-2. Mode:PC≤0.3dB, MTRJ≤0.5dB
2. Return Loss ----PC≥45dB,UPC≥50dB, APC≥65dB, MTRJ≥40dB
3. Repeatability:≤0.2dB
4. Frequency of Usage:≥1000Times
5. Operating Temperature Range:-40°C~+85°C

4. Order Information:



Fiber Optic Patch Cord
Connector Type	Ceramic Ferrule Bore End Face	Cable Diameter	Simplex/Twin core	Single mode/Multi-mode	Length
FC	PC/UPC/APC	Φ0.9, Φ2,Φ3	Simplex/Twin core	SM/MM	Customized
SC	PC/UPC/APC	Φ0.9, Φ2,Φ3	Simplex/Twin core	SM/MM	Customized
ST	PC/UPC	Φ0.9, Φ2,Φ3	Simplex/Twin core	SM/MM	Customized
LC	PC/UPC	Φ0.9, Φ2	Simplex/Twin core	SM/MM	Customized
MU	PC/UPC	Φ0.9, Φ2	Simplex/Twin core	SM/MM	Customized
MTRJ	PC/UPC	Φ0.9, Φ3	Simplex/Twin core	SM/MM	Customized
