Brand Name: | Genesis |
---|---|
Wavelength: | 1260~1650 |
Data Rate: | 50 |
warranty: | 24 |
Connector: | SC/UPC, FC/UPC, LC/UPC, SC/APC, FC/APC, LC/APC |
Model Number: | Telecom SM Fiber Optic Patch Cord |
Place of Origin: | China (Mainland) |
Quick Details
Specifications

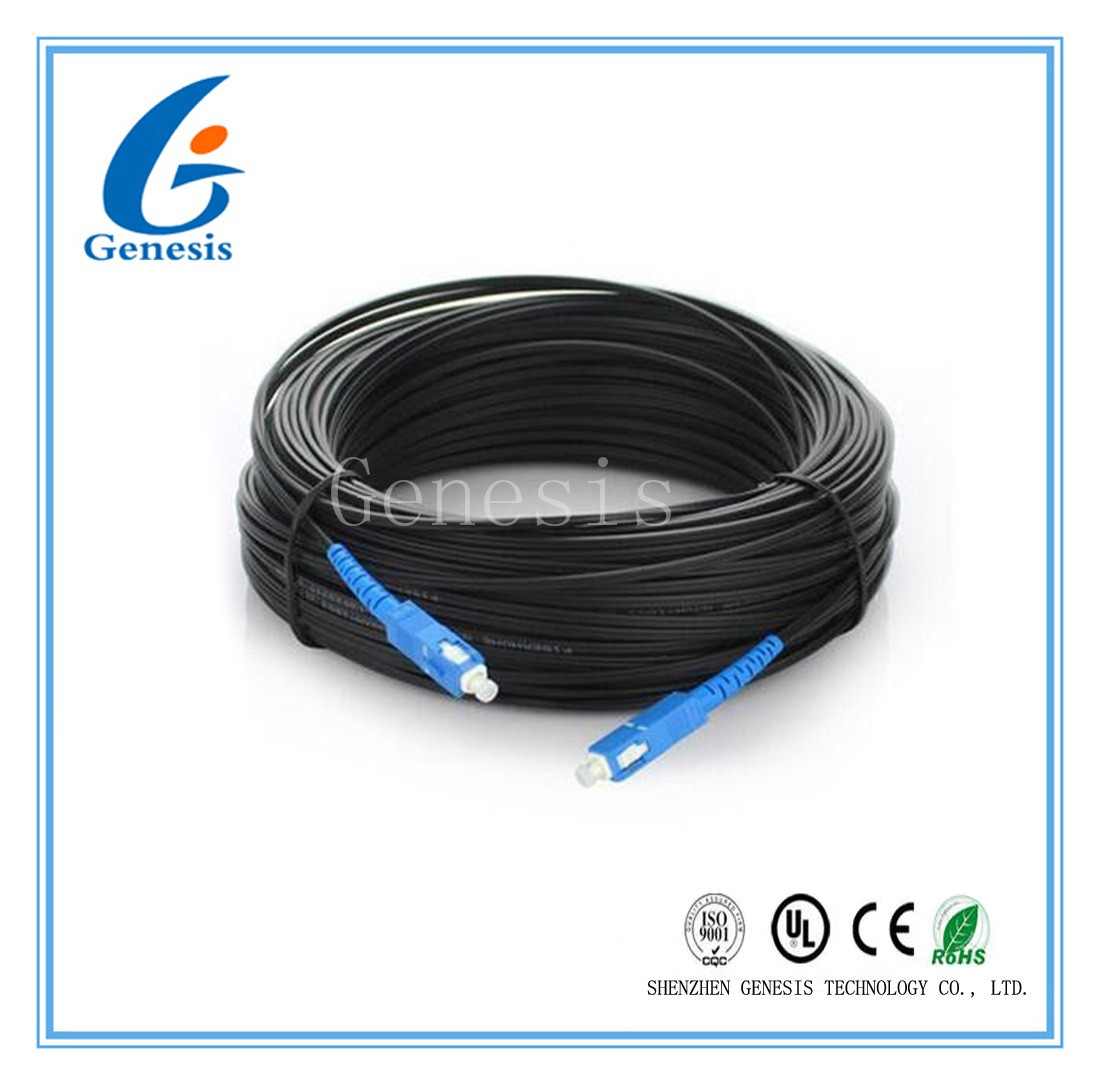

SC/UPC-SC/UPC G657A Fiber Cable 1-1000M
1. Features:
1. Complying with IEC, YD-T826/1996, NTT, YD/T826&YD/T895&YD/T896 standard.
2. Low insertion loss, high return loss
3. Small, light, high dense connection
4. Standard exact plastic material
5. High credibility and stability
6. Good in repeatability and exchangeability
2. Applications:
1. CATV,IPTV
2. Telecommunication networks
3. Active device termination
4. Metro
5. Local Area networks(LANs)
6. Data processing networks
7. Test equipment
8. Premise installations
9. Wide Area networks
3. Specifications:
Parameter | Unit | FC, SC, LC/ Armoured fiber patch cord | ST, MU | MT-RJ, MPO | E2000 | ||||||||
SM | MM | SM | MM | SM | MM | SM | |||||||
PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||||
Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
Cable diameter | mm | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, Φ2.0, Φ0.9 | Φ3.0, φ2.0, φ0.9 |
4. Order information:
1 Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2 Ferrule End-face: PC, UPC, APC
3 Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4 Cable Quantity: " 2C" means two cores
5 Cable Diameter: Φ3.0mm, Φ2.0mm, Φ0.9mm
6 Cable Length: 1, 2, 3 meter or customized
7 Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum]
