After-sales Service Provided: | Engineers available to service machinery overseas |
---|---|
Certification: | CE,ROHS,UL |
Voltage: | 110V/220V/50HZ/60HZ/1PH |
Cooling Capability(kw): | 1800W |
Brand Name: | BAODIAN |
Warranty: | 2 YEAR |
Weight: | 44 |
Dimension(L*W*H): | 59x38x74CM |
Model Number: | CW5300 |
Place of Origin: | China (Mainland) |
Type: | Air-Cooled |
Condition: | New |
Quick Details
Specifications
We are a recirculating water chiller Manufacturer with many year experience. Laser chillers include cw 3000, cw 5000, cw 5200, cw 5300, cw 6000, cw 6100, cw 6200, etc.
Features of Mini Water Chiller:
1. Mini water chiller of 1800W cooling Capacity, optional environmental refrigerant;
2. Small size, long working life and Simple operation;
3. ±0.3 oC precisely temperature Control;
4. the intelligent temperature Controller has 2 control modes, applicable to different applied occasions;
5. Optional heater and water filter.
Parameters
Introduction of CW 5300 Water Chiller for Laser Cutter
is high-precision compression refrigeration water Chiller, used for , with intelligent Temperature control, completed configuration, perfect protection and alarm System.
Water chiller are popular for its 2 Temperature control modes as constant temperature and intelligent temperature Control of packaged air cooled chiller. under intelligent mode, the water Temperature is adjusted according to ambient temperature. with that 1 key Solution, customers no longer need to worry about the water temperature Adjustment of seasonal changes.
Laser Chiller Unit Applications
one-stop Automatic intelligent temperature control: in different environment, user does Not need to change setting due to it will automatically switch to appropriate Operating temperature.
Applied to cool a Single 150W CO2 laser tube;
Applied to cool a Single 200W CO2 laser tube;
Applied to cool a Single 100W laser diode;
Applied to cool a Single 50W-75W solid-state laser;
Applied to cool a Single 100W CO2 RF laser tube,
Applied to cool a single 18KW CNC spindle or welding equipment.
CW 5300 Mini Water Chiller Specification
Parameter of mini water chiller cw 5300
Model |
CW-5300AG |
CW-5300BG |
CW-5300DG |
CW-5300AI |
CW-5300BI |
CW-5300DI | |
Voltage |
220V |
220V |
110V |
220V |
220V |
110V | |
Frequency |
50hz |
60hz |
60hz |
50hz |
60hz |
60hz | |
Current |
0.25~4.93A |
0.25~5.03A |
0.45~7.61A |
0.7~5.38A |
0.7~5.48A |
0.45~8.16A | |
Compressor power |
kW |
0.615 |
0.720 |
0.680 |
0.615 |
0.720 |
0.680 |
HP |
0.82 |
0.96 |
0.91 |
0.82 |
0.96 |
0.91 | |
Cooling capacity |
Btu/h |
6274 |
`7638 |
7266 |
6274 |
7638 |
7266 |
kW |
1.84 |
2.24 |
2.13 |
1.84 |
2.24 |
2.13 | |
Kcal/h |
1586 |
1931 |
1837 |
1586 |
1931 |
1837 | |
Refrigerant |
Type |
R22, R410a | |||||
Charge (g) |
650 |
750 |
680 |
650 |
750 |
680 | |
Temperature precision |
±0.3 oC | ||||||
Reducer |
Capillary | ||||||
Protection |
Overcurrent protection for Compressor, flow alarm, over temperature alarm | ||||||
Pump power |
kW |
0.05 |
0.01 | ||||
Tank capacity |
L |
12 | |||||
Inlet and Outlet |
Rp1/2" | ||||||
Max. Head |
m |
12 |
25 | ||||
Max. Flow |
L/min |
13 |
16 | ||||
Net weight |
kg |
44 | |||||
Gross weight |
Kg |
50 | |||||
Product dimension |
cm |
59x38x74 | |||||
Packing dimension |
cm |
67x51x93 |

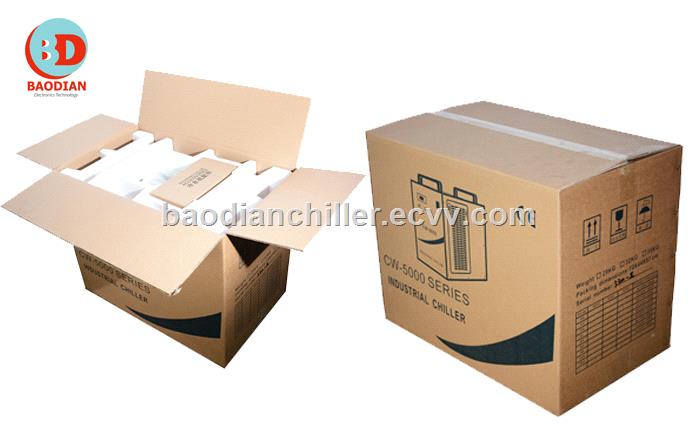

Laser Water Cooler Packing
Every laser water cooler is in a carton. If the user want
To make the packing solider, it uses wooden case outside.
