Flake ice can be used to keep fresh fruit, vegetable and meat. Flake ice is allowing to display perishable foods without fear of spoilage. Flake ice made up of thin pieces of ice and has no sharp edges, so cannot damage to refrigerated surfaces.

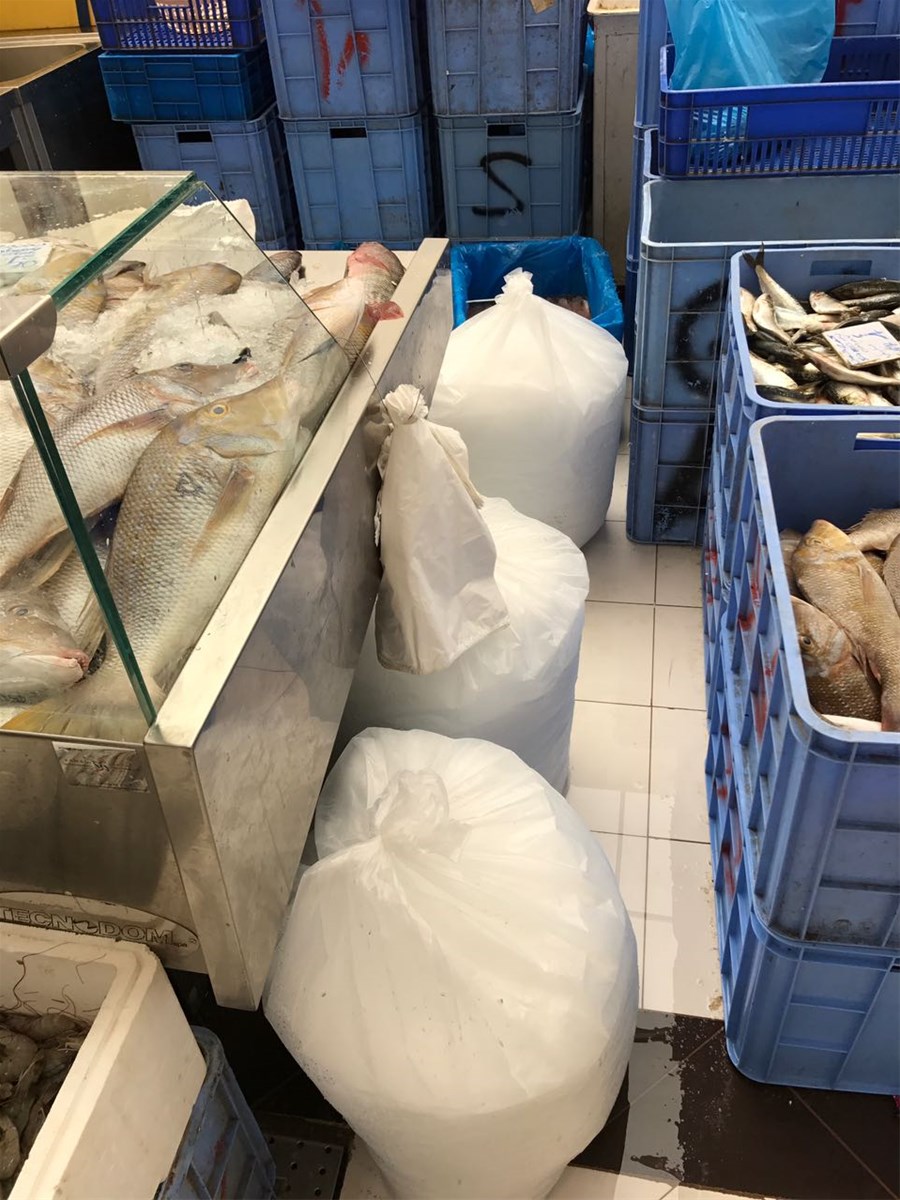

Flake ice is the ideal choice for fish markets, grocery stores, and healthcare facilities. It is also used in packing produce, poultry, concrete cooling, the pharmaceutical industry and scientific labs.


There are two type of flake ice machine: fresh water flake ice machine and sea water flake ice machine. Fresh water flake ice machine works with fresh water (drink water), sea water flake ice machine works with sea water (salty water). Icemac provides both of them. The flake ice produced by Icemac machines is sub-cooled to -4°C/-8°C. The thickness of the ice will be 1.5 – 2 mm.


Icemac flake ice machines are very simple to operate and made of durable materials that ensure high quality results with each and every use. Our flake ice machine can be also installed in container for easy transportation and maintenance. Icemac flake ice machines offer maximum cooling and a slower melt and save your operation cost by using low water and energy. If you think to combine quality and efficiently, they would be best for your operation.


Even in high ambient temperatures, Icemac flake ice machines are durable and reliable. with stainless steel construction and capacities ranging from 0.5 to 30 ton per day, Icemac ice machines deliver clear, fresh, sanitary flake ice and eliminate your dependency on ice suppliers.


Advantages

• Fast cooling & production
• High efficiency, energy saving and low maintenance
• Compact size and easy installation
• Long service life and reliable performance
• Environment friendly and low noise
• Easy to clean
• 2-year guaranty period

Common Features

• Vertical evaporator
• the machine is completely constructed by durable 304 stainless steel material, which has good quality to against rust and corrosion
• Top brand components
• Water cooling system
• Easy to use electronic control

Technical Specifications

Ice Making Capacity	30000 kg/24h
Cooling Capacity	150 kW
Ambient Temperature	30-40 °C
Water Input Temperature	Max. 20 °C
Condensation Temperature	45 °C
Ice Output Temperature	-4 °C / -8 °C
Ice Thickness	1.5-2.2 mm
Cooling Mode	Water Cooling
Refrigerant	R 404 A
Evaporator Type	Vertical
Compressor Brand and Power	DORIN or Equal, 4x40 HP, Semi – Hermetic
Power Supply	3P / 380V / 50 Hz
Power Consumption	119.6 kW/h
Dimension of Evaporator (W-L-H)	265x215x269 cm
Dimension of Ice Machine (W-L-H)	230x250x195 cm
Net Weight	5800 kg
Ice Storage Bin (Optional)	on Request
