| Item Type: | Downlights |
|---|---|
| Light Source: | LED |
| Brand Name: | SUNRAY |
| Certification: | CCC,CE,RoHS |
| Lamp Body Material: | Aluminum |
| CRI (Ra>): | 80 |
| Lamp Power(W): | 15 |
| Place of Origin: | China (Mainland) |
| Model Number: | SU291 |
| IP Rating: | IP54 |
| Working Lifetime(Hour): | 50000 |
| Working Temperature(℃): | |
| Color Temperature(CCT): | Warm White |
| Lamp Luminous Efficiency(lm/w): | 120 |
| Lamp Luminous Flux(lm): | 1800 |
| Input Voltage(V): | AC85-265V |
| Warranty(Years): | 2 |
| LED Light Source: | LED |
Quick Details
Specifications

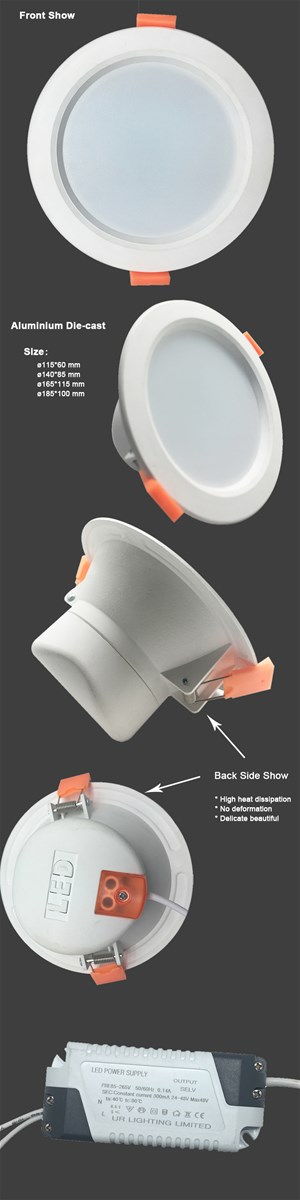

LED residential ligting 5w 10w 12w 18w 20w 24v LED down light 6 inch 8 inch 10 inch LED retrofit recessed downlight
| Item No. | Watt. | Voltage | Size | Cut-out | Housing material | Luminous effeciency | Luminous flux | LED Chip | Beam Angle | CCT | CRI | PF | IP Rating | Life Time | Housing color |
| (w) | (v) | (mm) | (mm) | (lm/w) | (lm) | (k) | (Ra) | (h) | |||||||
| SU171 | 5 | 110-260 | ?115*60 | ?100 | Aluminium | 90 | 450 | SMD 2835 | 90° | 3500-6000 | ≥76 | ≥0.45 | 20 | 20,000 | White |
| SU171 | 7 | 110-260 | ?140*85 | ?120 | Aluminium | 90 | 630 | SMD 2835 | 90° | 3500-6000 | ≥76 | ≥0.45 | 20 | 20,000 | White |
| SU171 | 9 | 110-260 | ?165*115 | ?140 | Aluminium | 90 | 810 | SMD 2835 | 90° | 3500-6000 | ≥76 | ≥0.45 | 20 | 20,000 | White |
| SU171 | 12 | 110-260 | ?185*100 | ?160 | Aluminium | 90 | 1080 | SMD 2835 | 90° | 3500-6000 | ≥76 | ≥0.45 | 20 | 20,000 | White |
