Product Summary:

   the tester is used to test sample test desk, take the corresponding size of the plate, a different test fixture, test samples, compressive and flexural strength and the capacity of Peel strength, tensile strength, test results can be used to evaluate sample test performance.

   Sample performance tester system is suitable for the determination of various materials on the tensile, compression, bending, shear, tear, peel, piercing conditions related to the mechanical properties and physical parameters.to do tensile, compression, three-point bending, four-point bending, shear, tear, peel, and various kinds of dynamic and static cycle test.



Description of equipment:

>Various test types: this tester can measure stress, strain, elongation, tear strength, peel strength, shear strength, yield point, elastic modulus etc. Could memorize 50 set testing data.



>LCD screen with back light: shows both force and displacement units are selectable.

>Set test speed, direction, stop mode. after setting, simply press one button to start testing. Could set auto return after finishing test. Grips are quickly changed.



>Various Port: connect with printer and export data directly. Or control UTM, display curves or data analysis with software on the UTM.



>Precise drive system: servo motor drive, dual ball screw, timing belt, etc.



>Protection: up and down limit protection, emergency stop, over load protection, over stroke protection.



Specifications:

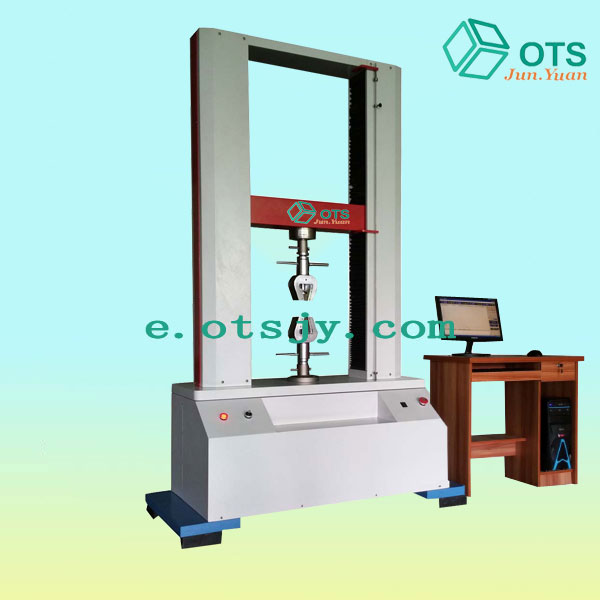

JY-1021 Universal Testing Machine
2.200kN load capacity, 0.5 class
3. Tensile, compression, bending

4.Four sets of fixtures

Standards:

BS EN ISO 13934-1, 13934-2, 13937-2, 13937-3, 13937-4, 13935-1, 13935-2, BS 3320, 4303 .ASTM D 434, 558, 2256, 2261, 2731, 3936, 4533, 4964, 5034, 5035, 5735 .ISO 2062, 5082, 9073.4, 10321, 13919 .



Technical Parameter:

1. Load yuan:2 tons (according to customer requirements)

2. Power resolution: 1/10000

3. the accuracy of power: 0.5% or less

4. the displacement resolution: 1/1000

5. Displacement accuracy: 1% or less

6. Speed range: 0.01 to 200 mm/min (special test speed can also be in accordance with customer demand customization)

7. Walking space: 800 mm (excluding fixture, according to the customer product requirements)

8. Instrument with the function of protection, prevent product fault cuts.

9.Testing Space:550 mm

10.Dimension:120x68x225(H)cm

11.Weight:900 kg

12.Power supply:3? 200~240 V AC,15A

13.PC-port:USB

If you have new requirements, please contact the ,Senior engineer to provide you with the most authoritative product testing scheme

Q1:Is your company a trading one or a factory?

A1:Our factory produces goods directly. We have  focused on the development  and manufacturing of  physical and environmental testing equipments for 18 years,besides,we have export experience of six years.



Q2:What about the quality of services and products?

A2:Berore shipping and delivering the goods,each product must be tested and tested for 100%.

Products using  training: we would provide a training video of each product in order to show you how to install and operate.

All products meet the standsrds of  ISO, ASTM, AATCC, BS, EN, DIN, JIS, GB and other requirements.

Q3:how long is the delivery time?

A3:Usually about 15 to 25 days.If we have stock, we can arrange the shipment within 3 days.

Kindly note that our producing and delivery time depend on specific item and the number of it.

Except for the special customization.

Q4:Distance transportation, the packaging is strong enough?

A4:Packing: the first layer uses bubble film,and the second layer uses vacuum film.We take away the air so as to make a vacuum environment after packing,which can avoid the problem of rust on the rough sea,and the outer packing using standard wooden cases.



Q5: What is the mode of payment?

A5:Generally we use telegraphic transfer,inculding 50% deposit and 50% before shipment.Other payment methods can be negotiated.

Q7:how warranties and after-sales services?

A7:Our products have 18-month warranty.

Life-long free technical support, be video through email.Besides, we can help you to repair your problem controller, even it's not from our factory Produce.

What you need to do is to send us the controller.

Outside the warranty period, professional after-sales service team will provide the perfect technical support, and help customers to solve problems when using our products, deal with guest problems and complaints, and in a professional and timely.
