| Application: | Laser Cutting |
|---|---|
| Certification: | CE |
| Brand Name: | YIZHOU |
| Graphic Format Supported: | AI,BMP,DXF,PLT |
| Applicable Material: | Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood,fabric |
| Laser Type: | CO2 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Model Number: | YZ1610 |
| Place of Origin: | China (Mainland) |
| Control Software: | RD |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Cutting Speed: | 600mm/s |
| Cutting Area: | 1600*1000mm |
| Cutting Thickness: | 15mm |
| Condition: | New |
Quick Details
Specifications

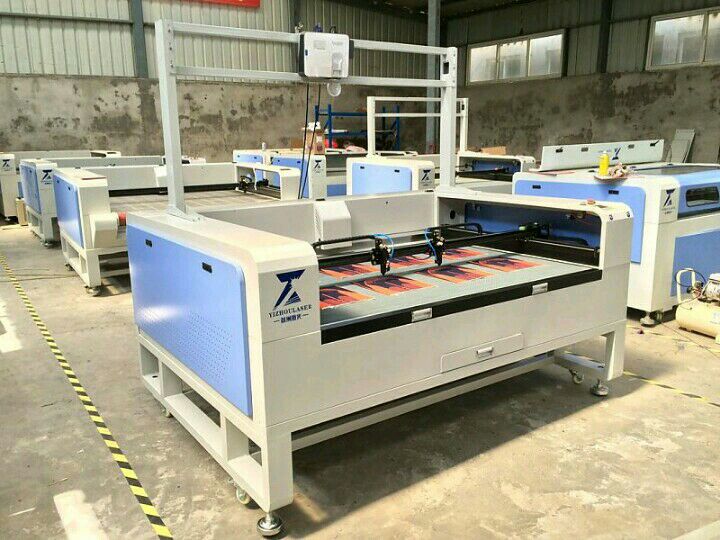

APPLICATIONMachine is professional for flyknit upper,shoes upper,knitting vamps etc fabric shoes upper cutting.
Two laser head,camera position. Fast working:1800pairs/per day. Max.Position quantity is 16.
PARAMETERS
Two laser head,camera position. Fast working:1800pairs/per day. Max.Position quantity is 16.
PARAMETERS
| Name | Model | ||
| Model | YZ1390-2 | YZ1410-2 | YZ1610-2 |
| Price FOB | Negotiation | Negotiation | Negotiation |
| Working size | 1300*900mm | 1400*1000mm | 1600*1000mm |
| Laser Tube | EFR100W | EFR120W-150W | EFR120W-150W |
| Laser Head no. | 2 | 2 | 2 |
| Max.Prodution capacity | 1800 Pairs/8hours/per day |
1800 Pairs/8hours/per day |
1800 Pairs/8hours/per day |
| Packing size | 1.95*1.95*1.3m | 2.05*2.05*1.3m | 2.2*2.15*1.3m |
| Water chiller | CW-5200 | ||
| Laser foucs Lens | II-VI 25mm dia. | ||
| Laser reflected lens | II-VI 20mm dia. | ||
| Camera | BENQ | ||
| Max.Projecting no. | 16 | ||
| Transmission | Linear rail+ONK belt | ||
| Air fan | 550W*2 | ||
| Table | Honey-comb | ||
| Air compressor | 0.8Mpa non-oil low-noise compressor | ||
| Motor | Stepper motor Leadshine | ||
| Driver | Stepper driver leadshine | ||
| Controller | Trocen LaserCAD | ||
| Max.Engraving speed | 64000mm/min | ||
| Max.Cutting speed | 36000mm/min | ||
| Voltage | 220V/50HZ/60HZ | ||
| Working Temperature | 0-45 degree | ||
| Support format | BMP,AI,PLT,DST,DXF | ||
| Repeat Position Precision: | ≤±0.05mm | ||
