Products Description:

High Speed Corrugator Belt with Kevlar Is a consistent development based on the woven high speed corrugator belt range. SPecially desgin for frequently changing paper widths with super tear resistance.

High Speed Corrugator Belt with Kevlar-–Features

Suitable as top belt with high speed (above 150m/min ) production

Heat and Super tear resistance

Kevlar edge to reinforce the belts,reduce wear substantially and ensure a longlife time.

Particularly for frequent changes of board width

More Popular in the all corrugators plant.

High Speed Corrugator Belt with Kevlar Specification

Product	High Speed Corrugator Belt with Kevlar
Thickness	9mm
Width range	1000mm - 3200mm
Length	80 meters
Heat-resistance	240℃ (the kevlar edge upto 350℃)
Tensile strength	70Mpa
Coefficient of friction	≥ 0.40μ
Weight per unit	(7.5±0.3)kg/㎡
Air-permeability 40mm water Column	2.0m3/㎡ min
Seam	Hot JAW lacing/Clipper with rubber coated
Edge	100mm or 200mm inwoven aramid edge reinforcement (kevlar)
Suitable position	Top belt
Lifetime	90 million meter
Used on all corrugators            high tearing resistance Long life time running             High abrasion resistance Moisture absorption              Heat resistance           Low noise

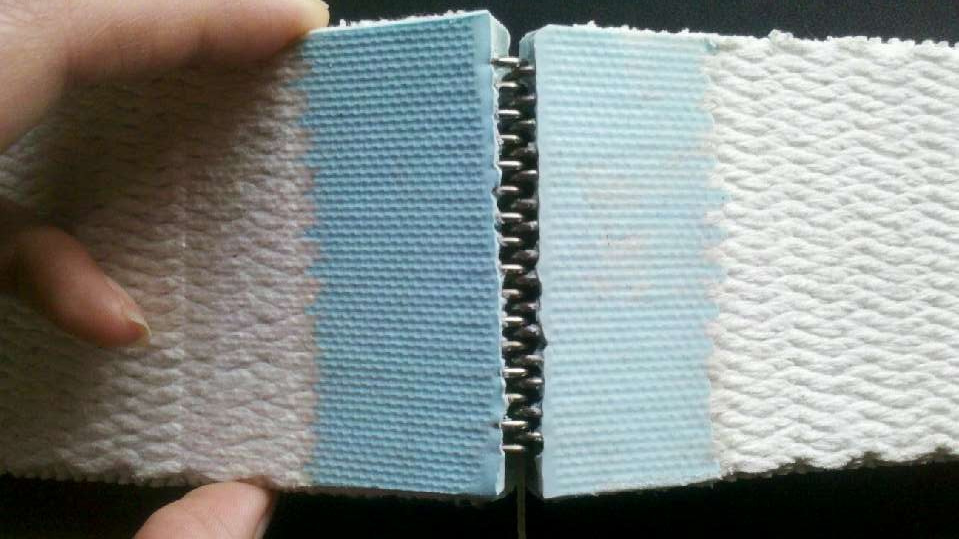

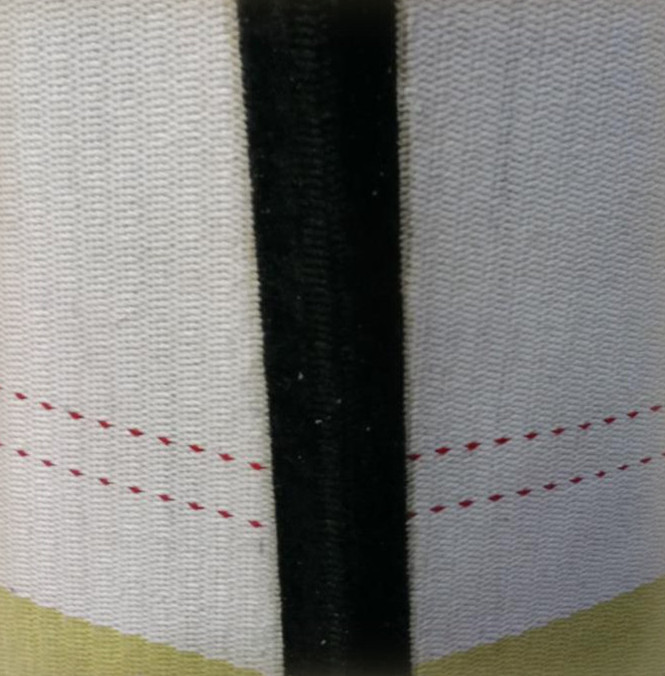

High Speed Corrugator Belt with Kevlar Seam:

All the clipper import from American Fasteners

Hot Jaw Lacing

Rubber coated
