| Application: | Laser Engraving |
|---|---|
| Certification: | CE,ISO,SGS |
| Brand Name: | INJ6040 |
| Graphic Format Supported: | AI,BMP,DXF,PLT |
| Applicable Material: | Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Model Number: | inj6040 |
| Place of Origin: | China (Mainland) |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Engraving Speed: | 1000mm/s |
| Engraving Area: | 600*400mm |
| Laser Type: | CO2 |
Quick Details
Specifications

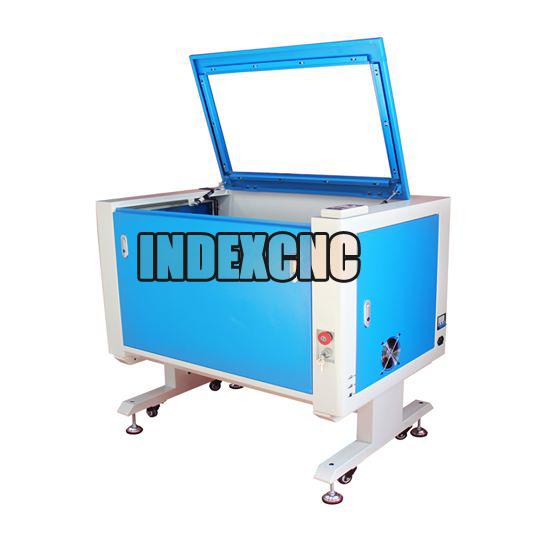

6040 small size laser engraving machine, laser engraver
High lights
1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
2. USB Interface, U-Flash Disk Supported, Can work without a PC.
3. Air Assist, Remove heat and combustible gases from the cutting surface.
4. Embedded Exhaust Fan, Easier intall, Safer transport.
5. Rotary Axis, Engrave any cylindrical object.
6. Cellular platform, Leave no chippings on working area.
7. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.
8. Water Cooling and Protection System.
9. Lsser position.
10. Emergency Stop Button.
11. Larger Size, 400*600mm working area.
12.
13. Drag - and - chain transmission line
Technical Parameters of mini laser machine
Laser Power |
50W, 60W, 80W, 100W |
Supply Voltage |
110/220V±10% ,50/60Hz |
Max width |
600mmx400mm |
Working table |
Honeycomb |
up and down size |
250mm |
Table control mode |
Manual/Electric |
Max engraving Speed |
1000mm/s |
Max cutting speed |
600mm/s |
Locating Precision |
<0.01mm |
Min shaping character |
Character 2x2mm ,Letter 1x1mm |
Resolution |
0.0125mm |
Cutting thickness |
0-15mm |
Control Configuration |
DSP |
Data transfer Interface |
USB |
System Environment |
WINDOWS XP/Win7/8 |
Graphic file format |
BMP,PLT,AI,CDR,DXF |
256 Color separation output |
Support |
360 degree slope engraving |
Support |
off line working |
Support |
Cooling Way |
Water Cooling |
Operating temperature |
5°C -35°C |
Water protecting sensor and alarm |
Yes |
Net Weight |
120Kg |
Machine dimension |
1150x850x1000mm |
Applied Material of mini laser machine
Details of mini laser machine:
Video show of mini laser machine:
