| Brand Name: | Hongfeng VAC |
|---|---|
| Coating: | Vacuum Coating |
| Substrate: | Steel |
| Type: | Coating Production Line |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | 1 year |
| Certification: | CE |
| Weight: | 3-15 tons |
| Dimension(L*W*H): | 5*4*3 meters |
| Power(W): | 90KW |
| Voltage: | 380V |
| Model Number: | ARC-1200 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Physical Vapor Deposition Multi Arc Cathodic Deposition Vacuum Coating Machine/Equipment
HS Code |
8543300090 |
Available coatings |
Decorative coatings by arc deposition, could be silver, Golden, rose golden, brass, copper, bronze, black, etc |
Vacuum Limit |
3.010-4PA |
Vacuum recover time |
8 minutes from atmosphere to 5.0X10-2PA(at room temperature around 20°C, Unloading &clean status) |
Compressing Air |
0.5M PA -0.6M PA |
Cooling Water Cycle |
Closed trap water chiller as required for the system. |
Total Cycle time |
from 30 minutes to hours, it depends on the processes |
Power Supply |
Input supply: |
Total Power Supply |
about 168 Kw |
Working Power Consumption |
about 80-100 Kw/h |
Workpiece shelf rotating way |
Planetary rotation |
Carousel and Jigs | |
Jigs would be designed according to the specification of substrates. the cost is not included in the quotation. | |
Cooling water circuitry, gas distribution for all Process gases and pneumatic valves or shutters | |
Process and Operation Control: | |
Manually operation & Automatic working mode | |
Phase protection and pumping sequence controller | |
Controls for gases | |
Controls for vacuum pumps and valves | |
Controls for vacuum measurements | |
Controls for rotary carousel | |
Controls for Arc deposition unit and arc power Supplies, bias power supplies | |
Controls for emergency and interlock | |

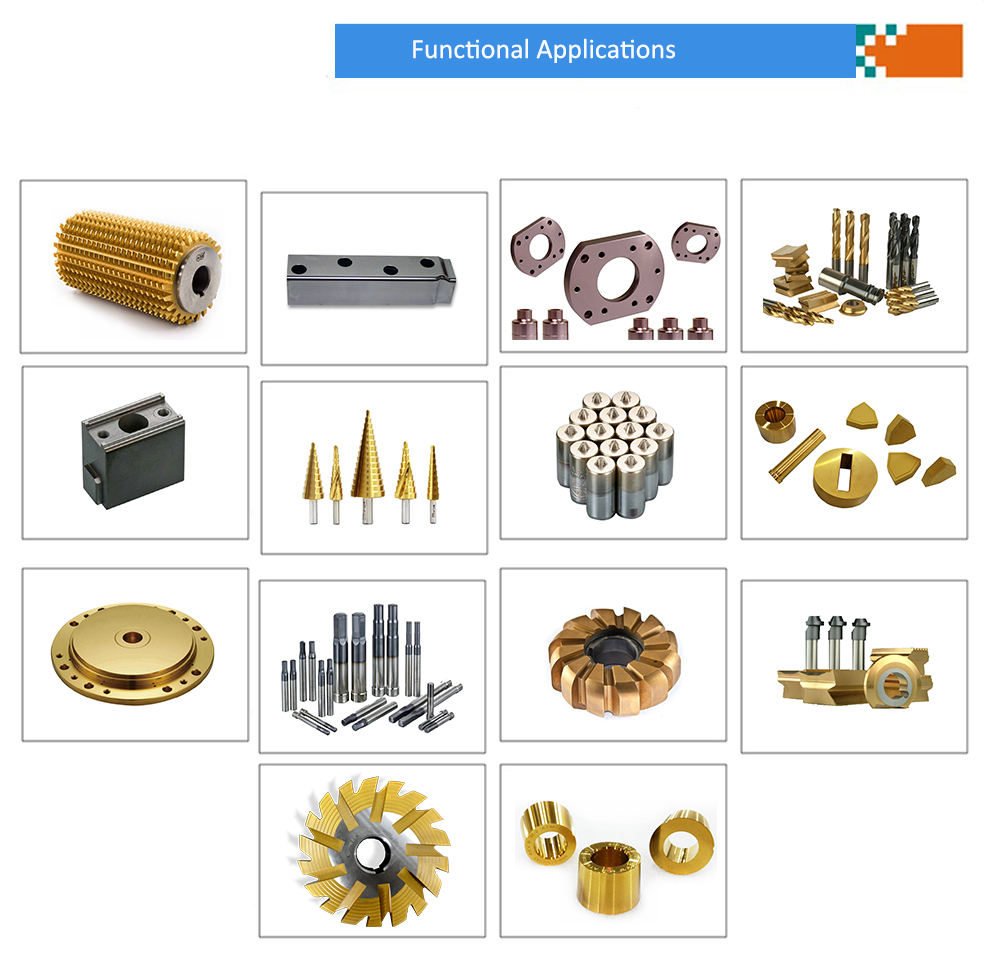

Applications:
