| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Brand Name: | becarve |
| Condition: | New |
| Certification: | ISO9001 |
| Voltage: | 380V |

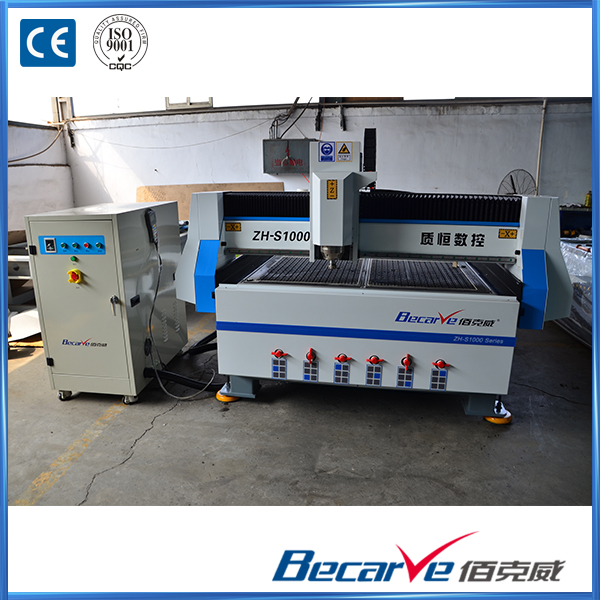

| Model Number: | ZH-S1000 |
| Place of Origin: | China (Mainland) |
| Dimensions(L*W*H): | 3070 X 2140 X 1600mm |
| X/Y axis travel: | 1300 X 2500mm |
| Z axis travel: | 100mm |
| Maximum speed of running: | 40m/min |
| Maximum speed of engravin: | 20m/min |
| Resolution: | 0.05mm |
| Reposition accuracy: | 0.01mm |
| Weight: | 1800Kg |
| Spindle power: | 5.5Kw |
| Spindle speed: | 0-24000r/min |
Quick Details
Specifications
1. 5.5 kw water cooling spindle(air cooling Spindle optional)
2. Rack drive, equipped with Planetary reducer, transmission speed up to 40m/min
3. Products comply with ISO9000 certification quality requirements
4. Using Taiwan HIWIN guide Rail, running smoothly
5. Unique gantry side wall Design, dual motor drive, servo motor
6. Equipped with six control Vaccum platform
7. Equipped with 7.5 Kw water Circulation vacuum pump
8. Guide way oiling system to Extend service life
9. Equipped with original Weihong control system NK105, can add the full touch screen touch system
10. Equipped with our patent products professional cooling chiller
