| Power Souce: | Gasoline Engine |
|---|---|
| Type: | Manual Pallet Truck |
| Brand Name: | YULING |
| Condition: | New |
| Year: | 2017 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | ISO9001 CCC ISO14001 |
| Overall Dimensions: | 4105*1475*1910 |
| Model Number: | BJ5030ZXX-E1 |
| Place of Origin: | China (Mainland) |
| product name: | hook lift garbage truck |
| waste volume: | 3cubic meters |
Quick Details
Specifications

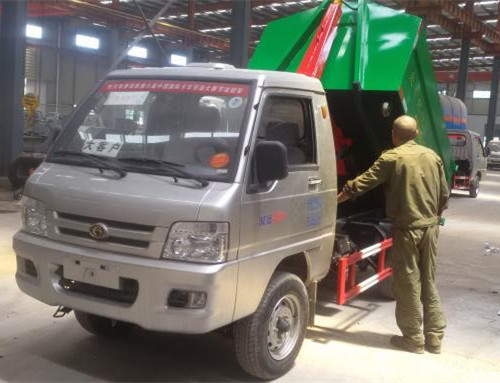

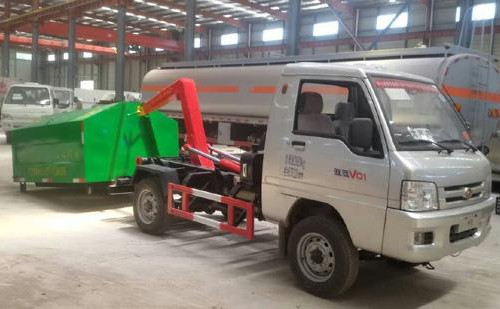

Price of 3cbm small hook lift garbage truck to Mongonia
Mian specifications
Mian specifications
Foton Yiling hook lift garbage truck | |||
Name |
Hook lift garbage truck |
Model |
BJ5030ZXX-E1 |
Outline size(mm) |
4105*1475*1910 |
Curb weight(kg) |
2620 |
Van size(mm) |
2000*1500*1000 |
Rated loading(kg) |
1200 |
Volume(Cubic) |
3 |
Seats |
3 |
Max speed(km/h) |
90 |
Wheelbase(mm) |
2370 |
1, hydraulic handle control, one control hook arm, one Control box lock. 2, Japan Technology hydraulic cylinder system. 3, with one 3cubic garbage bucket, can be equipped more Garbage buckets with one truck. | |||
Chassis parameters | |||
Chassis model |
BJ1030V4JV2-X1 |
Chassis manufacturer |
Foton auto company |
Fuel type |
Gasoline |
Tires |
4 |
Tire model |
165R13LT |
Front/rear hang(mm) |
895/840 |
Emission standard |
Euro4/5 |
Steel spring |
5/4 |
Others |
Futian Yu Ling van cab, Liuzhou Wuling 62 horsepower Gasoline engine, temporary workers 5 gearbox, 1.5 tons front axle, 3 tons Rear axle, vacuum tire. | ||
Engine parameters | |||
Engine model |
Engine factory |
Displacement(cc/ml) |
Power(HP) |
LJ465Q-2AE |
Liuzhou Wuling Liuzhou Power Co., Ltd. |
1051 |
62 |
