| Use: | Truck Trailer |
|---|---|
| Brand Name: | LIANGXIANG |
| Max Payload: | 60T |
| Size: | 12.4*2.5*1.55 METERS |
| Material: | Steel |
| Use: | TRANSPORT |
| Model Number: | LX17601 |
| Place of Origin: | China (Mainland) |
| OEM No.: | Optional |
| Certification: | |
| Type: | Semi-Trailer |
| Max Payload: | 45 - 100 Tons |
| King pin: | 2"(50mm)or3.5"(90mm) JOST |
| Axle Brand: | 13TON Axle FUWA Brand |
| Landing Gear: | Standard 28Ton |
Quick Details
Specifications

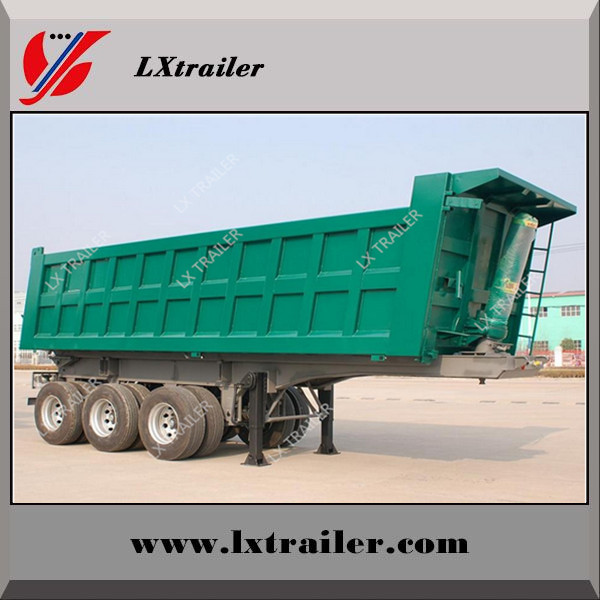

3 axles tipper side dump semi trailer for heavy duty transporation
Main Specification
Function
Sand & gravel or other cargo transporting
Overall dimension
11.000x2500x3300mm
Volume
Approx. 38 cbm
Loading weight
50,000Kg
Frame
up: 16mm
Middle: 10mm
Bottom: 18mm
Material: Q345B
King pin
JOST 90#
Land gear
28T
Axle
FUWA 3X13T
Suspension type
American Type
Leaf spring
10/10/10
Tire
12R22.5, 12pcs, Triangle Brand
Rim
9.0-22.5 12pcs
Side wall details
4mm
Platform Thickness
6mm
Brake Chamber
6 Double
Cylinder
6+1
Spare wheel carrier
2 pcs
Tool box
1 pcs
