| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | ISO9001/CE |
| Brand Name: | BECARVE |
| Condition: | New |
| Weight: | 1000KG |
| Dimension(L*W*H): | 3070*2100*1480mm |
| Rated Power: | 800w |
| Voltage: | 220v/50hz |

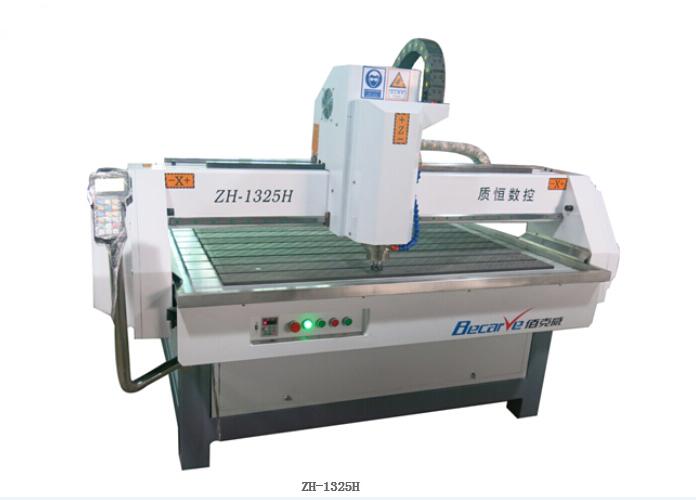

| Model Number: | ZH-1325H |
| Place of Origin: | China (Mainland) |
| X/Y axis travel: | 1300*2500mm |
| Z axis travel: | 120mm |
| Maximum speed of running: | 30m/min |
| Maximum speed of engraving: | 20m/min |
| Maximum feed thickness: | 100mm |
| Resolution: | 0.01mm |
| Reposition accuracy: | 0.1mm |
| Command: | G code*u00*.PLT* |
| Software operating environment: | Windows XP/7 |
Quick Details
Specifications
1.Working Area:1300*2500mm
2.Spindle Power:4.5kw water cooling spinlde,24000RPM(air cooling spindle optional)
3.Taiwan Hiwin sliding block and guide way
4.Automatic Cooling system for material
5.Automatic Oil feeding system
5.WEIHONG DSP controller
6.Stepper Motor
7.3kw Dust collect
8.Macine Power: 800w/220v
9certification:CE and ISO9001

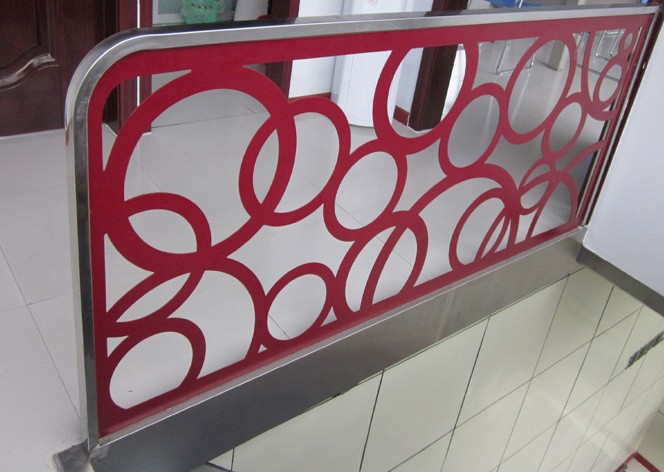

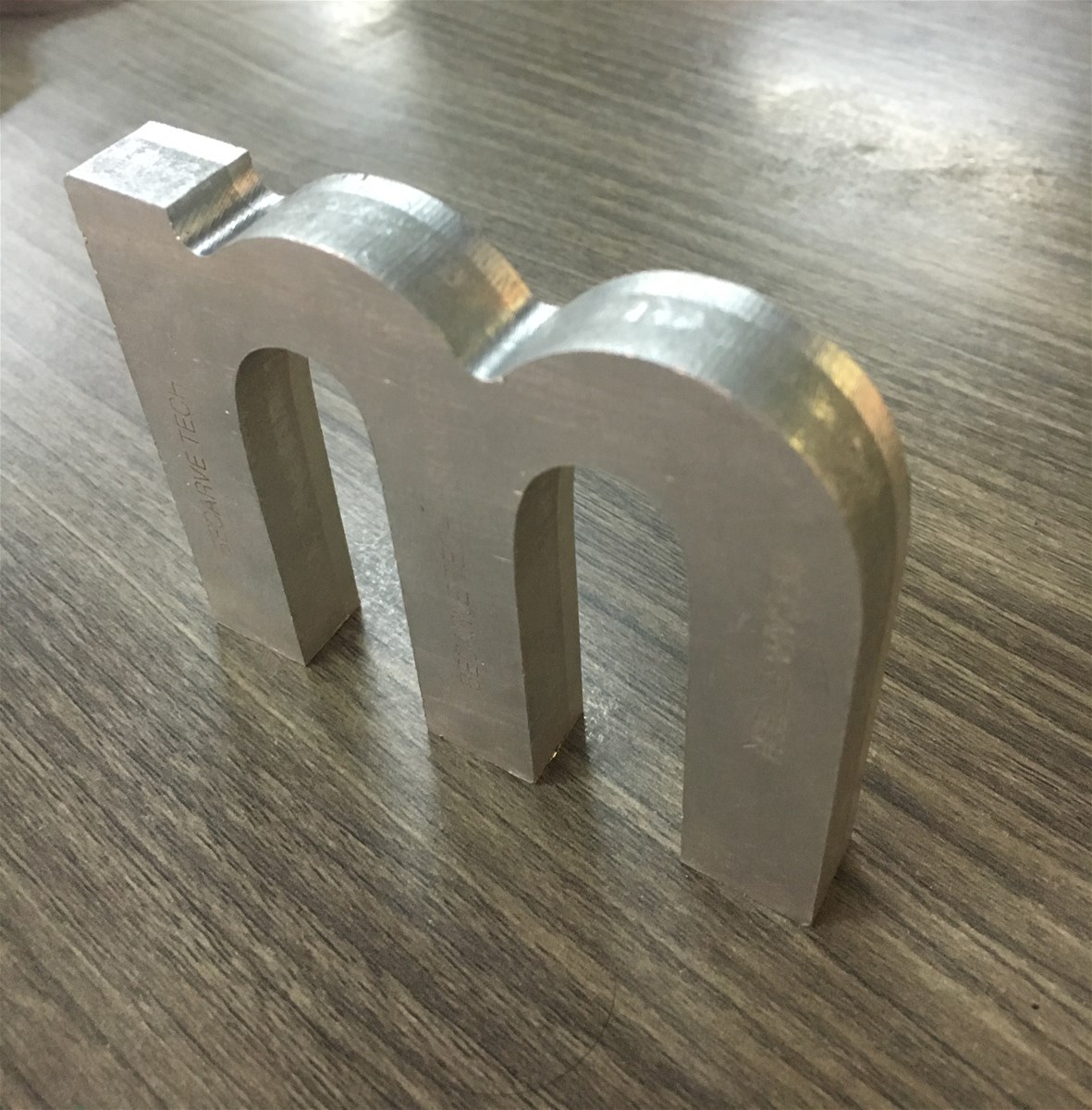

10.Apply for stainless steel, aluminum, copper, GI, wood, Acrylic, MDF, PVC ect metal and non-metal material
11.with one year Guarantee
