| Application: | Laser Engraving |
|---|---|
| Certification: | CE,SGS |
| Brand Name: | signstech |
| Graphic Format Supported: | BMP,GIF,JPEG,PCX,TGA,TIFF,PIT,CDR,DWG,DXF |
| Applicable Material: | Acrylic,Crytal,Leather,plastic,Plywood,Rubber,Wood |
| Condition: | New |
| Place of Origin: | China (Mainland) |
| Cooling Mode: | Water Cooling |
| Laser Type: | CO2 |
Quick Details
Specifications
| Remarks: | Latest Version,1300x1000mm, Reci 90w, CE Certificate,100W,130W,150W optional. |
Parameter:
Model |
1310SP |
Working Area |
1300x1000mm 4.2ftx.3.2ft |
Laser Power |
Reci S2 90W rated power, Max power 100w |
Laser Strength Control |
PWM Control |
Max Working Speed |
0-1000mm/s Numeral timing |
Resolution Ratio |
0.025mm |
Cutting Bed |
Detachable Alu Formation |
Resetting positioning accuracy |
±0.01mm |
Cutting Depth |
0-15mm Acrylic |
Minimum Shaping Character |
1mm, Chinese character 2mm |
Interface |
USB |
Power supply |
220V±10% 50HZ or 110V±10% |
Gross power |
<1500w |
Supported Image Format |
BMP,GIF,JPEG,PCX,TGA,TIFF,PIT,CDR,DWG,DXF |
Cooling system |
CW-3000 water chiller |
Laser Tube Lifetime |
10000h |
Machine Net Weight |
400KG |
Machine Dimensions |
1850mmx1500mmx1130mm |
Package Dimensions |
1950mmx1600x1300mm,550kg |
Application |
Arts and Crafts processing, Advertisement and Decoration, Clothing Cutting, Leather processing, Model and printed hectograph making. Photoelectric film, flexible circuit board and etc. |

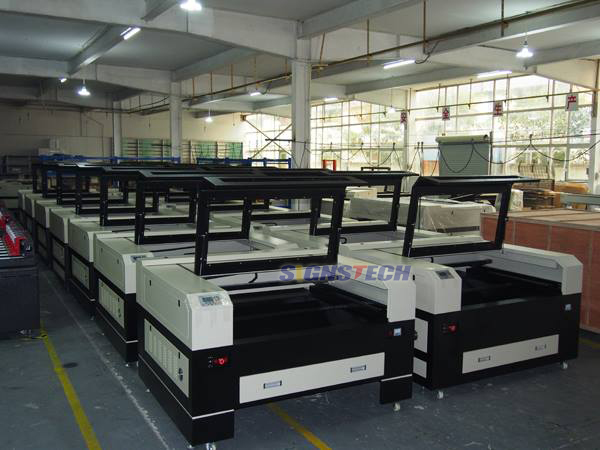

Factory:
