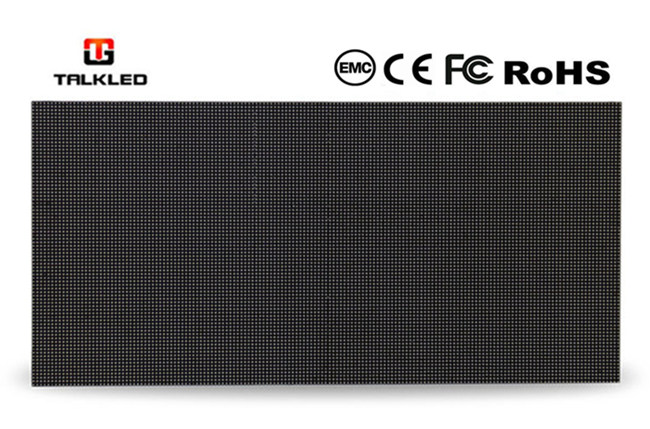

High Definition Indoor Full Color LED Display Screen
P3.75 Aluminum Cabinet 360x720mm with ratio 1:2
Supplying fixed installation cabinet and rental cabinet with fast lock.


Features:

Thin light aluminum cabinet 360x720mm.
Front service available.
High brightness LEDs, High refresh rate MBI IC driver with PWM.
4-layers thick PCB board, more durable.
IP66 waterproof, ok to work underwater.
Special perfect ventillation without fan inside cabinet.
High quality slim power supply.
Easy installation and maintenance.



Technical details:

Parameters / Product Model	S-PH3.7FI
Working Environment	Indoor
Pixel Pitch (mm)	3.75mm
Pixel Configuration	SMD2020
Pixel Matrix per panel	96×192
Panel Dimensions (HXW) (mm)	360×720mm
Panel Material	Aluminum
Panel IP Rating (Front and Rear)	IP54/IP54
Panel Weight (kgs/PC)	7.5kg
Panel Thickness	60mm
Panel Installation type	Fixed / Rental
Installation Access	Back Access
Color Grayscale (Bit)	16
Gray Scale per Color (level)	65536
Refresh Rate (Hz)	2880Hz
Driving Type	1/12 scan
Monitoring and Detection	Power Status, Receiving card Status, Temperature, Humidity, Moisture, etc
Signal Transmission Distance  (m)	CAT5 Cable: <100 m; Single mode Fiber: <10 km
Brightness (CD/㎡)	1400
Calibration	Brightness Calibration and Chromatic Calibration
Optimal Horizontal Viewing Angle (°)	140
Optimal Vertical Viewing Angle (°)	140
AC Input Voltage (V)	90~240V
AC Input Frequency (Hz)	50/60Hz
MAX power Consumption (W/Panel)	149W
Average power Consumptio (W/Panel)	45W
Storage Temperature (℃)	﹣40 ℃~﹢60℃
Operating Temperature (℃)	﹣40 ℃~﹢60℃
Storage Humidity (RH)	10%~95%
Operating Humidity (RH)	10%~95%
Lifetime Typical Value (hrs)	100000

Package:

Carton with inner foam protection.
4 cabinets per carton, 83x41x47cm, 33.5kg/carton.
Flight case package for rental projects, 5 cabinets per case, 77x43x45cm.


CE EMC LVD ROHS CERIFICATED
