| Working Frequency: | 433MHz |
|---|---|
| Port Number: | 1 |
| Type: | RF |
| Brand Name: | Lensen |
| Screen: | no |
| Model Number: | LS-RAI02 |
| Place of Origin: | China (Mainland) |
| inputs: | 2 analog inputs |
| communication port: | RS485 |
| control distance: | 2km |
Quick Details
Specifications
the following example is for you reference.
Features:
Wireless RTU, support 433MHz or 450MHz, 470MHz
2 analog inputs
with a RS485 port
Support Modbus RTU protocol
Technical details: Frequency 433MHz or 450MHz or470MHz Power output 1W Products 2AI Input type 4-20mA or 0-5V or 0-10V Output type 4-20mA or 0-5V or 0-10V Resolution ratio 24bit Accuracy ±0.02% Power supply 9-36V DC usually use24V DC Interface RS-485 Channel No. 16ch default, can program via DIP switch Antenna Sucker antenna with 1.5m cable Working temperature -35 °C ~ +75°C industrial Working humidity 10%-90% relative humidity, no condensation Dimension 115×90×40(mm) Fix way STandard3.5 inch industrialDINGuild rail
Operation method of useage:

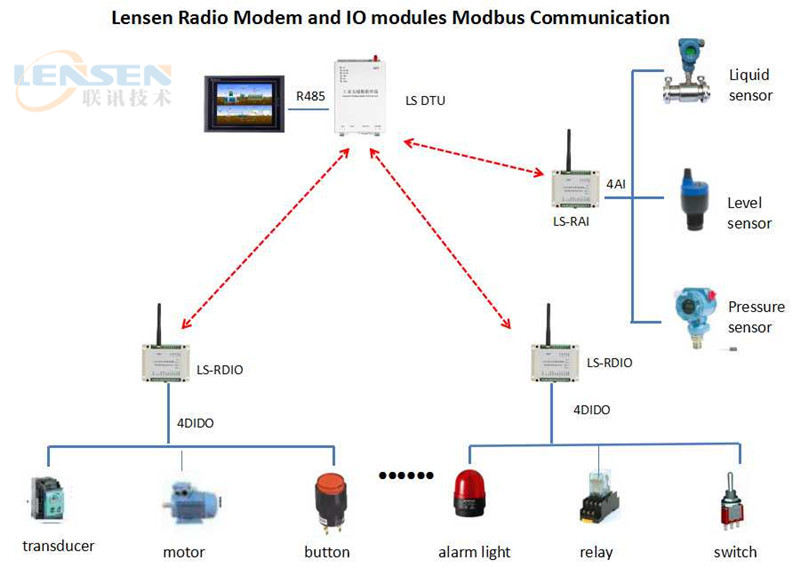

There are 2 application way
1. Link via reduction, one side input, one side output
2. Link via RS485 communication
Package:
Standard
