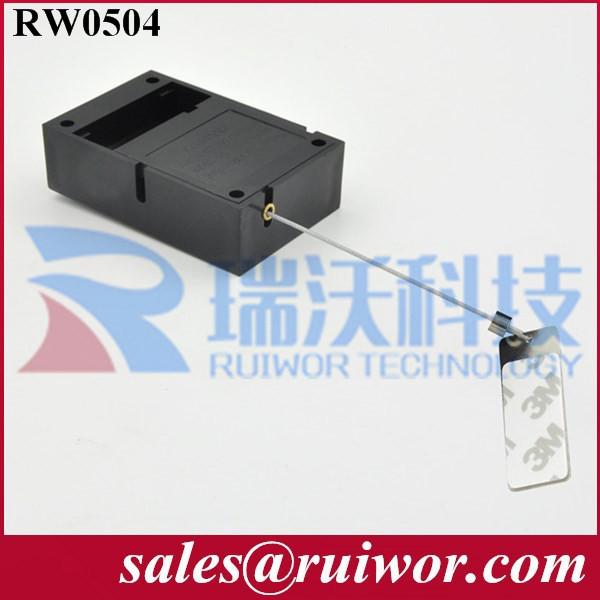

RW0504



 also known as Positioning Cord, Resetting Cord, recoilers, security tether and pull-box, it can be broadly used for point of retail product positioning, purchase security, wire harness positioning in electronic equipment, equipment counterbalancing, signage support, and product or parts feeding. for example, it can be used in supermarkets, such as Wal-Mart Electronic products display and some other daily products display.



RW0504  Has maximum options on exit locations and retracting forces. a cuboid shape attain a Nice Design, the RW0504  also has many options on cable length and diameter.



RW0504  Cable Exit Locations:

We provide 4 cable exit location possibilities for this  that is because the best performance and life are achieved when the cable is extended straight out of the box.



the RW0504  Exits are shown as following:

RW0504  Specifications:

RW0504 Model Number:	RW0504
RW0504  Supply Ability:	80000 pcs per week, production capacity Can raise for Urgent order.
RW0504  Materials:	Box is made of ABS plastic, with retractable Spring built Inside and stainless steel cable Winding onto the reel inside.
RW0504  Box Size:	7.1x4.5x2.1 Cm
RW0504  Gross Weight:	45 g/PC
Available Retracting forces:	1/3LB, 1/2LB, 1LB, 1.2LB or customize
RW0504  Box Colors:	Black / White / Customization
RW0504  Cable Colors:	Black/ Transparent nylon cover the stainless steel cable.
Cable Exit Locations:	Four options, A / B /C /D Exits
RW0504  Cable length:	96 cm (Max:140 cm)
RW0504  Cable Diameter:	1.1 mm (0.83mm~1.5mm)



RW0504  Can work together with any  Connectors or mounting base / holder (as shown on our website) from us. the box can be fixed on the back of display cabinet by screw or adhesive tape.
