| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 year |
| Certification: | CE |
| Brand Name: | Anyang Forging Press |
| Condition: | New |
| Weight: | 1000 kg |
| Dimension(L*W*H): | 1035*654*1890 mm |
| Voltage: | 220-480 V |
| Model Number: | Y04-25 |
| Place of Origin: | China (Mainland) |
| Machine typre: | Y04-25 |
| Nominal force: | 25 ton |
| Working speed (25MPa): | Max. 7 mm/s |
| Downward Idle speed: | 40 mm/s |
| Upward Idle speed: | 80 mm/s |
| Distance between upper and lower work table: | 400 mm |
| Max stroke: | 300 mm |
| Work table (L*W): | 300*200 mm |
| Height of work surface to ground: | 710 mm |
| Rated system pressure: | 25 MPa |
Quick Details
Specifications

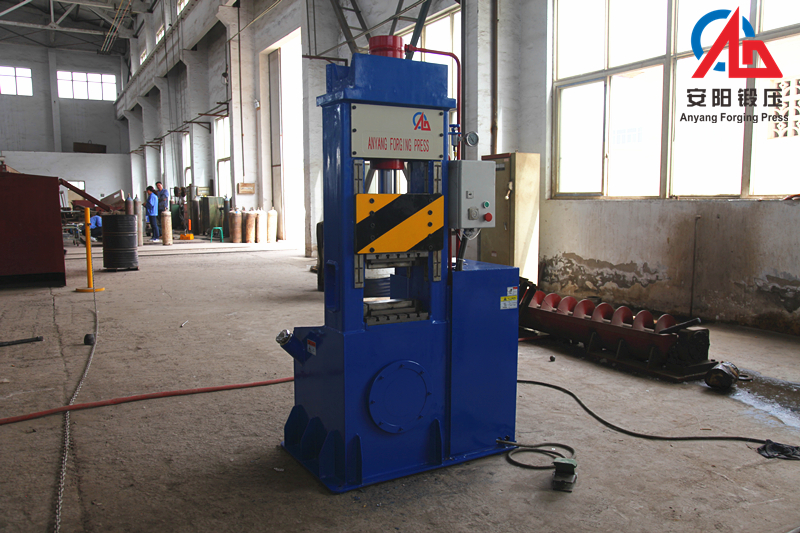

Introduction of Y04 series hydraulic forging press

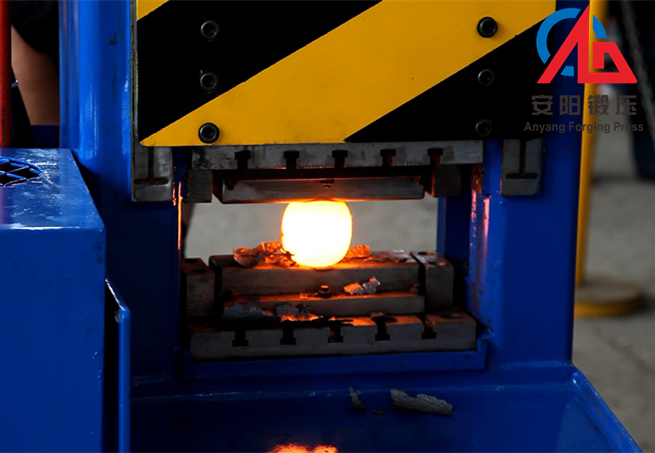

Hydraulic forging press is general forging press, used for different shapes of open die forging parts and forging processes, such as extension, upsetting, punching, heat cutting, forging, bending, twisting, punching, blanking, bending, correction and shallow drawing and other processes, applied in the fields of automobile, tractor, motor, electric appliance, instrument, daily hardware and defense industry.
Parameter of hydraulic oped die forging press machine:
Machine type: Y04-25
Nominal force: 25 ton
Working speed (25MPa):≤7 mm/s
Downward Idle speed: 40 mm/s
Upward Idle speed: 80 mm/s
Distance between upper and lower work table: 400 mm
Max stroke: 300 mm
Work table (L*W): 300*200 mm
Height of work surface to ground: 710 mm
Pressure cylinder: Diameter:φ115/φ80, stroke:300
Motor for hydraulic system: YL100L24-4B35 (N=3KW,n=1400rpm)
Pump for hydraulic system: 25YCY14
Power supply: Single phase AC220V±10% 50HZ
Rated system pressure: 25 MPa
Hydraulic oil: YB-N46 antiwear hydraulic oil
Outside size(L×W×H): 1035×654×1890 mm
