| Fuel Type: | Diesel |
|---|---|
| Emission Standard: | Euro 3 |
| Horsepower: | 251 - 350hp |
| Condition: | New |
| Drive Wheel: | 6x4 |
| Model Number: | ZZ1257M4647C |
| Brand Name: | JDF |
| Place of Origin: | China (Mainland) |
| Size: | 10025x2500x3600mm |
| Tank Capacity: | > 10000L |
| Transmission Type: | Manual |
| Type: | Rescue |
| curb weight: | 14800kgs |
| wheelbase: | 4600+1350mm |
| engine power: | 366 |
Quick Details
Specifications

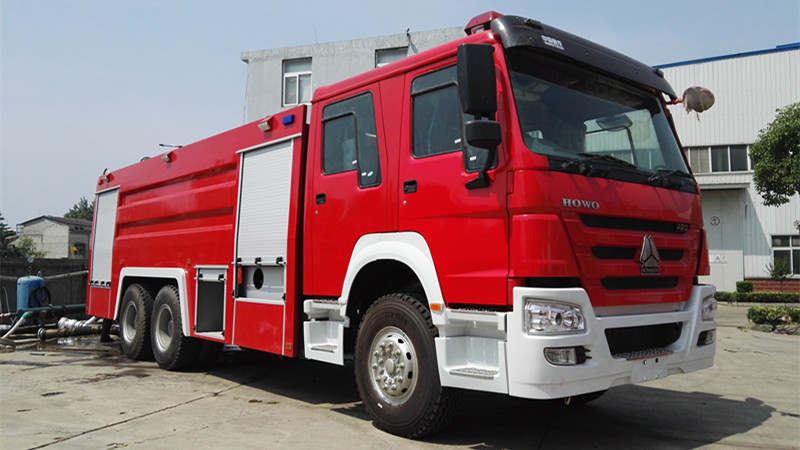

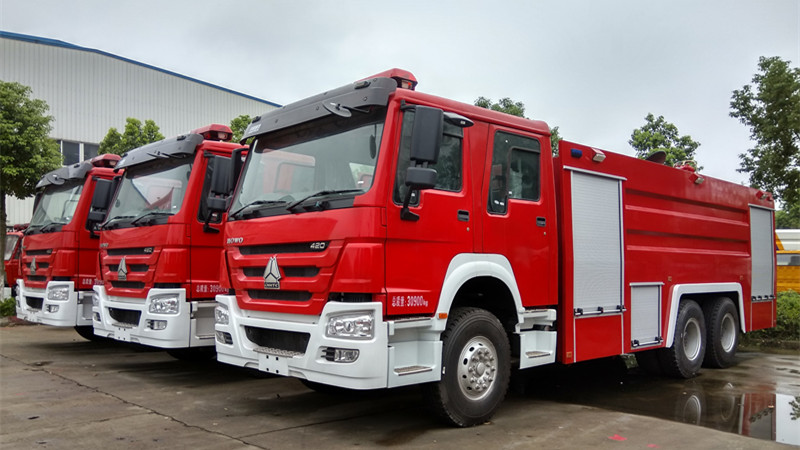

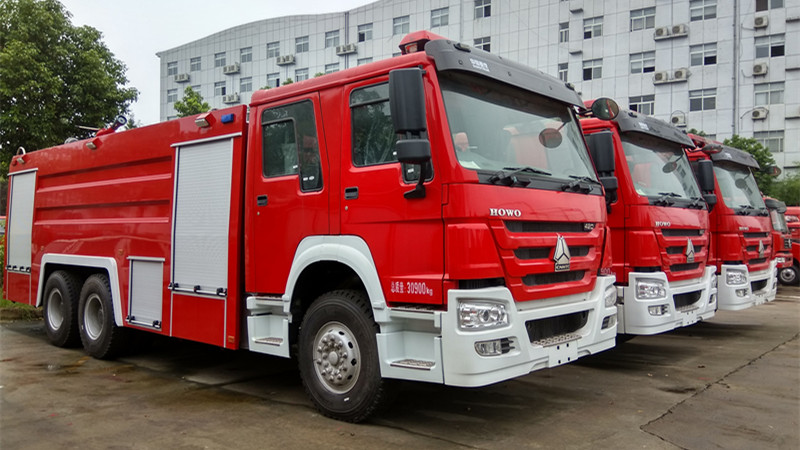

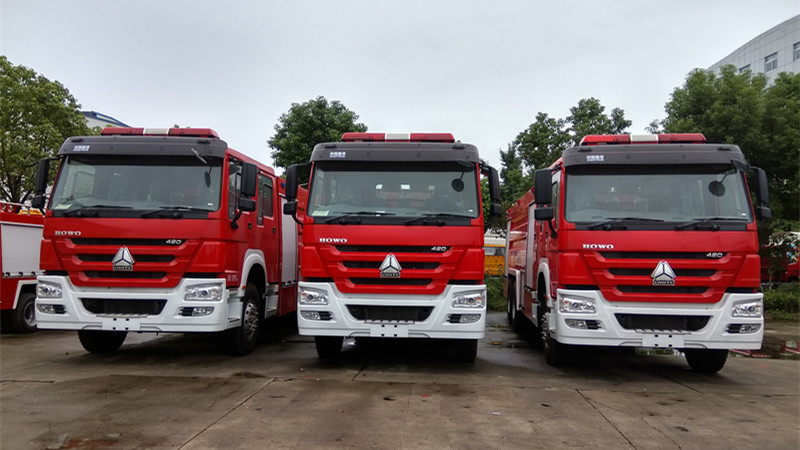

New model ZZ1257M4647C sinotruck 6x4 HOWO Fire Truck 15000L
Main Technical parameters | ||||
name |
SINOTRUCK HOWO Fire Truck (15000L) |
Model
|
ZZ1257M4647C | |
Max mass (kg) |
27600 |
Tank Volume (m3) |
15 | |
Rated loading (Kg) |
12350 |
Overall Sizes (mm) |
10025x2500x3600 | |
Curb Weight(Kg)
|
14800 |
Cargo van Size (mm)
|
×× | |
Cabin seats |
2+4 | |||
Approach / departure angle (°)
|
16/13 |
Front/rear Hang(mm)
|
1500/2490 | |
Number of axle |
3 |
wheelbase (mm)
|
4600+1350 | |
Axle Loading (Kg)
|
6900/20700(and biaxial)
|
Max Speed (Km/h) |
85 | |
Tank Volume: 15 cubic meters; Tank size (length x width x height): 4140 * 2300 * 2300 (mm); Firefighters calculated at 75 kg/person; after stretch: 60 mm; Side protective and lower protective device after material: Q235, skirt Structure; after the lower protective device height from the ground: 540 mm. | ||||
Chassis technical Parameters | ||||
Chassis Model
|
ZZ1257M4647C |
Chassis type
|
lorry
| |
Brand name |
SINOTRUCK HOWO SERIES |
Production Enterprise |
Sinotruk Groupjinantruck co., LTD | |
Overall dimensions (mm) |
9895×2496×2958,3563 |
Tire number
|
10 | |
Approach / departure Angle |
16/18 |
Tires Model
|
11.00-20 | |
Number of spring leaf
|
10/12,4/12,10/- |
Front track (mm) |
2022,2041 | |
Fuel type
|
Diesel
|
Rear Track |
1830/1830 | |
Emission standards |
EUROⅢGB17691-2005 countries, GB3847-2005
| |||
Engine Model
|
Engine factory |
Displacement (ml)
|
Power (KW)
| |
WD615.92 |
ChinaNational heavy duty truck group co., LTD |
9726 |
196(266 horsepower ) | |
Packaging & Payment
Packagingand delivering: Naked, waxing on ro-ro or bulk shipping or by 20GP, 40GP, 40HQ, 40FR, Flat rack and so on;
Payment term:30% deposit by T/T,and before leaving factory should pay the 70% balance by T/T.
Loading port & board
Shanghai,Tianjin,Guangzhou,Qingdao,Erenhot,Horgos or according to your order.Any port of China is possible.
Our Services
Shanghai,Tianjin,Guangzhou,Qingdao,Erenhot,Horgos or according to your order.Any port of China is possible.
1. Answer your question within 24 hours;
2. One year of warranty since bill of lading on board date;
3. Provide English operation manual book or videos;
4. Free and welcome to visit our factory at any time.We can arrange driver to pickup customers at airport.(Note:It is about 170km from latest airport (WUHAN AIRPORT) to our factory (city Suizhou).
