Product Main

Quick Details

Type: Other Heat Insulation Materials
Brand Name: kingfly
Type: blanket
Density: 16
Thermal Conductivity: 0.034
THICKNESS: 150mm

Specifications

Glass wool blanket introduce

Glass wool production lines employing latest-generation technology to manufacture boards, slice, rolled blankets and pipes for residential and industrial thermal and acoustic insulation needs, in compliance with the top international standards (EN, DIN, ASTM).

at the system HOT END, the raw materials are dosed, mixed, melted, centrifuged to fiber, impregnated with a special binder and formed into a primitive mat of very fine fiber glass. Continuous conveyors transport the mat to the COLD END of the plant for binder polymerization. the product is then cut to shape and packed for shipping.

Glass wool is mainly with four kinds of colors, which are yellow, white, pink and black, as well as four different facing which are FSK, Kraft, white cover, and BGT.

Distinctive Advantages Glass Wool Insulation Blanket:

Excellent thermal, acoustical properties.

Light weight and easy to fabricate on job site.

Non-combustible and fire-retardant.

Very economical.

Durable, life-time and termite proof.

Applications of Glass Wool Insulation Blanket:

Glass Wool Insulation is light and easy to install at office building, modern entertainment centre, roof, HVAC system and also other residential, industrial buildings such as:

Walling and partitioning; Faced and external walls; Suspended ceiling; Steel structures; Prefabricated houses; HVAC Duct works.

Glass wool Parameters:

Item Unit Index Standard
Density Kg/m3 7-50 GB/T 5480.3-1985
Average fiber dia μm 5.5 GB/T  5480.4-1985
Water content % ≤1 GB/T 3007-1982
Grade of combustibility Non-combustible Grade A GB 8624-1997
Reshrinking temp °C ≤480 GB/T 11835-1998
Thermal conductibility W/m.K 0.034-0.06 GB/T 10294-1988
Hydrophobicity % ≥98 GB/T 10299-1988
Moisture rate % ≤5 GB/T 16401-1986
Sound absorption coefficient 1.03 product reverberation method 24kg/m32000HZ

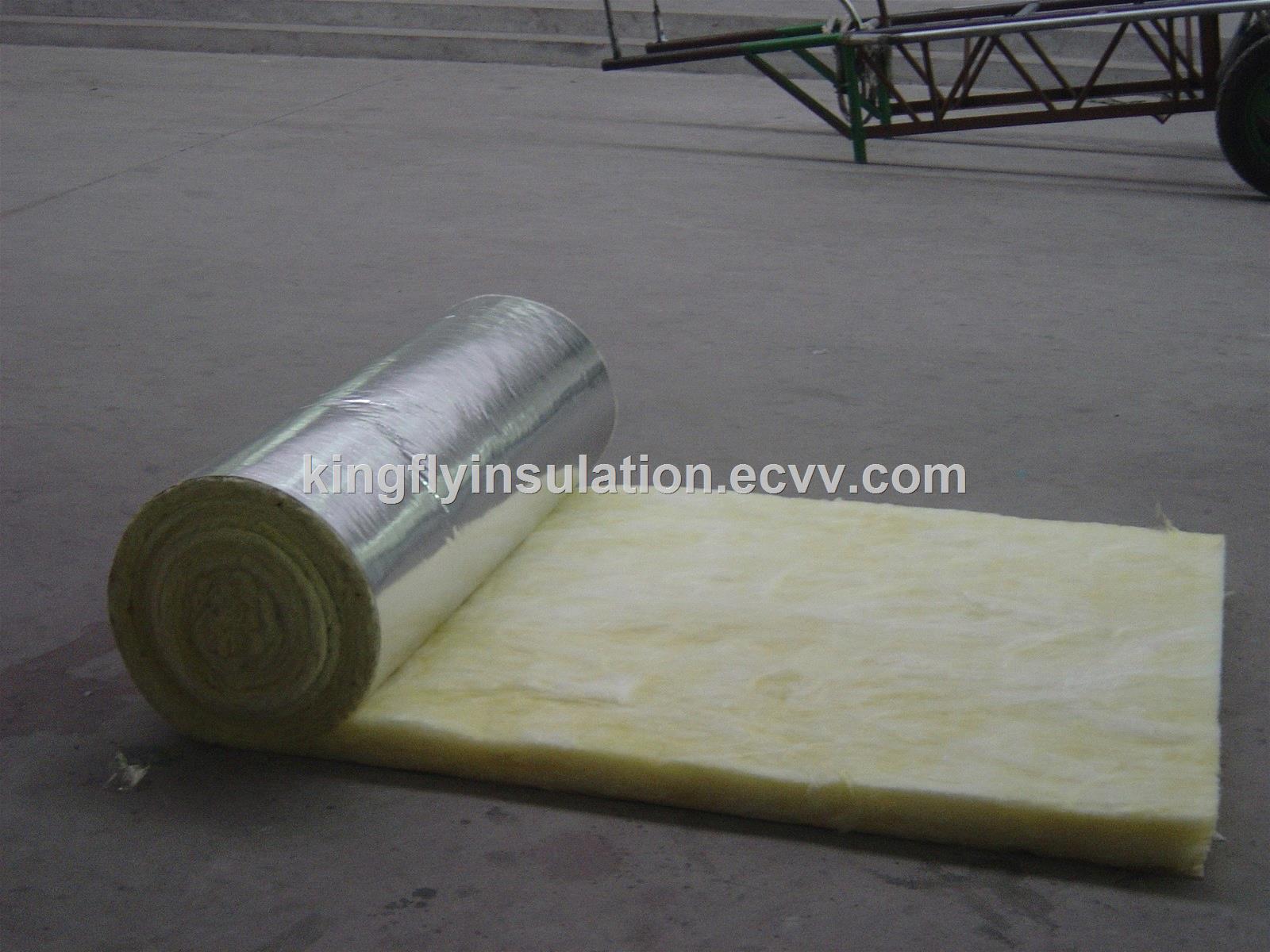

 150mm and 200mm Fiber glass wool for thermal insulation
