| Insulation Material: | PVC |
|---|---|
| Conductor Material: | Copper |
| Application: | link electrical appliances, instruments and electrical devices |
| Type: | Insulated |
| Brand Name: | SOKAB CABLE |
| Conductor Type: | Stranded |
| Model Number: | SKRV |
| Place of Origin: | China (Mainland) |
| Electric-RV: | the link of electrical appliances, instruments and electrical devices |
Quick Details
Specifications
1. Description:

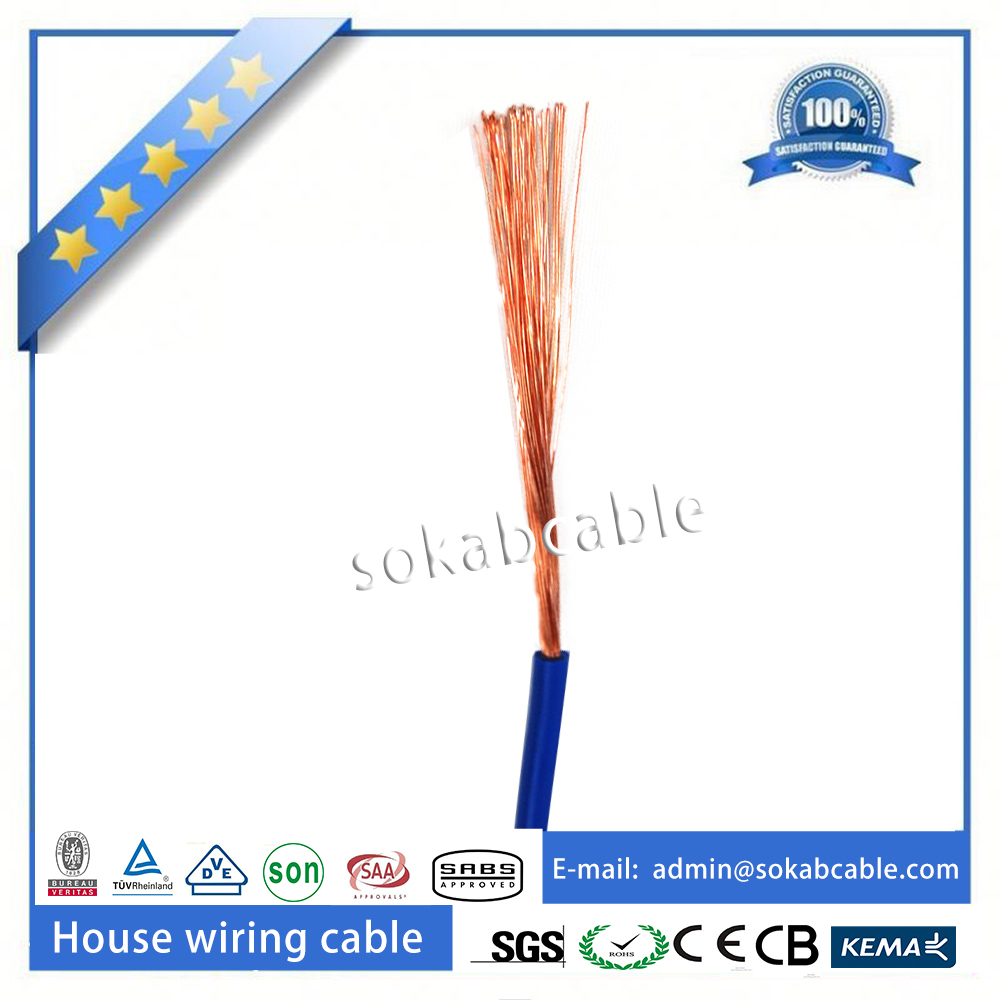

Single core non sheathed wire with flexible conductor for general purpose, voltage: 300/500V, 450/750V
2. Applications:
this cable is used for the link of electrical appliances, instruments and electrical devices, rated voltage 300/500v, 450/750V.
3. Construction
Copper conductor |
Plain circular flexible copper conductor, conform to IEC 60228-CL-5, DIN VDE 0295 CL 5 |
Insulation |
PVC |
Insulation color |
Conform to VDE-0293 |
Color Code |
Conform to HD402 |
4. Standard:
International: IEC 60227
Other standard such as: BS, DIN, as/NZS, UL upon request
5. Certificates:
CE, CB, RoHS, KEMA, SABS, UL, TUV, VDE, SON, SAA, SGS applied
6. Technical data:
Rated voltage: 300/500V, 450/750V
Test Voltage: 2500V
Max. Operating Temp of Conductor: Fixed laying: -30 ℃ to +80℃
Movable installation: -5℃ to +70℃
Min. Ambient Temperature during installation: 0℃
Min. Bending Radius: 12.5 X D ( cable outer diameter)
Insulation resistance: ＞ 20 Gohm x cm
Flame retardant conform to IEC 60332-1-2
