| Insulation Material: | PVC |
|---|---|
| Conductor Material: | Copper |
| Application: | direct burial or for installation on trays or ducts |
| Type: | Insulated |
| Brand Name: | SOKAB CABLE |
| Conductor Type: | Stranded |
| Model Number: | SKLVSTA |
| Place of Origin: | China (Mainland) |
| Power-Low voltage STA: | black |
Quick Details
Specifications
1. Description:

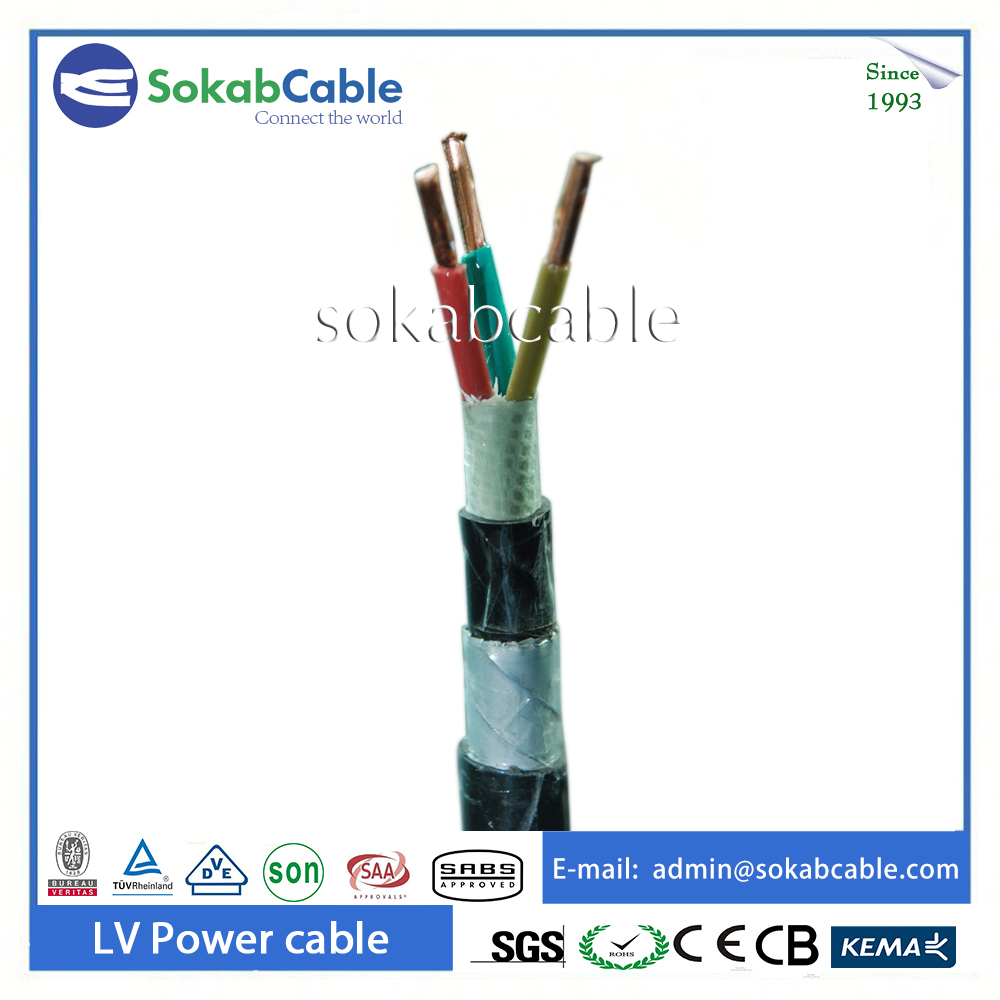

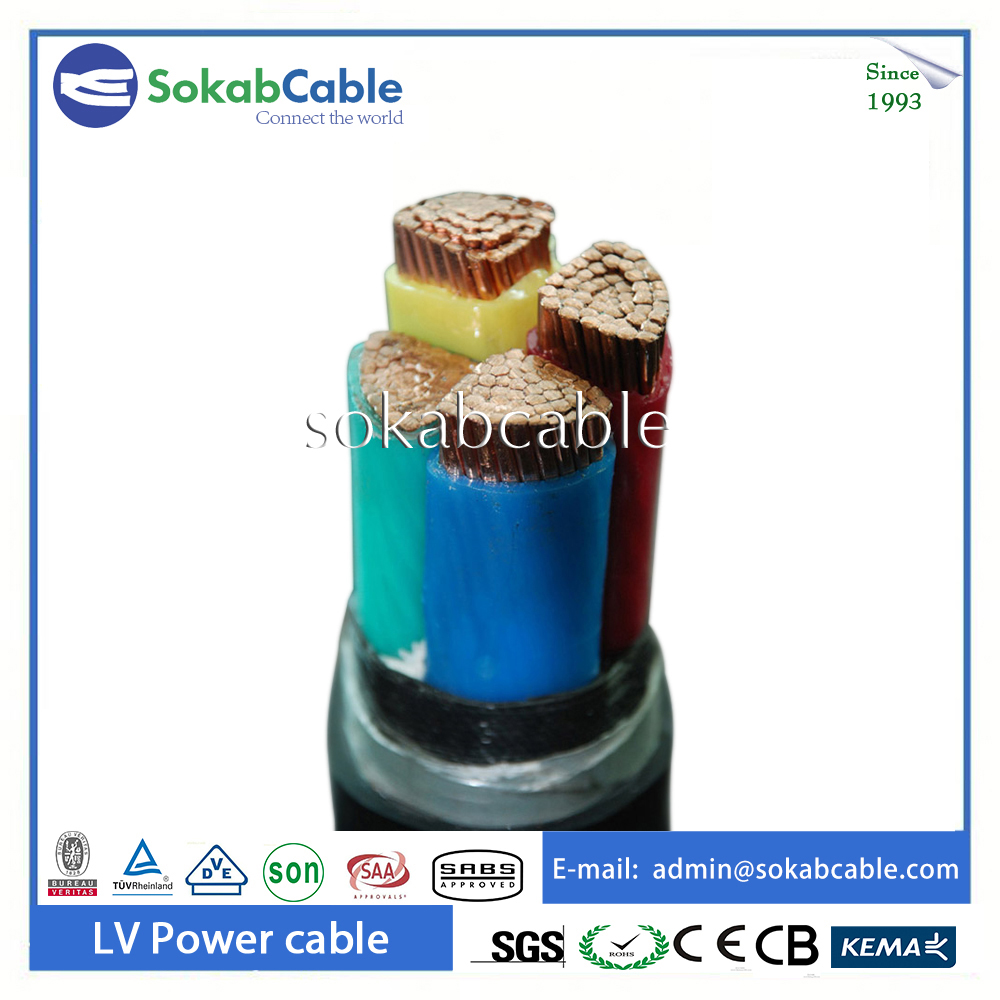

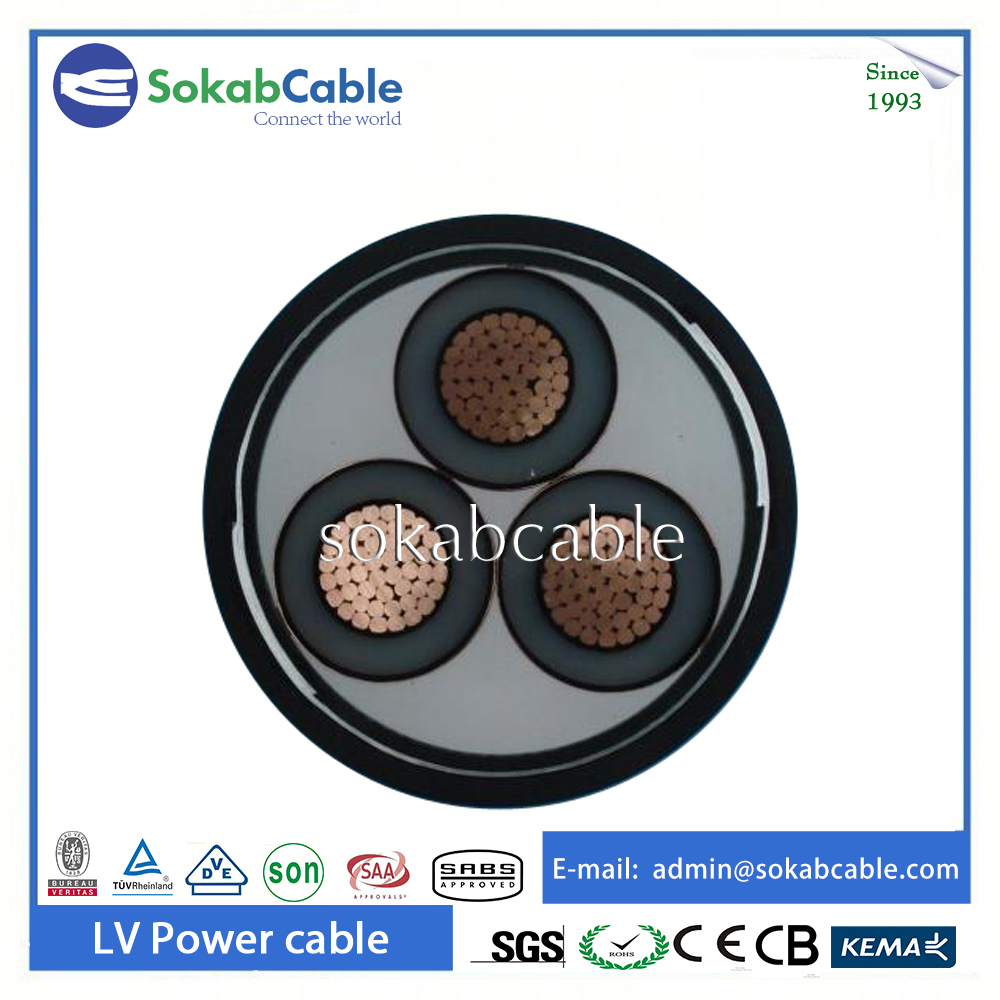

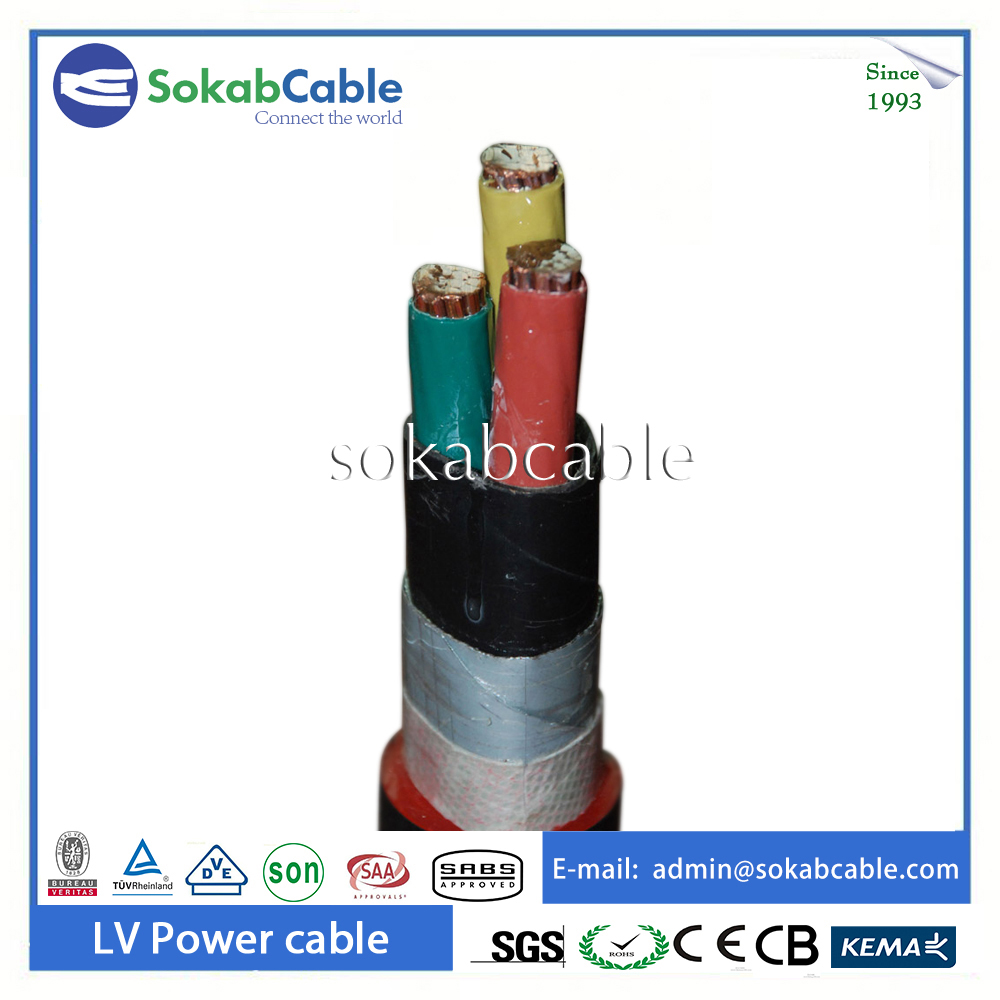

Copper conductor, PVC or XLPE insulated, PVC or PEC sheathed power cable with steel tape armored, voltage: 0.6/1KV
2. Applications:
these cables are generally suitable for direct burial or for installation on trays or ducts.
3. Construction
Copper conductor |
Plain circular, compact or shaped stranded copper conductor, conform to IEC 60228, Class2 |
Insulation material |
PVC rated at 90 ℃, or XLPE |
Bending |
PVC |
Armour |
Steel tape armored |
Sheath |
PVC type ST2 to IEC 60502 black. or PE |
4. Standard:
IEC 60228, IEC 60502( IEC60332-3 for flame retardant power cable only)
Standard such as: BS, DIN, as/NZS, UL upon request
5. Technical data:
Rated voltage: 0.6/1KV
Max. Operating Temp of Conductor: under normal 90℃, emergency ( 130℃), short circuit no more than 5s (250℃)
Min. Ambient Temperature during installation: 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 15x cable O.D for single core
12x cable O.D for multi core
6. Certificates:
IEC 60228, IEC 60502( IEC60332-3 for flame retardant power cable only)
Standard such as: BS, DIN, as/NZS, UL upon request
