| Pressure: | High Pressure |
|---|---|
| Standard or Nonstandard: | Standard |
| Power: | Hydraulic |
| Structure: | Diaphragm Pump |
| Brand Name: | Sailflo |
| Application: |
this series pump can be used for general water transfer, sprayer pumps, small rain system, or other industry usage(perfetct for small car washer system,water heater shower,sprayer), use it with fresh or salt water or other liquid with weak acid&alkaline is ok.We have tested these pumps and found they will operate to a 1.5 metre suction.
the pump with built-in pressure switch, can be working automatically when the tap turn on-off.
Features:
| Feature: | |
| Type: | 2 Chamber Diaphragm |
| Port Size: | 3/8" (9.5mm) Hose Barb |
| Liquid: | 140°F [60 °C] Max |
| Self-priming: | 5.0 feet [about 1.5M] |
| Max pressure | 100psi(7.06bar);Can be adjust to 110psi. |
| Run Dry: | Yes |
| Motor: | Permanent Magnet, Intermittent |
| Duty Protection: | Thermal Overload, Automatic Restart |
| Control Type | Pressure switch & by pass control |
STANDARD PUMP CONFIGURATIONS
| Model | Volt | FLow(L/Min) | Pressure(PSI) | Valve | Amp Draw(A) |
| FL-3202 | 12 | 5.1 | 80 | EPDM/VITON | 4.5 |
| FL-3402 | 24 | 5.1 | 80 | EPDM/VITON | 2.8 |

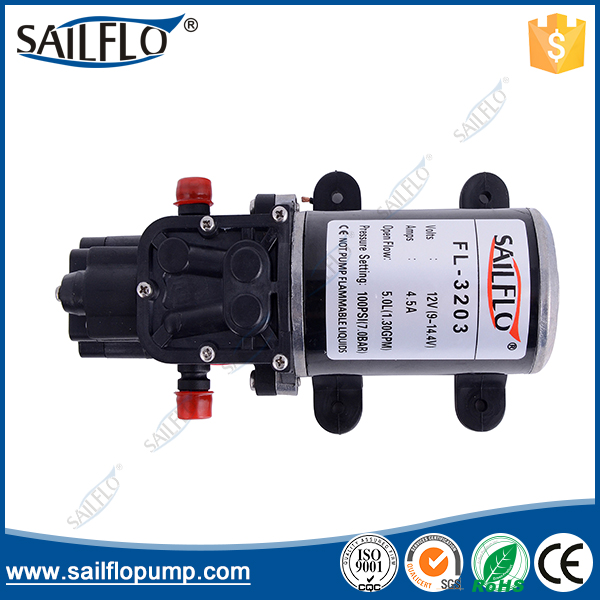

| FL-3203 | 12 | 5.1 | 100 | EPDM/VITON | 5.0 |
| FL-3403 | 24 | 5.1 | 100 | EPDM/VITON | 3.0 |
| FL-3206 | 12 | 6.0 | 60 | EPDM/VITON | 6.0 |
| Key | Description |
| 1 | Motor |
| 2 | Pump Head |
| 3 | Pressure Gasket |
| 4 | O-ring |
| 5 | Gasket of relief valve |
| Key | Description |
| 6 | Relief valve |
| 7 | Pressure switch |
| 8 | Cover of pressure switch |
| 9 | Eccentric Wheel |
 |
Shipping Information | |
Unit Weight: |
1.22kgs | |
| Unit Size: | 20*12*8cm | |
| Master Carton Qty: | 30pcs | |
| Master Carton Size: | 55*40*28cm | |
| Master Carton Weight: | 36.8kgs | |
