| Pressure: | Low Pressure |
|---|---|
| Standard or Nonstandard: | Standard |
| Power: | Electric |
| Structure: | Diaphragm Pump |
| Brand Name: | Sailflo |

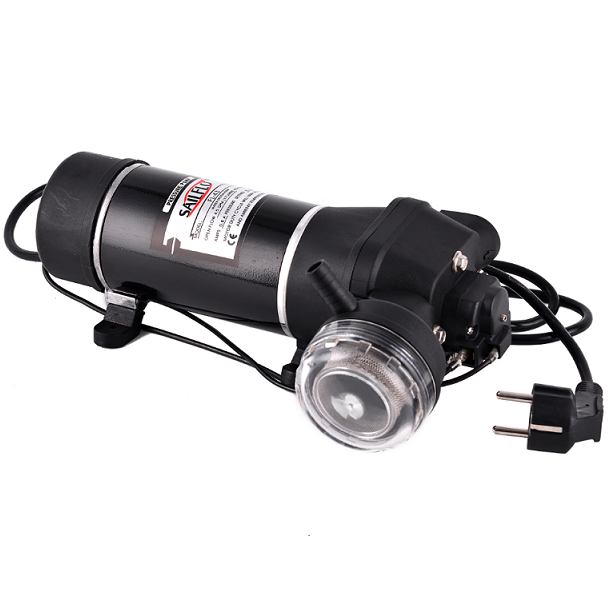

| Model Number: | FL-43 |
Quick Details
Specifications
| Feature: | |
| Type: | 4 Chamber Diaphragm |
| Port Size: | 3/4" (19mm) BSPT Female thread |
| Liquid: | 140°F [60 °C] Max |
| Self-priming: | 6 feet [about 2M] |
| Max pressure | 40psi(2.76bar);Can be adjust to 60psi. |
| Run Dry: | Yes (within 30 second) |
| Motor: | Permanent Magnet, Intermittent |
| Duty Protection: | Thermal Overload, Automatic Restart |
| Volts: | 115/220V AC motors standard |
| Standard Connector: | 1pc 3/4" Male Thread, 1pc 1/2" hose barb, |
| Approved Certificate: | CE and RoHS |
STANDARD PUMP CONFIGURATIONS
| Model | Volt(V) | Flow(LPM/GPM) | Pressure(PSI/BAR) | Valve | AmpDraw(A) |
| FL-33 | 115 | 12.5(3.3) | 35(2.41) | EPDM/VITON | 0.5 |
| FL-32 | 220 | 12.5(3.3) | 35(2.41) | EPDM/VITON | 0.4 |
| FL-41 | 115 | 17(4.47) | 40(2.76) | EPDM/VITON | 0.5 |
| FL-43 | 220 | 17(4.47) | 40(2.76) | EPDM/VITON | 0.8 |
| Key | Description |
| 1 | Upper Housing with Clips |
| 2 | Check Vlave Assembly |
| 3 | Diaphragm Assembly(including screws) |
| 4 | Lower Housing Assembly |
| Key | Description |
| 5 | Motors |
| 6 | Connectors |
| 7 | Pump Head Assembly |
| 8 | Side Clips |
 |
Shipping Information | |
Unit Weight: |
3.2kgs | |
| Unit Size: | 37*12.5*10.5CM | |
| Master Carton Qty: | 10pcs | |
| Master Carton Size: | 64*29*22.5CM | |
| Master Carton Weight: | 33kgs | |
