| Connection: | Male |
|---|---|
| Brand Name: | Grana |
| Type: | Union |
| Technics: | Forged |
| Material: | Copper |
| Head Code: | |
| Shape: | Equal |
| Place of Origin: | China (Mainland) |
| SIZE: | 1/4 |
| Weight: | 25g |
Quick Details
Specifications

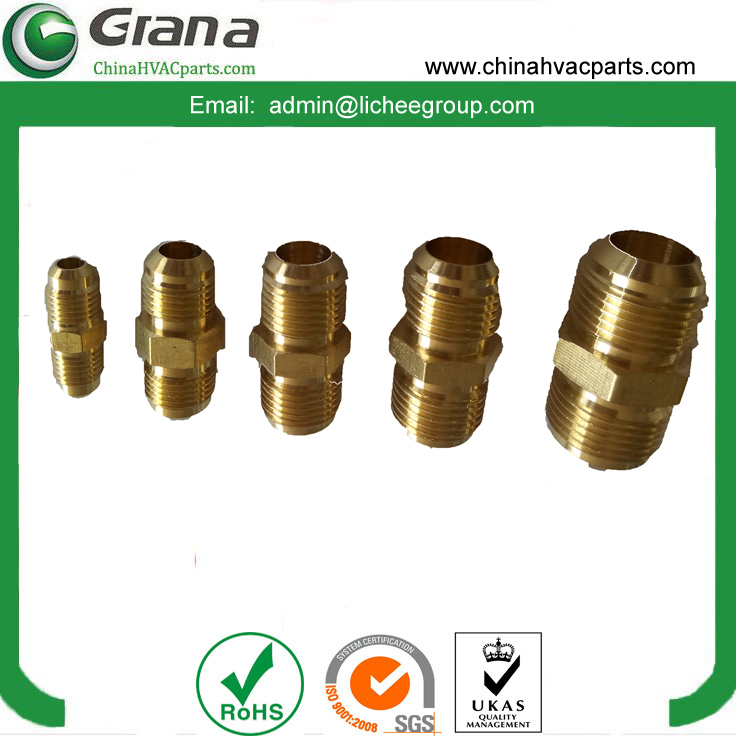

Air conditioner Brass union fitting
Brass Pipe Fitting - Union for Refrigeration
Description of Brass Fitting:
Description of Brass Fitting:
More than 20 years experience in producing Brass pipe fittings.
Technology: forging, CNC machining, casting, cutting, plating, polishing, sand blasting.
Application: Connecting for copper tube, PPR pipe, cpvc pipe, pex-al-pex pipe, pex pipe etc.
Used for gas, water, drinking water, plumbing system etc.
100% leakage test before making delivery.
Surface: yellow brass color, nickel plated, chrome plated.
Material: brass, bronze, copper, s.s. etc.
Connection: male, female, coupling, union etc.
RoHS, CE standard approval.
OEM request welcome as per the drawing or sample.
Size of Brass Fittings - Male Adaptor:
Part No. |
Diameter (MM) |
Thread (NPT) |
Length(MM) | |
OD |
ID | |||
NVBF-1" |
29.00 |
34.00 |
1" |
41.00 |
NVBF-2" |
60.00 |
54.60 |
2" |
46.00 |
NVBF-3" |
86.00 |
80.00 |
3" |
66.00 |
All dimensions in mm unless otherwise specified.
the drawing & data of sheet for the reference only. | ||||
