Brand Name: | SNP85 |
---|---|
Al2O3 (Min): | 85% |
color: | Dark gray |
Model Number: | SNP85 |
Moisture (%): | 0.1 |
Concentrate Or Not: | Non-concentrate |
Chemical Composition: | Al2O3: min 85% Fe2O3: max 2.5% Sio2: max 7.7% |
Shape: | Fines (Powder) |
Quick Details
Specifications

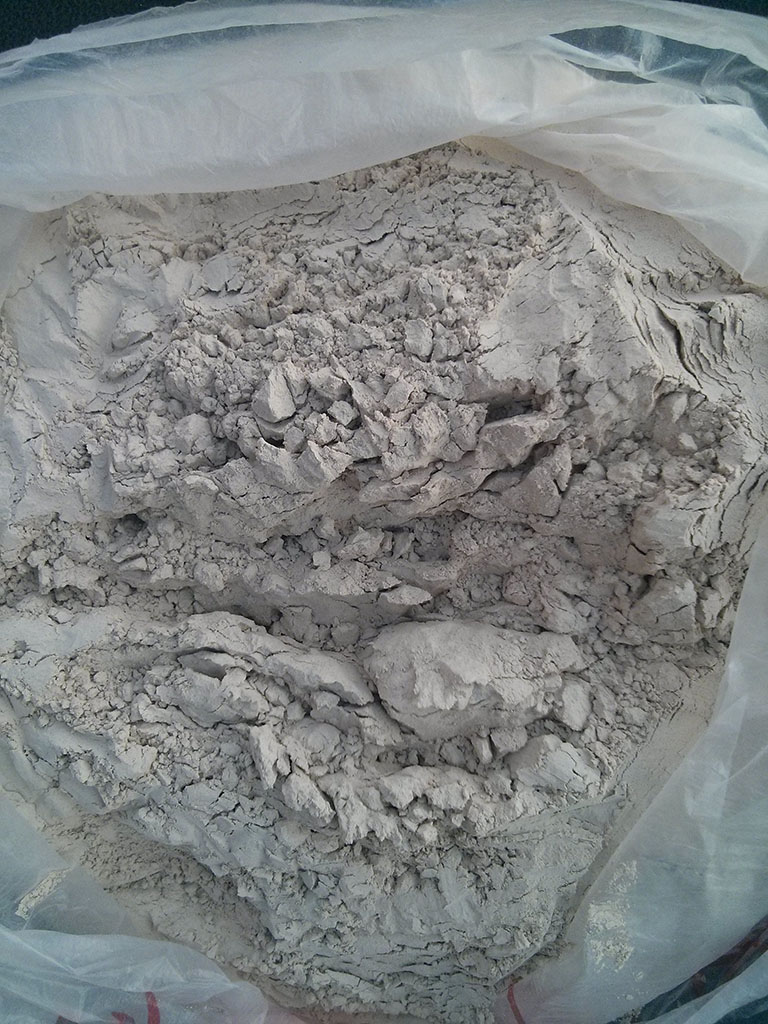

Porcelain Insulator Bauxite
Electrical procelain Insulator has high Requirements about the mechanical properties, electrical properties, Environmental performance (cold and hot, squalidity, aging resistance, etc.). Using calcined Bauxite as the material Could meet this requirement perfectly. Procelain insulator Bauxite has good Intensity and its long-term performance could also reduce the manufacturing Cost. It also has well insulativity and mechanical strength, both its rigidity and heat stability are higher than others, its hot and cold impact performance Is also superior.
Application
most high voltage insulators
Producers choose calcined bauxite powder as necessary raw materials for
Manufacturing electrical porcelain insulators used for electric line, power
Station, protector and switches etc. the porcelain insulator that burns
by high-temperature firing from the bauxite, kaolin, feldspar and other natural
Minerals is widely applied to electric power industry system. To produce the
Porcelain, calcined bauxite is used instead of alumina. The simultaneous
Addition of clay and kaolin, in each case containing more than 5% by weight of
Foreign metal oxide inclusions, results in a porcelain which, compared to an
Alumina porcelain of the same mechanical strength, can be produced at
Significantly lower cost. The porcelain is suitable in particular for
Applications for highly mechanically loaded components used in electrical
Insulation.
Specification for SNP85 Calcined bauxite
Chemical Analysis Phisycal Date
Al2O3: Min 85%
Fe2O3: Max 2.5% Particle shape: powder
Sio2: Max 7.7% Specific Gravity: 3.80 g/cm3
Tio2: Max 4.0% Moisture content: 0.1%
Available grain Size
98% Passing min at 325mes
Package
Usually 1MT Jumbo bag
Standard exporting package for sea Transportation or air delivery
Special packing requirement is Acceptable
SINOCEAN Available Electrical procelain bauxite
Item name |
|
SNP85 |
Al2O3 min |
86.0% |
85.0% |
Fe2O3 max |
2.50% |
2.50% |
TiO2 max |
3.80% |
4.0% |
SiO2 max |
6.70% |
7.70% |
Moisture |
0.10% |
0.10% |
Specific Gravity |
3.80g/cm3 |
3.80g/cm3 |
