| After-sales Service Provided: | Overseas third-party support available |
|---|---|
| Brand Name: | Yongsheng |
| voltage: | - |
| weight: | - |
| Condition: | NEW |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Machine's Feature

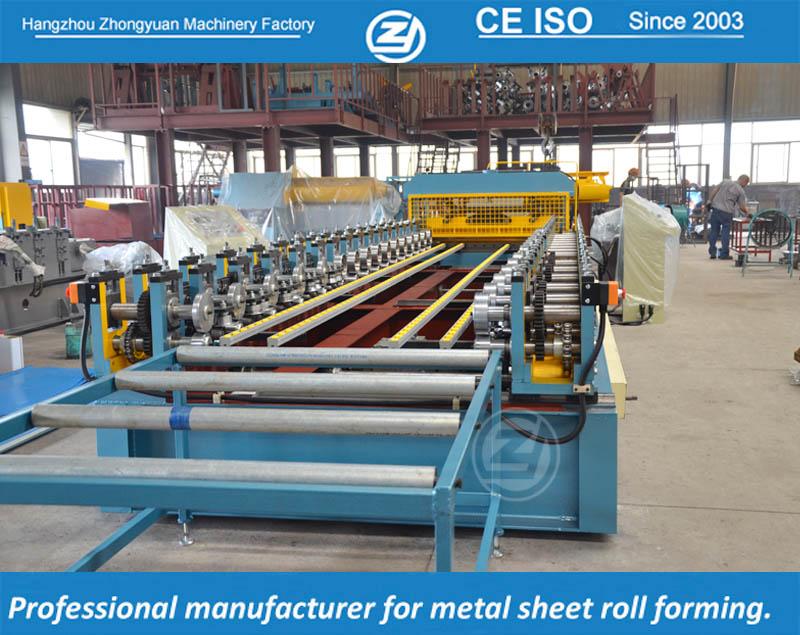

It is composed of about 13 groups of adjustable width roller. One side fixed, one side can be adjusted by screw. so that machine can make adjustable width of profile. In the middle there is upper-lower press material wheel, it is used to clamp material, make sure the material will not curve when forming in the middle.
Technical Data of
Suitable material |
Q235 color steel sheet;0.3-0.7mm, |
Forming speed |
about 20m/min |
Power Requirement |
Main motor power: 5.5 Kw(Depend on final design) |
Hydraulic station power: 2.2Kw(Depend on final design) | |
Material of forming rollers |
No.45 steel, plated with chrome on sureface. |
Material of cutter |
Cr12 mould steel with quench treatment, HRC58-60 |
Material of shaft |
High quality 45# steel with heat treatment.Roller grinder milling. |
Controlling system |
Mitsubishi PLC & converter |
Total weight of machine |
about 7000KGS |
Machine'S size |
about 10m×1.8m× 1.5m (Depend on final design) |
Shipping |
1X40GP container |
Product Sample from Machine,Width of Sheet Is Adjustable.
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of with ISO quality system.
