| After-sales Service Provided: | Overseas third-party support available |
|---|---|
| Brand Name: | Zhongyuan |
| voltage: | - |
| weight: | - |
| Condition: | NEW |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

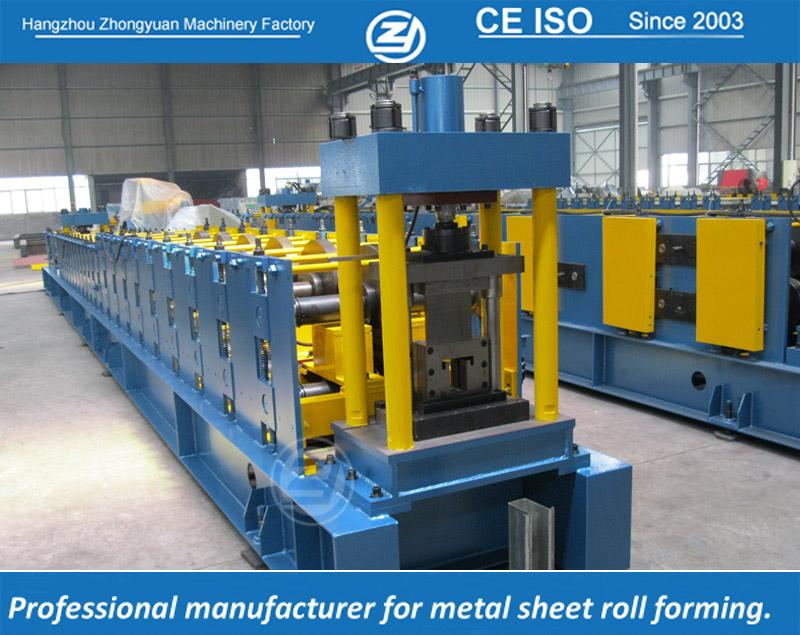

Technical Data of Sigma Forming Machine
Suitable Material |
Cold-rolled steel strip and heat-treated galvanized steel strip |
Thickness of raw material |
1.0-3.0mm (235-345Mpa) |
Size of OMEGA |
50-130mm adjustable (special size available) |
Material of roller |
Cr12 mould steel being quenched treatment,HRC58-60 |
Material of cutter blade& punching die |
Cr12 mould steel with quenched treatment, HRC58-60 |
Material of shaft |
High quality 45# steel with heat treatment.Roller grinder milling. |
Forming speed |
about 10-12m/min |
Power Requiremen |
Main motor power: 15 Kw(Depend on final design) |
Hydraulic station power: 5.5Kw (Depend on final design) | |
Diameter of shaft for rollers |
82mm |
Controlling system |
Mitsubishi PLC & converter |
Quantity of rollers |
about 22stations for main rollers |
Weight of machine |
about 10000KGS |
Size of machine installation |
about 20mX2.5mx1.7m |
Anti-rust Roller:
Cr12 mould steel being quenched treatment,HRC58-60, CNC machine tooled to increase rollers precision.
Our company manufacture the , Step Tile Forming Machines, , Sandwich Panel Production Line, , Metal Deck Forming Machine etc. All of them with super quality and good price.
