| After-sales Service Provided: | Overseas third-party support available |
|---|---|
| Brand Name: | Zhongyuan |
| voltage: | - |
| weight: | - |
| Condition: | NEW |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

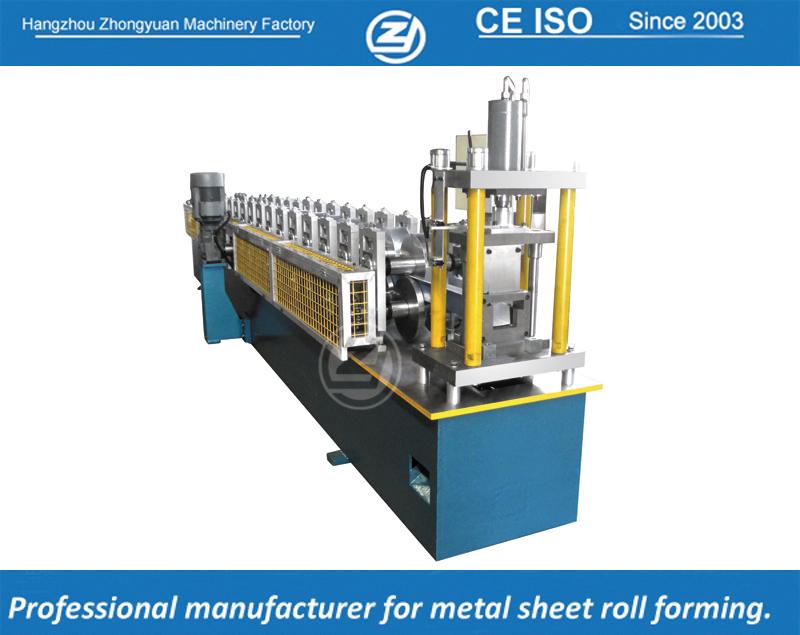

Technical Data of Stud & Track Forming Machine
Suitable Material |
Cold-rolled steel strip and heat-treated galvanized steel strip |
Thickness of raw material |
0.5-0.6mm (235-345Mpa) |
Material of roller |
45# steel being quenched treatment |
Material of cutter blade& punching die |
Cr12 mould steel with quenched treatment, HRC58-60 |
Material of shaft |
High quality 45# steel with heat treatment.Roller grinder milling. |
Forming speed |
about 20m/min |
Power Requiremen |
Main motor power: 5.5 Kw(Depend on final design) |
Hydraulic station power: 5.5Kw (Depend on final design) | |
Diameter of shaft for rollers |
55mm |
Controlling system |
Mitsubishi PLC & converter |
Quantity of rollers |
about 15 stations for main rollers |
Weight of machine |
about 6500KGS |
Size of machine installation |
about 15m x 1.7 m x1.4m |
Our range of products Metal Roll Forming Machine, , Metal Sheet Forming Machines, , EPS Sandwich Panel Production Machine, Line Forming Machine, etc. We can better control the machine quality and delivery time of machines.
