| After-sales Service Provided: | Overseas third-party support available |
|---|---|
| Brand Name: | Zhongyuan |
| voltage: | - |
| weight: | - |
| Condition: | NEW |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

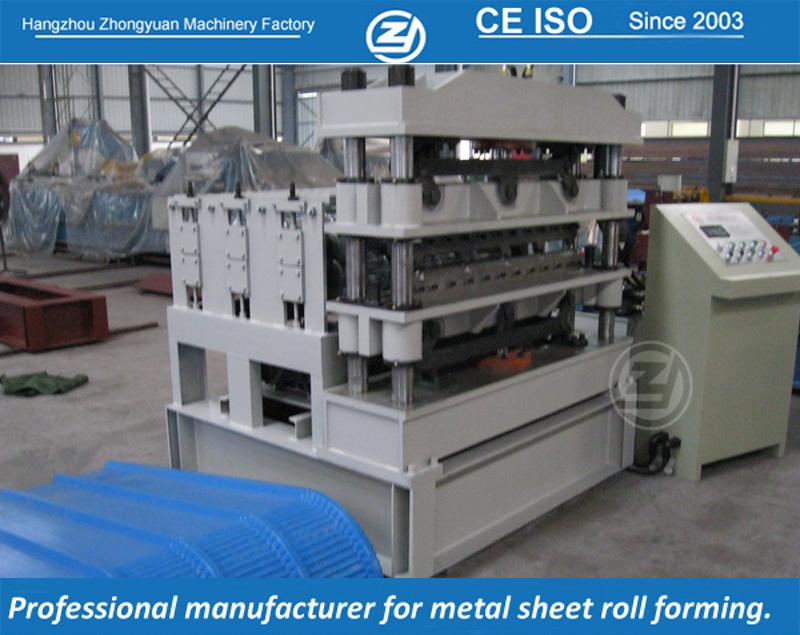

Technical Data of Crimping Forming Machine
Raw material |
Corrugated steel sheet (235-345Mpa) |
Material of roller |
45# steel being quenched treatment |
Material of crimping device |
Cr12 mould steel with quenched treatment, HRC58-60 |
Material of shaft |
High quality 45# steel with heat treatment.Roller grinder milling. |
Crimping speed |
about 10times /minute |
Power Requirement |
Main motor power: 2.2Kw(Depend on final design) |
Hydraulic station power: 5.5Kw (Depend on final design) | |
Diameter of shaft for rollers |
72mm |
Controlling system |
Mitsubishi PLC & converter |
Quantity of feeding rollers |
about 3 stations for main rollers |
Weight of machine |
about 3000KGS |
Size of machine |
about 1600mm×1600mm×1750mm |
Product Application of
the product from the is used as roof of building.
