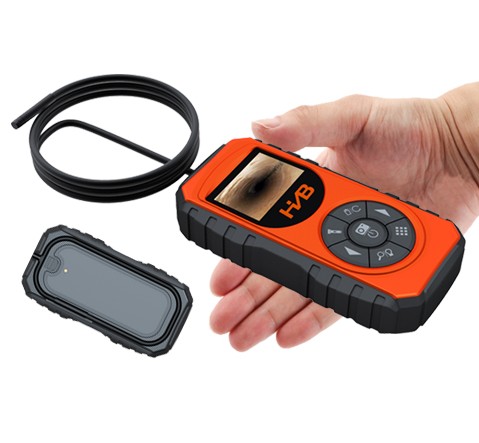

5.5mm Video Borescope with 1m camera probe coiled inside the case for storage

Portable Design

     Simple Operation

         High Performance

            Small Size

       Light Weight

Saving Space & Freight



FEATURES



1M waterproof camera probe is coiled inside the case for storage

5.5mm camera head with flexible snake tube

6 light-adjustable LEDs on camera head Temperature detection for protecting the camera head

2.4 inch TFT screen for moniting

7 navigation buttons for function operations

Flashlight for irradiation at long distance

Internal storage for 30 pictures 4AA bateries for power supply(not included)

the probe tip accessories magnetic pickup with hook and 45 mirror are stored inside the case



SPECIFICATIONS



Display Size/Type: 2.4 inch. (48mm*35.69mm) diagonal TFT color LCD

Display Resolution: 320*240(Graphic 480*234 Dot-matrix)

Monitor Controls: 180 flip, 1X to 4X zoom in 6 steps, brightness + and

Camera Head Diameter: 5.5mm

Camera Effective Resolution: 640*480

Camera Field of View: 55

Focus Distance: 3cm(Approx.)

Camera Depth of Field: 30cm(Approx.)

Camera Light Source: 6 adjustable-brightness white LEDs

Probe Length & Type: 1m flexible-obedient

Probe/Camera Head Water & Dust Resistance Level: IP67

Battery Life: >3 hours (typical)

Operating Temperature/Humidity: 32 to 113F (0 to 45C) @ 5 to 95% RH Dimensions: 139 x 83 x 30mm



APPLICATIONS



Automobile service, Aviation maintenance, Archaeological expedition, Lab observation, Search and rescue, Oil&Gas industry inspection, Equipment or Furnishing installation, etc.



Notice:All graphics and specifications are subjuct to minor change without prior Notice. All rights reserved.
