2.4GHz WiFi Industrial Inspection Tools Flexible edoscopes
Model: 8907AL

this is a industrial inspection tool, supports wireless transaction by 2.4Ghz or WiFi. It allows you to view and inspect hard to reach area. It has  diameter of insertion tube 17mm for choices, adjustable LED lights for dark area inspection. Equipped with IP67 waterproof camera with 1m flexible tube that extends the area of inspection.

FEATURES:
One-key ON/off & LED brightness adjustment
Optional different spcifications of mini waterproof flexible pipe or rigid stainless tube LED lens
with video output function: TV-OUT
2.4 GHz or  WiFi wireless transaction fuction

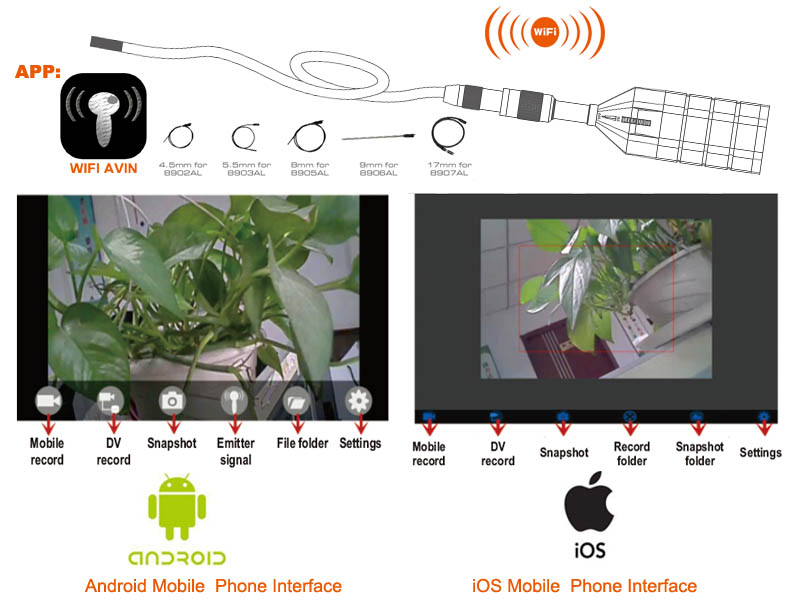

Support Android & iSO systems
Built-in 1430mAh hig-capacity polymer battery for 2.5 hours of continous work

SPECIFICATIONS

MODEL	8902AL	8903AL	8905AL	8906AL	8907AL
Image Sensor	CMOS	CMOS	CMOS	CMOS	CMOS
Diam. of Insertion Tube	4.5mm	5.5mm	8mm	9mm	17mm
Effective Pixels	320X240	648X448	640X480(PAL) 640X480(NTSC)	752X582(PAL) 768X494(NTSC)	704X576(PAL) 712X488(NTSC)
Field of View(FOV)	63°	50°	55°	55°	50°
Bending Angle	300°	300°	300°	300°	180°
Weight	138g	181g	254g	222g	380g
Water Proof	IP67
Lowest Illumination	0Lux
Illuminative Distance	0-0.5m
Transmission Distance in line of sight	10m(Max.)
Transmitting Frequency	2400MHz-2483.5MHz
Modem Mode	802.11b:DSSS(CCK,DQPSK,DBPSK), 802.11g/n:OFDM(BPSK,16QAM,64QAM)
Frame rate	30fps
Video Resolution	VGA(640X480)
Video Compression	H.264
Wireless Protocals	IEEE802.11b,IEEE802.11g,IEEE802.N(1T1RModes)
Encryption Mode	WPA2
Video Out
Power	5V1.5A
Current Consumption	480mA
Work Time	2.5hours
Operating Temperature	-10°~+50°C
Operating Humidity	15%~85%
Client	Android2.2 or above  iOS Version 4.3 or above
Product Dimension (Active Area)	113mmX45mmX43mm

APPLICATIONS
Non-destructive testing, cavity wall inspection, wall tie and dry rot inspection, pest control inspection, pipe inspection, structural and mechanical inspection, laboratory observation, archeological  exploration.

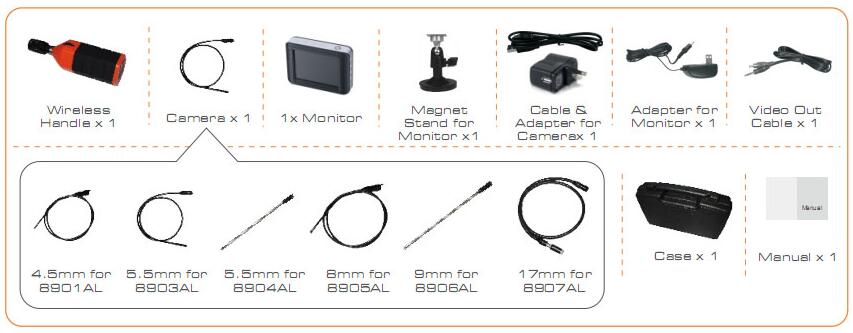

PACKING LIST
