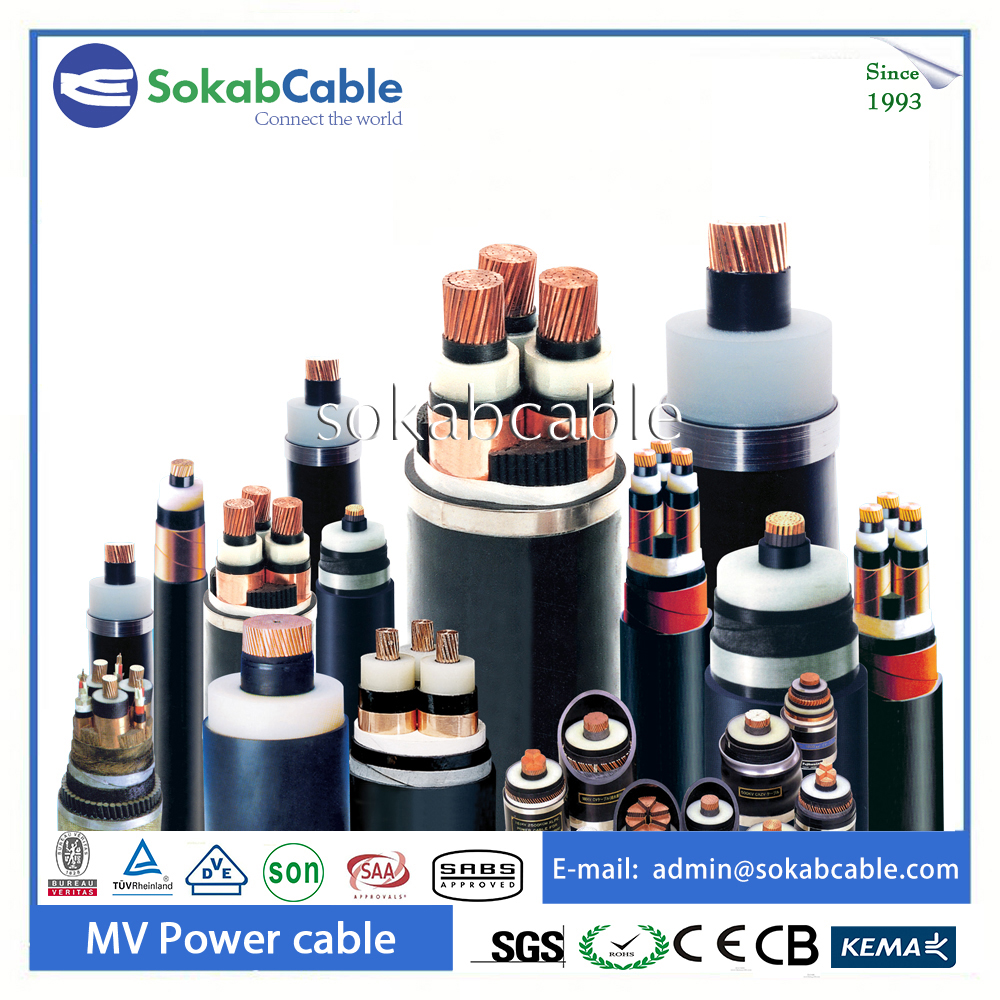

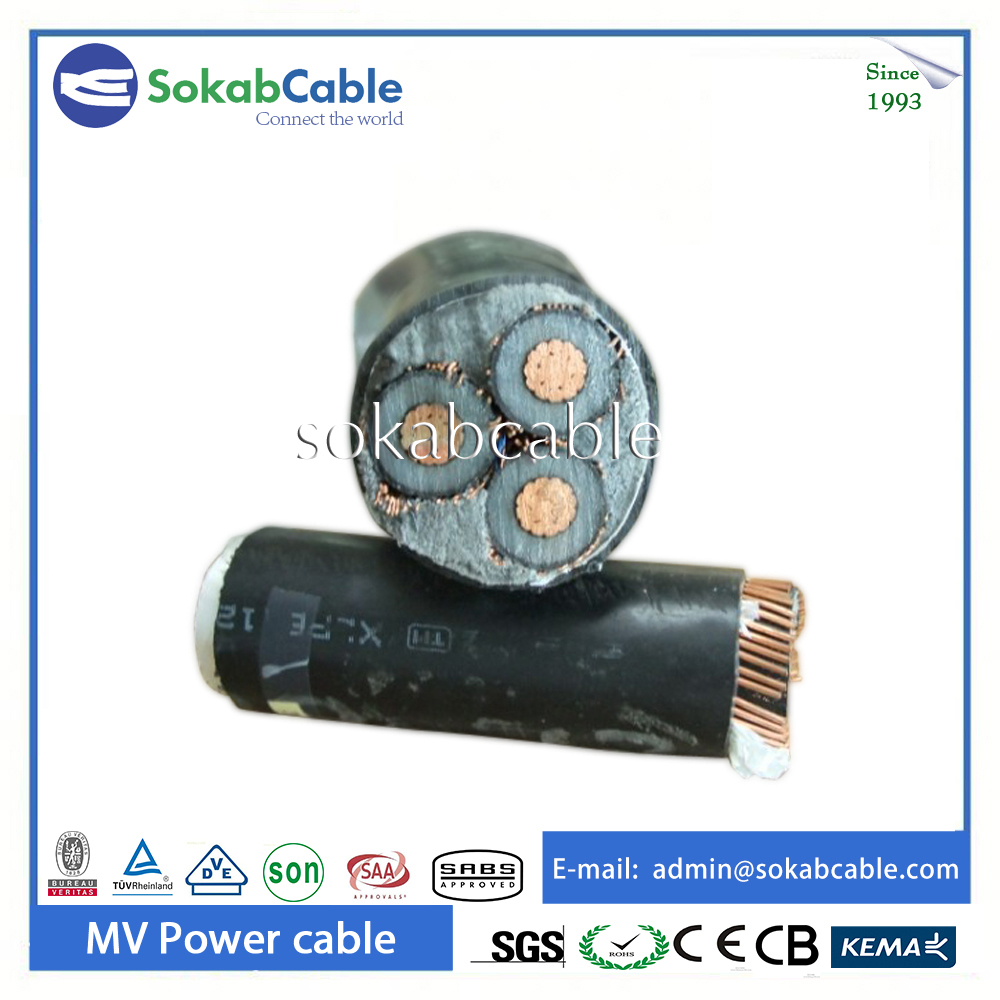

1. Description:

Copper conductor,XLPE insulated, PVC or PE sheathed power cable, Unarmored, voltage: 3.6/6KV, 6/10kv, 8.7/15kv, 12/20kv, 18/30kv, 21/35kv



2. Applications:

these cables are used for power distribution network such as power supply station,sub-station,switching system etc, They are suitable for installation on medium mechanical stress dry. Indoors,outdoors,underground areas where unable to bear external mechanical forces.



3. Construction

Copper conductor	Plain circular, compact or shaped stranded copper conductor, conform to IEC 60228, Class2
Conductor screen:	Semi-conducting compound
Insulation	XLPE( cross-linked polyethylene) rated at 90 ℃
Conductor screen	Semi-conducting compound
Metallic Screen	Copper tape
Sheath	PVC type ST2 to IEC 60502 black. or PE

4. Standard:

IEC 60228, IEC 60502( IEC60332-3 for flame retardant power cable only)
Standard such as: BS, DIN, as/NZS, UL upon request



5. Technical data:
Rated voltage: 3.6/6KV, 6/10kv, 8.7/15kv, 12/20kv, 18/30kv, 21/35kv
Max. Operating Temp of Conductor: under normal 90℃, emergency ( 130℃), short circuit no more than 5s (250℃)
Min. Ambient Temperature during installation: 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 20x cable O.D for single core
15 x cable O.D for multi core



6. Certificates:



CE, CB, RoHS, KEMA, SABS, UL, TUV, VDE, SON, SAA, SGS applied
