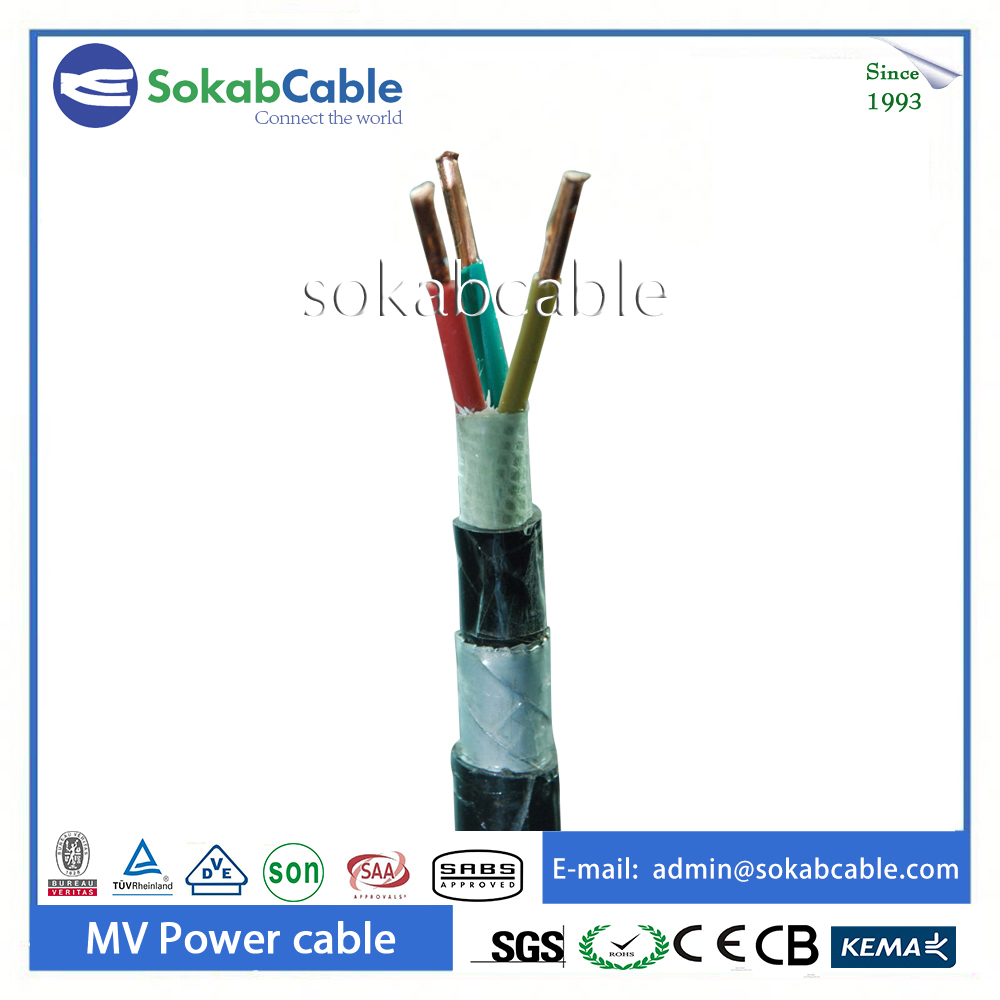

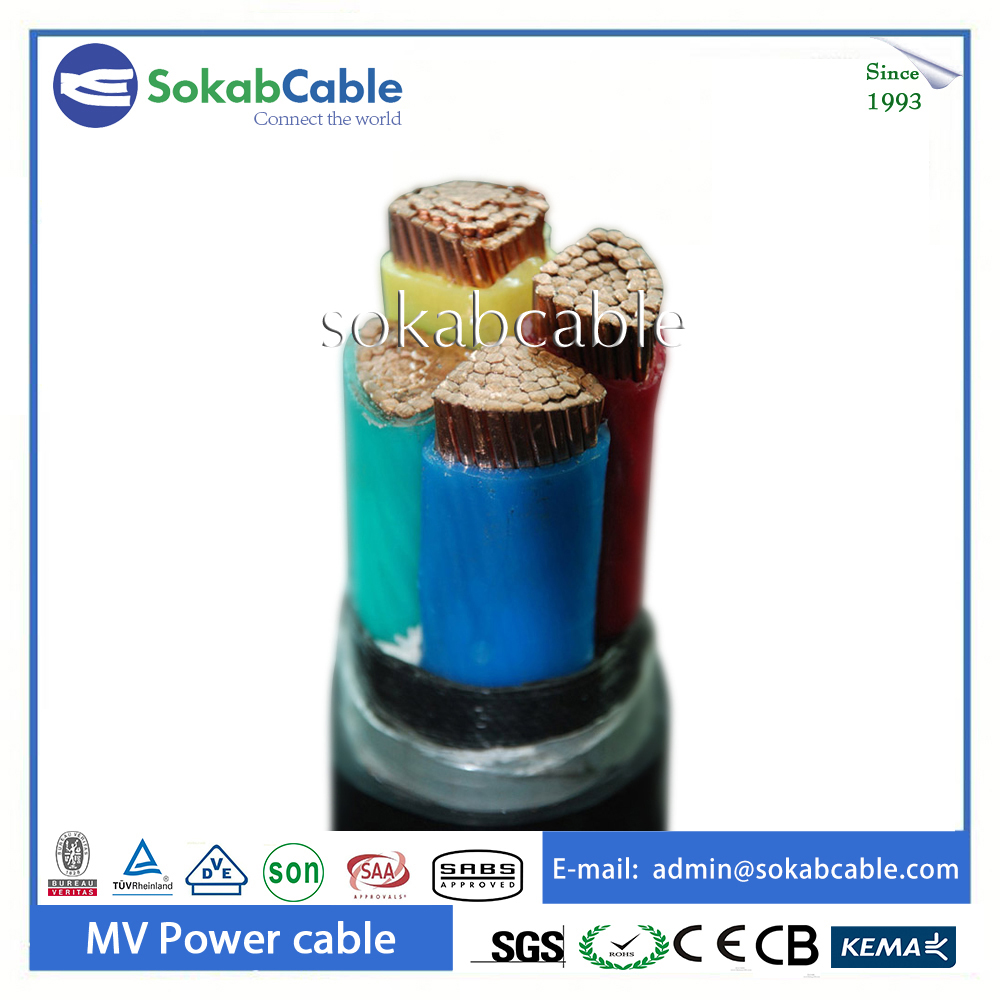

1. Description:

Copper conductor,XLPE insulated, PVC sheathed power cable, Steel tape armored voltage: 3.6/6kv, 6/10kv, 8.7/15kv, 12/20kv, 18/30kv, 21/35kv, 26/35kv



2. Applications:

these cables are used for direct burial or for installation on trays or ducts.

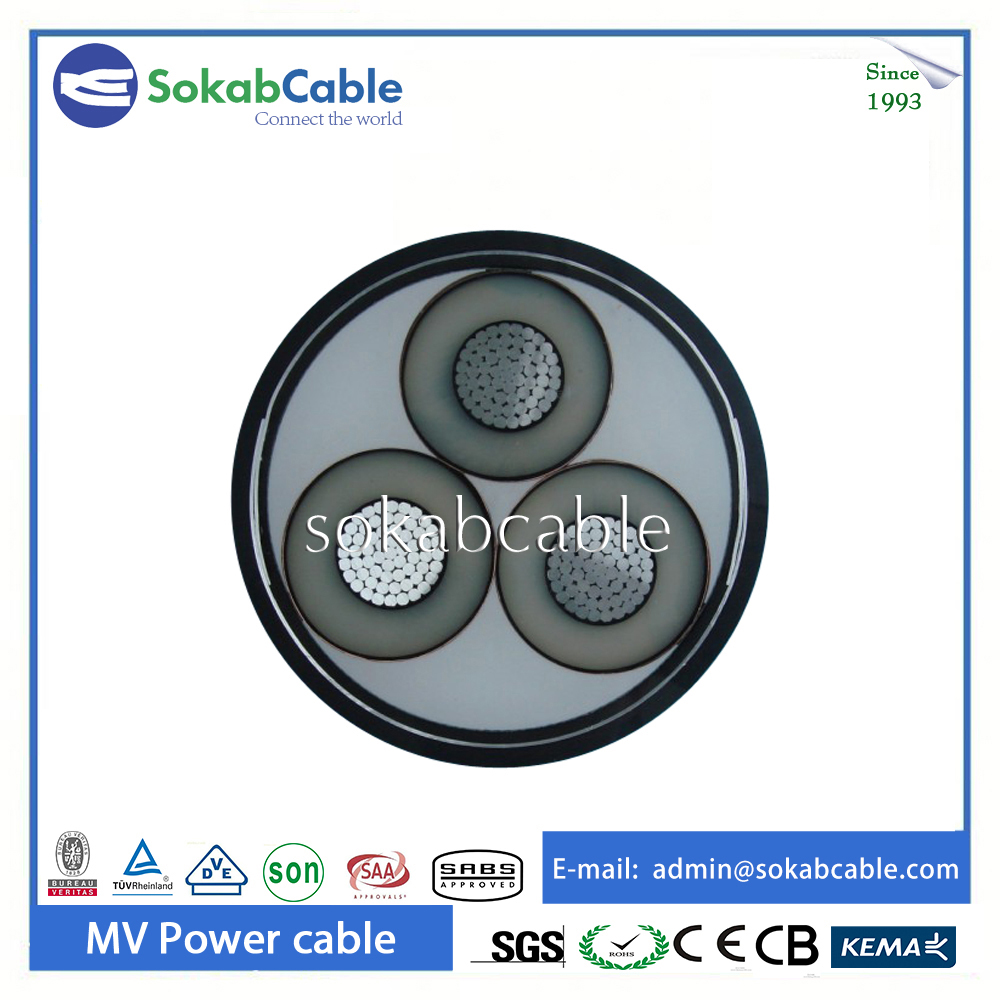

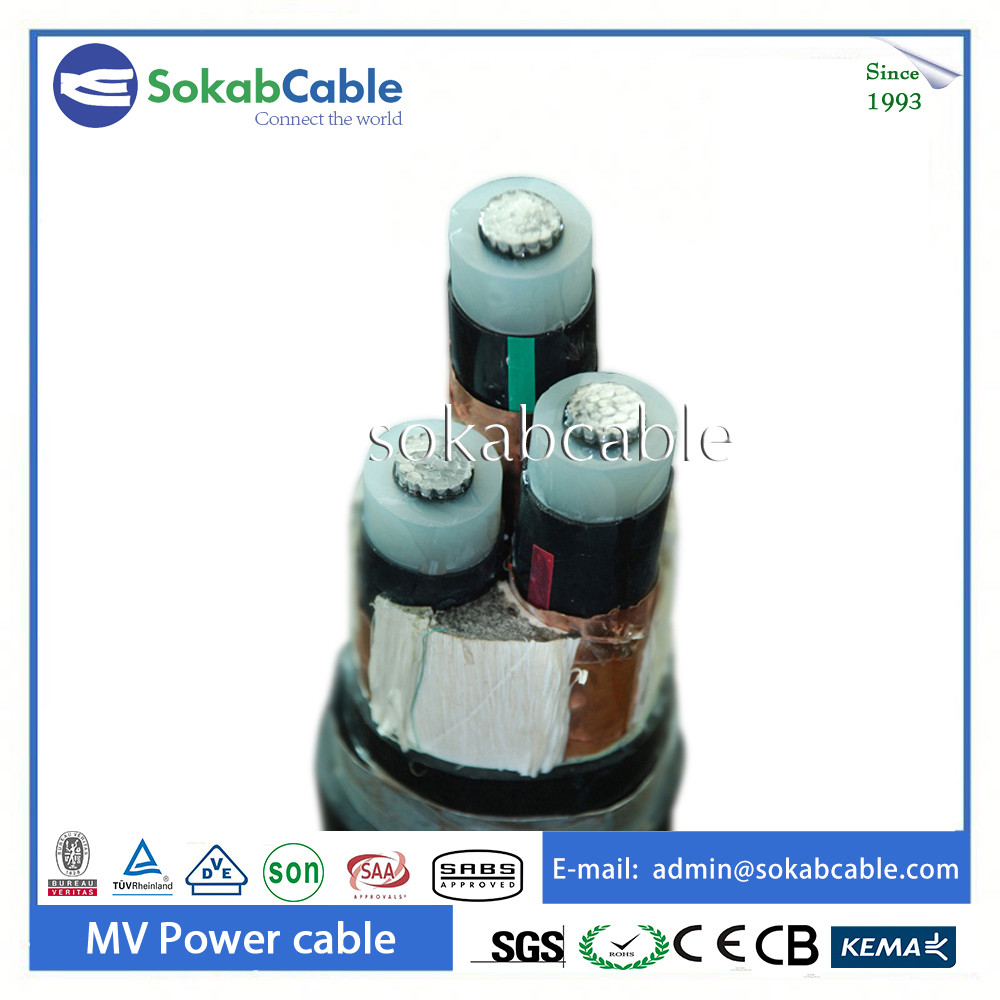

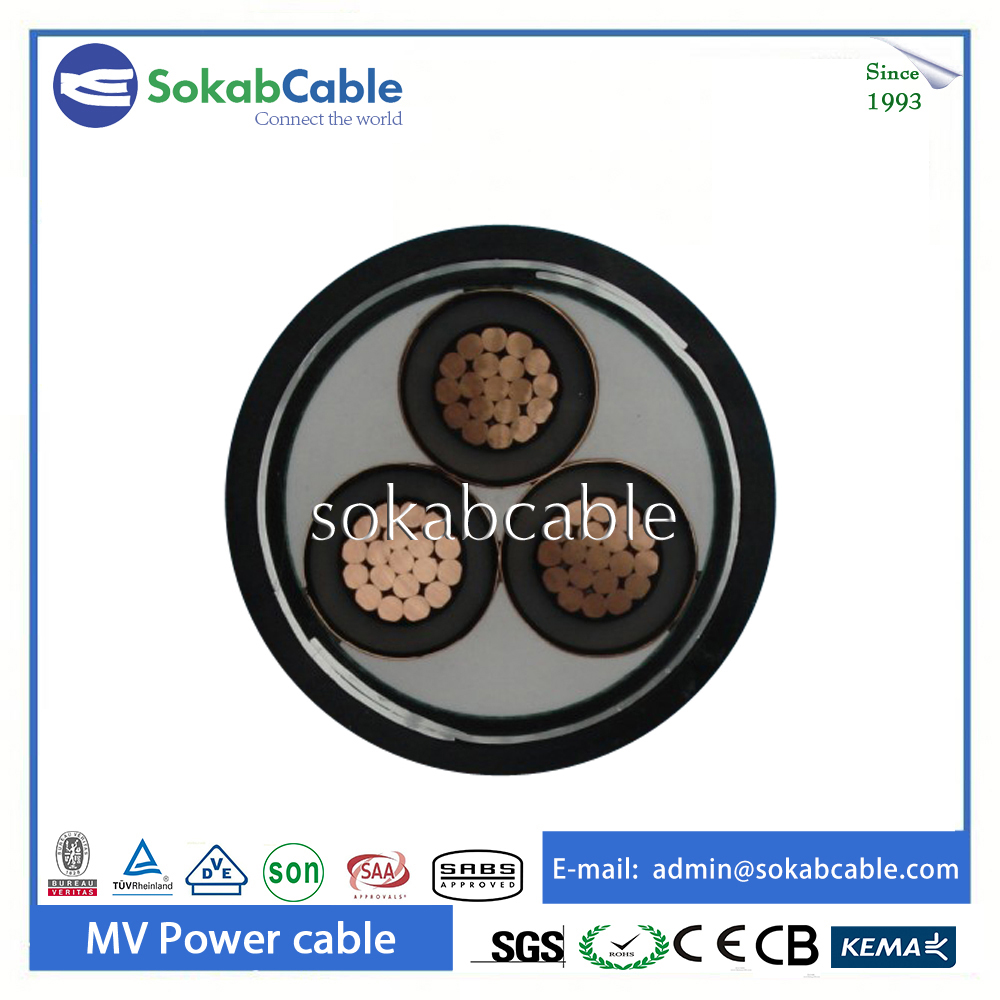

3. Construction

Copper conductor	Plain circular, compact or shaped stranded copper conductor, conform to IEC 60228, Class2
Conductor screen:	Semi-conducting compound
Insulation	XLPE( cross-linked polyethylene) rated at 90 ℃
Conductor screen	Semi-conducting compound
Metallic Screen	Copper tape
Bending	PVC or PE
Armor	Galvanized steel tape
Sheath	PVC type ST2 to IEC 60502 black.

4. Standard:

IEC 60228, IEC 60502( IEC60332-3 for flame retardant power cable only)
Standard such as: BS, DIN, as/NZS, UL upon request



5. Technical data:
Rated voltage:.6/6kv, 6/10kv, 8.7/15kv, 12/20kv, 18/30kv, 21/35kv, 26/35kv
Max. Operating Temp of Conductor: under normal 90℃, emergency ( 130℃), short circuit no more than 5s (250℃)
Min. Ambient Temperature during installation: 0℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 15x cable O.D for single core
12x cable O.D for multi core



6. Certificates:



CE, CB, RoHS, KEMA, SABS, UL, TUV, VDE, SON, SAA, SGS applied
